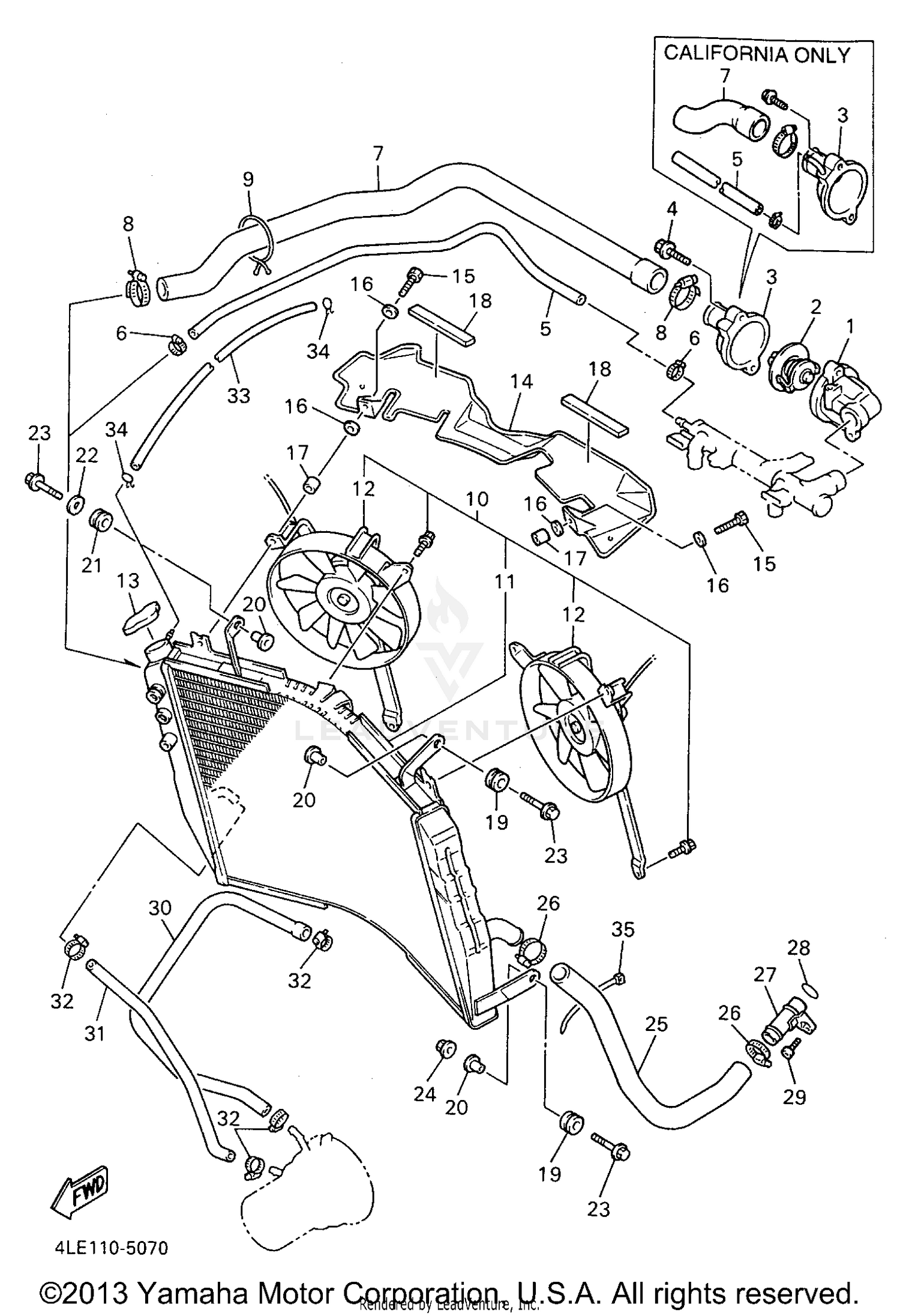

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, THERMOSTAT
3GM-12417-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#2
THERMOSTAT ASSY
4FM-12410-00-00
Superseded by 4FM-12410-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, THERMOSTAT
3GM-12413-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#
THERMOSTAT COVER ASSY
3FV-1240G-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE
90445-111F3-00
Superseded by 90445-112F1-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
HOSE
4FM-1243A-10-00
|
$14.49 | ||
|
Unavailable |
|||
|
#6
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE 1
4LE-12576-10-00
|
$240.99 | ||
|
Unavailable |
|||
|
#
HOSE 1
4FM-12576-10-00
|
$74.99 | ||
|
Unavailable |
|||
|
#8
HOSE CLAMP ASSY
90450-38040-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-44109-00
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
RADIATOR ASSEMBLY
4FM-1240A-10-00
|
$1,467.99 | ||
|
Unavailable |
|||
|
#11
RADIATOR ASSEMBLY
4FM-12461-10-00
|
$1,284.99 | ||
|
Unavailable |
|||
|
#12
BLOWER ASSEMBLY
4FM-12405-10-00
|
$531.99 | ||
|
Unavailable |
|||
|
#13
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE
4HD-12535-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#15
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06049-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-064T3-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER 1
2TV-21638-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-15363-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-07391-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-10542-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE
95707-06500-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE 4
4FM-12579-10-00
|
$54.99 | ||
|
Unavailable |
|||
|
#26
HOSE CLAMP ASSY
90450-38040-00
|
$17.49 | ||
|
Unavailable |
|||
|
#27
PIPE 4
2GH-12484-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#28
O-RING
93210-23787-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90110-06142-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE 5
4FM-12588-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#31
HOSE 6
4FM-12589-10-00
|
$23.99 | ||
|
Unavailable |
|||
|
#32
HOSE CLAMP ASSY
90450-22052-00
Superseded by 90450-22M14-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE (L675)
90445-09635-00
Superseded by 90445-090F6-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-08003-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-13355-00
|
$0.05 | ||
|
Unavailable |
|||
