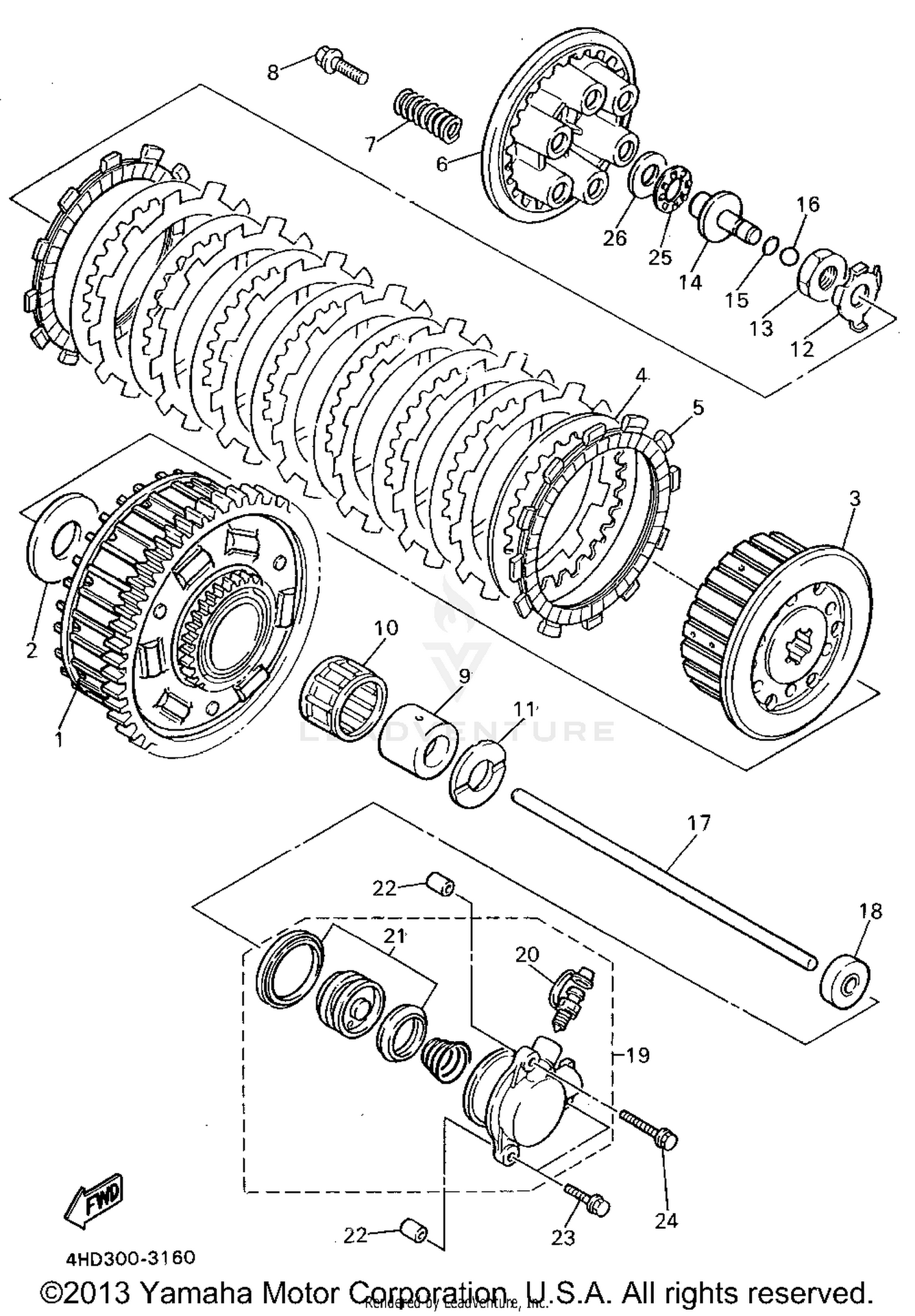

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
4FM-16150-00-00
|
$604.99 | ||
|
Unavailable |
|||
|
#2
PLATE, THRUST 1
1AE-16154-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
2GH-16371-00-00
|
$149.99 | ||
|
Unavailable |
|||
|
#4
PLATE, CLUTCH 1
3J2-16324-00-00
Superseded by 3J2-16324-10-00
|
$10.49 | ||
|
Unavailable |
|||
|
#5
PLATE, FRICTION
4FN-16321-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, PRESSURE 1
58L-16351-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-225A9-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-06123-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90560-25270-00
Superseded by 90387-25024-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93310-340N8-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, THRUST 2
1AE-16164-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, LOCK
90215-20231-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-20327-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, PUSH 1
1LJ-16356-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
1AE-16357-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93109-08061-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PUSH LEVER COMP.
1TV-16381-10-00
Superseded by 1TV-16381-12-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BLEED SCREW KIT
36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PUSH LEVER SEAL KIT
26H-W0098-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL
99510-08012-00
Superseded by 91808-12024-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95026-06030-00
Superseded by 95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95026-06090-00
Superseded by 95027-06090-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93340-21505-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-150H2-00
Superseded by 90201-150U6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
