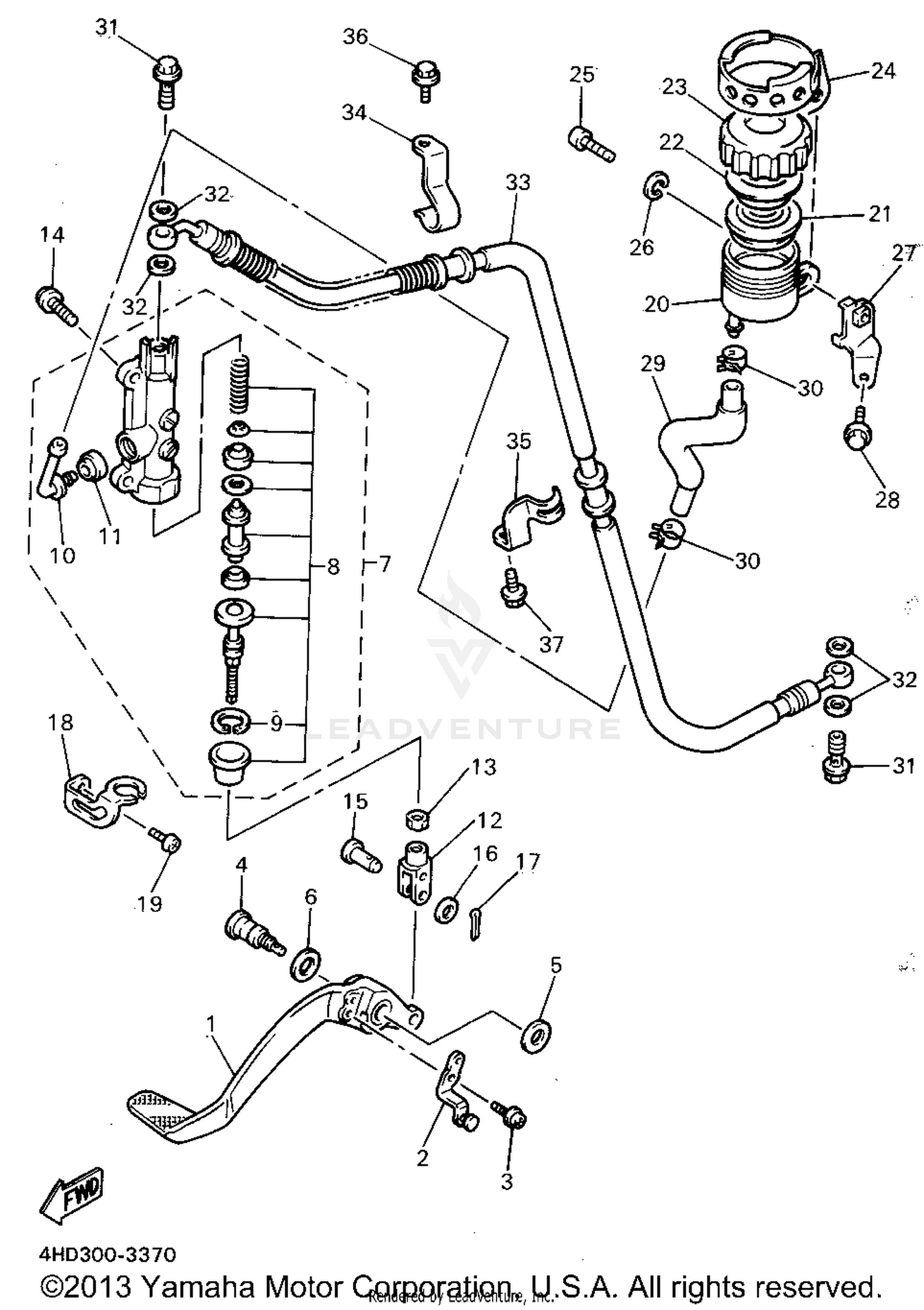

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
4FM-27211-00-00
Superseded by 4FM-27211-21-00
|
$116.99 | ||
|
Unavailable |
|||
|
#2
HOOK
4FM-27254-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#3
SCREW,PAN
90159-06045-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT
3YF-27261-00-00
Superseded by 2YK-27261-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-104R2-00
Superseded by 90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, WAVE
90206-14086-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RR. MASTER CYLINDER ASSY.
4BH-2583V-00-00
|
$188.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER KIT, MASTER
4BH-W0042-50-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
3LN-2585G-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT
4BP-2582A-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
4BP-2585F-00-00
Superseded by 4BP-2585F-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT
4FM-27222-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92011-08020-00
Superseded by 92017-08020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, CLEVIS
90240-08124-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, STOP SWITCH
4FM-2144G-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
TANK, RESERVOIR
31A-25894-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, RESERVOIR TANK
3PJ-25888-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#25
SCREW,PAN HEAD
98516-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, RESERVOIR
4FM-2133G-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, RESERVOIR
4FM-25895-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#30
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE, BRAKE
4FM-25874-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#34
HOLDER, BRAKE HOSE 1
4FM-25875-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#35
HOLDER, BRAKE HOSE 2
4FM-25876-00-00
Superseded by 4FM-25876-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
90105-06707-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
95023-06008-00
Superseded by 95024-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
