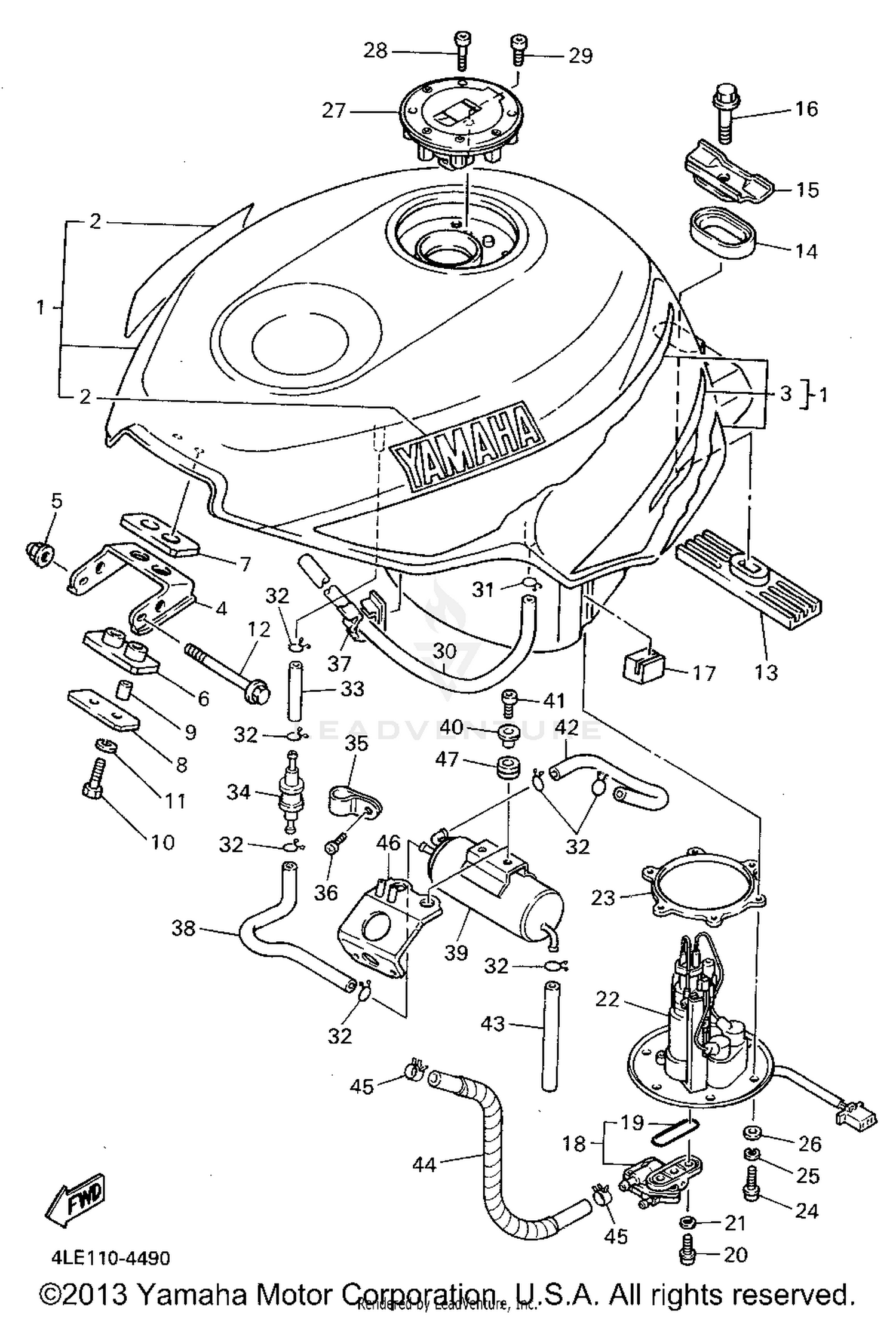

Fuel Tank California Only Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4FM-24110-70-01
|
$1,131.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
99226-00160-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRAPHIC SET
4FM-24240-01-00
|
$165.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, FUEL TANK 1
4FM-24191-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 1
2GH-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 3
2GH-24183-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
2GH-24186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06553-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95816-06075-00
Superseded by 95817-06075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 4
2GH-24184-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
4FM-24187-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 3
4JH-24183-00-00
Superseded by 4JH-24183-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#18
FUEL COCK ASSEMBLY 1
3FV-24500-01-00
Superseded by 3FV-24500-02-00
|
$252.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUEL PUMP ASSEMBLY
4FM-13910-00-00
|
$709.99 | ||
|
Unavailable |
|||
|
#23
SEAL
4FM-2414G-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP ASSY
4HN-24602-00-00
Superseded by 4HM-24602-01-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
91311-05010-00
Superseded by 91314-05010-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE
90445-102G7-00
Superseded by 90445-11M78-00
|
$8.90 | ||
|
Unavailable |
|||
|
#31
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE (L120)
90445-11763-00
Superseded by 90445-113E8-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90464-25160-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE, FUEL 1
3LK-24311-00-00
Superseded by 3LK-24311-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CANISTER ASSY
3LK-24170-00-00
|
$335.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE (L120)
90445-11701-00
Superseded by 90445-113E8-00
|
$3.40 | ||
|
Unavailable |
|||
|
#43
HOSE (L100)
90445-11587-00
Superseded by 90445-11293-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE
3FV-14294-02-00
|
$33.99 | ||
|
Unavailable |
|||
|
#45
CLIP
90467-13123-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
STAY
4LE-14413-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#47
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
