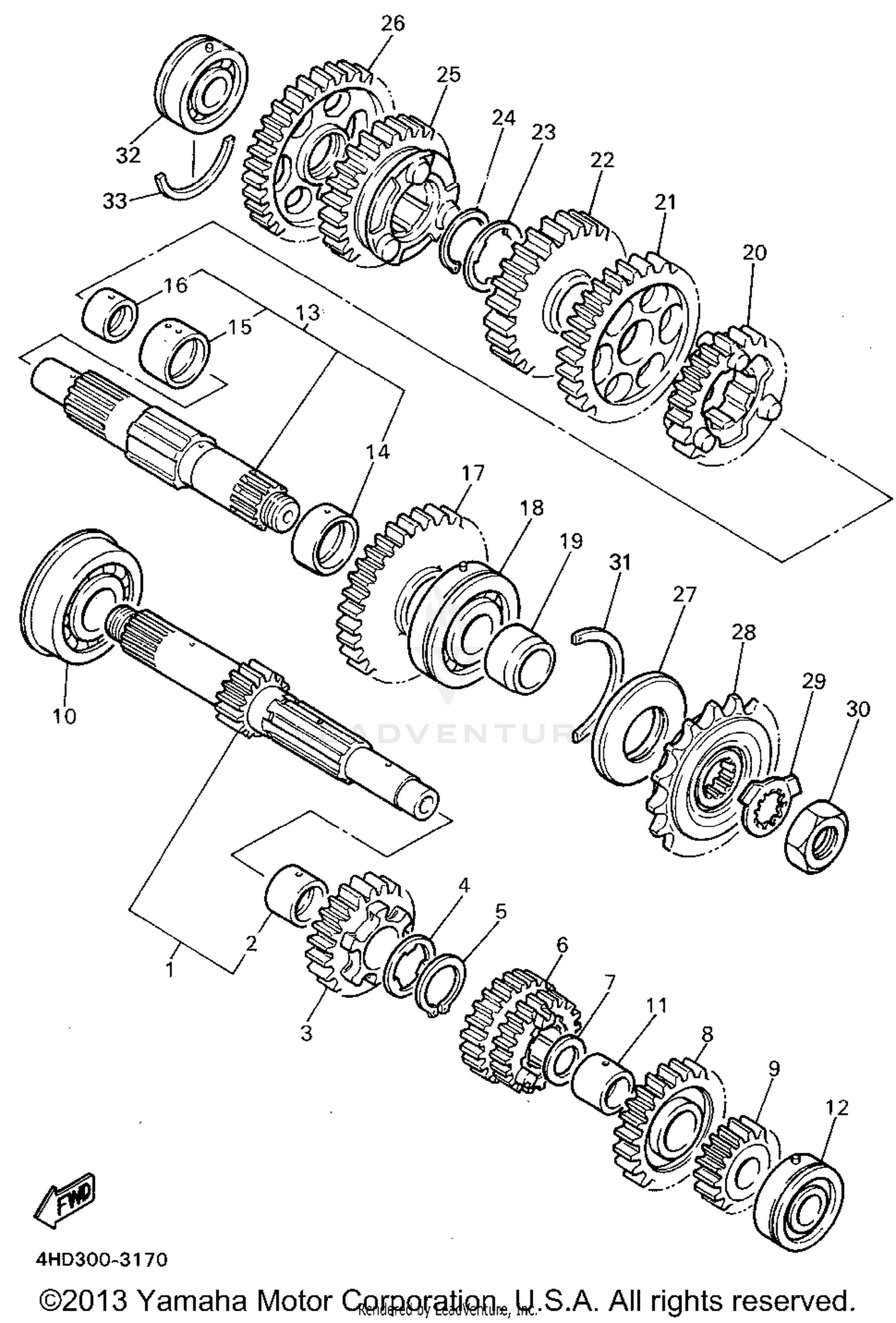

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSEMBLY
4FM-W1741-00-00
|
$297.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-253M6-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION
4FM-17151-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#4
WASHER
90209-22191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION
4FM-17131-00-00
|
$158.99 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-200K3-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 6TH PINION
4FM-17161-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#9
GEAR, 2ND PINION (17T)
3FV-17121-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#10
BEARING
93306-30560-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-203M7-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-20455-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRIVE AXLE ASSEMBLY
3FV-W1742-00-00
|
$350.99 | ||
|
Unavailable |
|||
|
#14
COLLAR
90387-263M8-00
|
$21.99 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-284M0-00
|
$10.99 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-204M1-00
|
$13.49 | ||
|
Unavailable |
|||
|
#17
GEAR, 2ND WHEEL
4FM-17221-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#18
BEARING
93305-30501-00
|
$85.99 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-255V9-00
|
$20.99 | ||
|
Unavailable |
|||
|
#20
GEAR, 6TH WHEEL
4FM-17261-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#21
GEAR, 3RD WHEEL
4FM-17231-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#22
GEAR, 4TH WHEEL
4FM-17241-00-00
|
$161.99 | ||
|
Unavailable |
|||
|
#23
WASHER
90209-25196-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
93440-28062-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 5TH WHEEL
4FM-17251-00-00
|
$206.99 | ||
|
Unavailable |
|||
|
#26
GEAR, 1ST WHEEL
4FM-17211-00-00
|
$106.07 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93102-35423-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET, DRIVE 16T (2GH1746160
2GH-17460-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, LOCK
90179-18020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP 1
278-17424-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING
93306-20455-00
|
$42.99 | ||
|
Unavailable |
|||
|
#33
CIRCLIP
93440-45144-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
