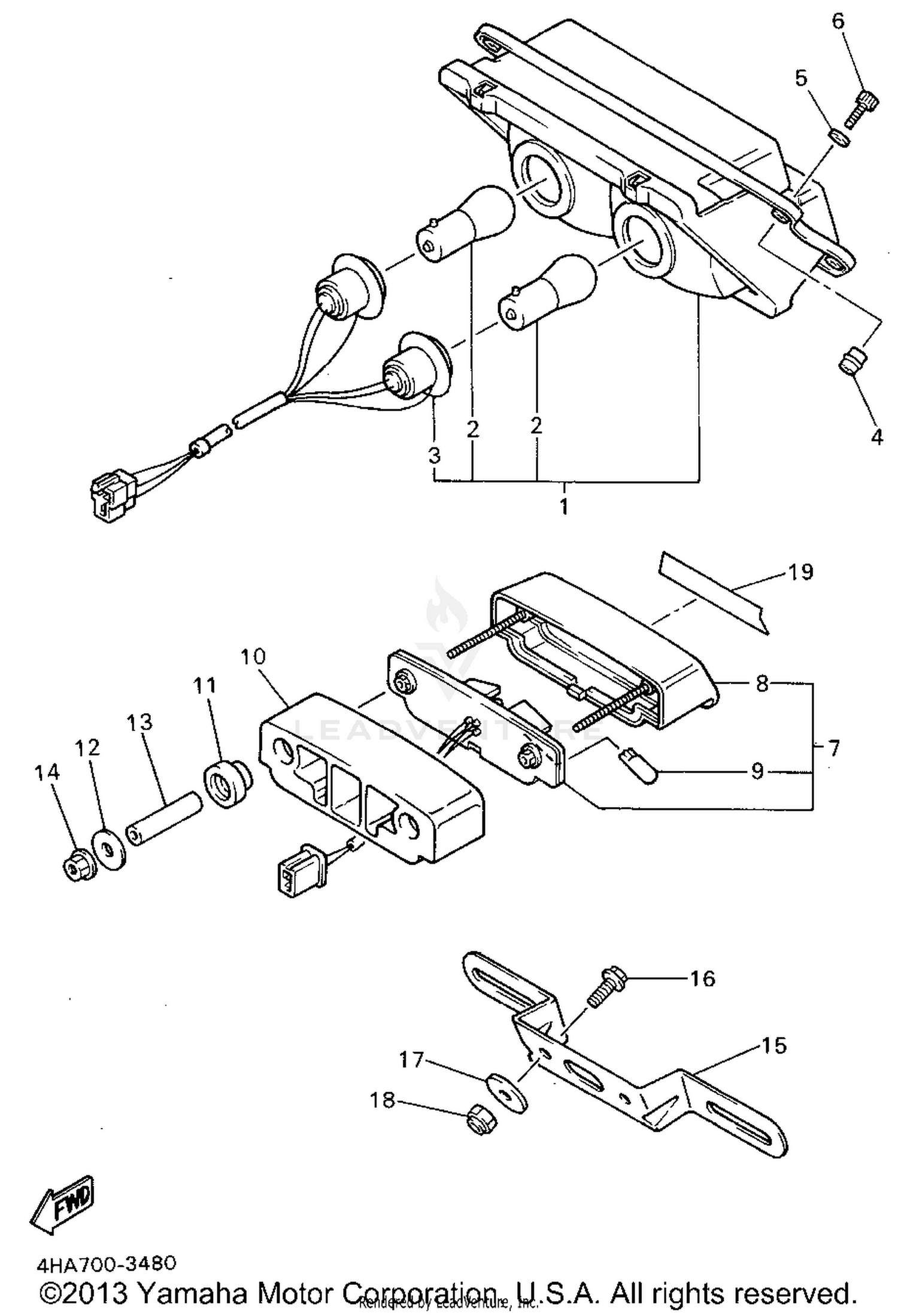

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
4FM-84710-10-00
|
$173.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-21/5W)
31L-84714-00-00
Superseded by 1A2-84714-50-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CORD ASSEMBLY
4FM-84735-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#4
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LICENCE LIGHT UNIT ASSEMBLY
4FM-84745-10-00
|
$402.99 | ||
|
Unavailable |
|||
|
#8
BODY, LICENCE LIGHT
4FM-84749-10-00
|
$164.99 | ||
|
Unavailable |
|||
|
#9
BULB, METER 12V 3.8W
3F9-84744-00-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT, BASE
4FM-84742-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#11
DAMPER
3F9-84553-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-05033-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-0601Y-00
|
$4.50 | ||
|
Unavailable |
|||
|
#14
NUT, FLANGE
95706-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, LICENSE
4FM-84751-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95026-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
EMBLEM, YAMAHA
99236-00080-00
Superseded by 99246-00080-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
