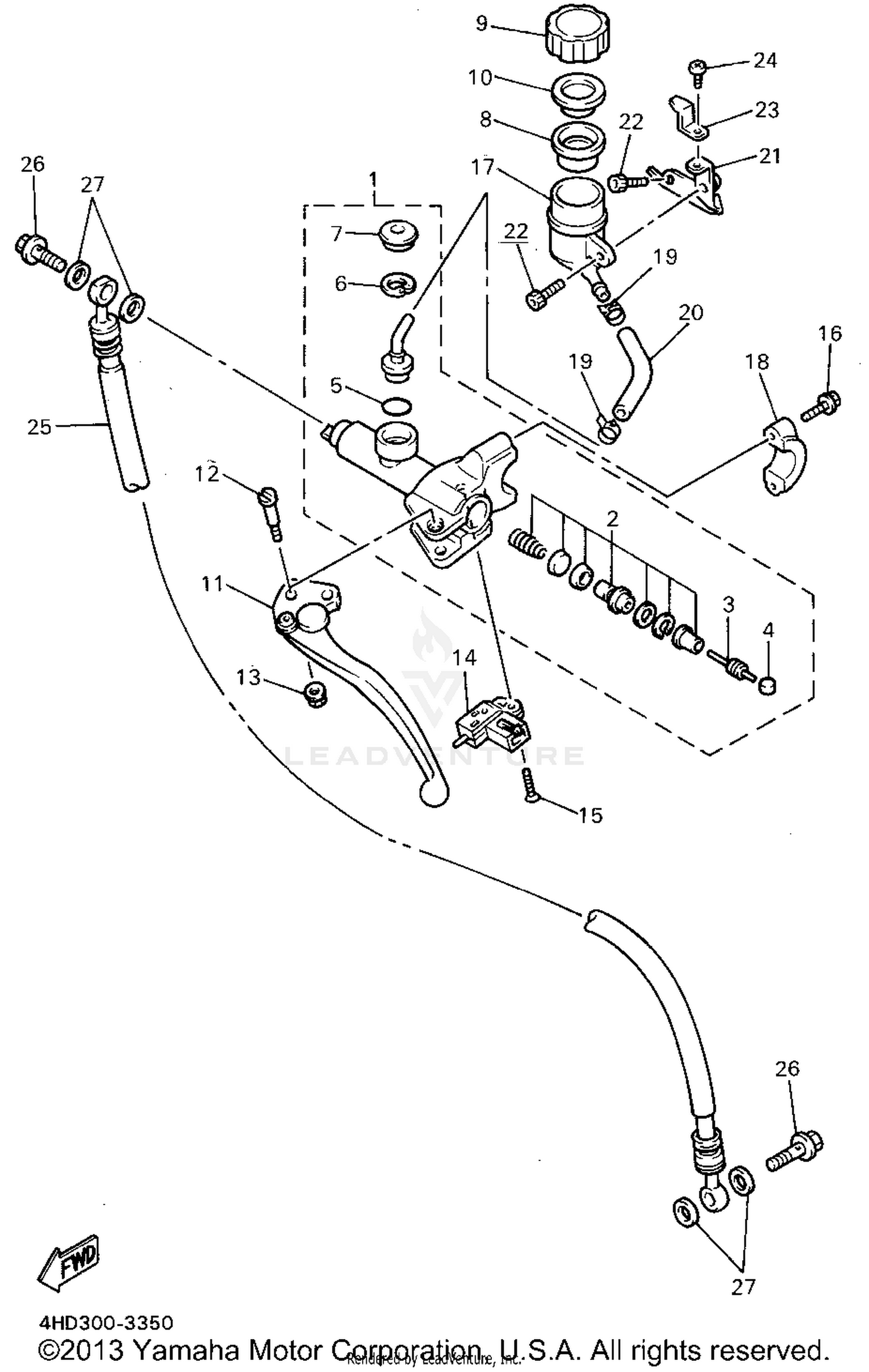

Front Master Cylinder 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSEMBLY
4FM-W2645-00-00
|
$259.93 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER (CLUTCH
3GM-W0099-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROD, PUSH
3GM-26464-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH
3GM-26455-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
2VN-25866-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, DUST
3FV-2589A-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, DIAPHRAGM
3GK-25854-50-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RESERVOIR
4FM-25852-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, DIAPHRAGM
3GK-25855-50-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER 1
4FM-83912-00-00
Superseded by 4FM-83912-01-00
|
$93.99 | ||
|
Unavailable |
|||
|
#12
BOLT, LEVER
3FV-2589F-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE
95706-06500-00
Superseded by 95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH
3GM-83980-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, FLAT HEAD
98706-04016-00
Superseded by 98707-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
TANK, RESERVOIR
4FM-25894-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, PIPE 1
3PA-24356-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
4FM-2585F-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#21
BRACKET
4FM-26296-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#22
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER
4FM-26475-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98506-04008-00
Superseded by 98507-04008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE, CLUTCH
2GH-26470-01-00
Superseded by 3GM-26470-A1-00
|
$102.99 | ||
|
Unavailable |
|||
|
#26
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
