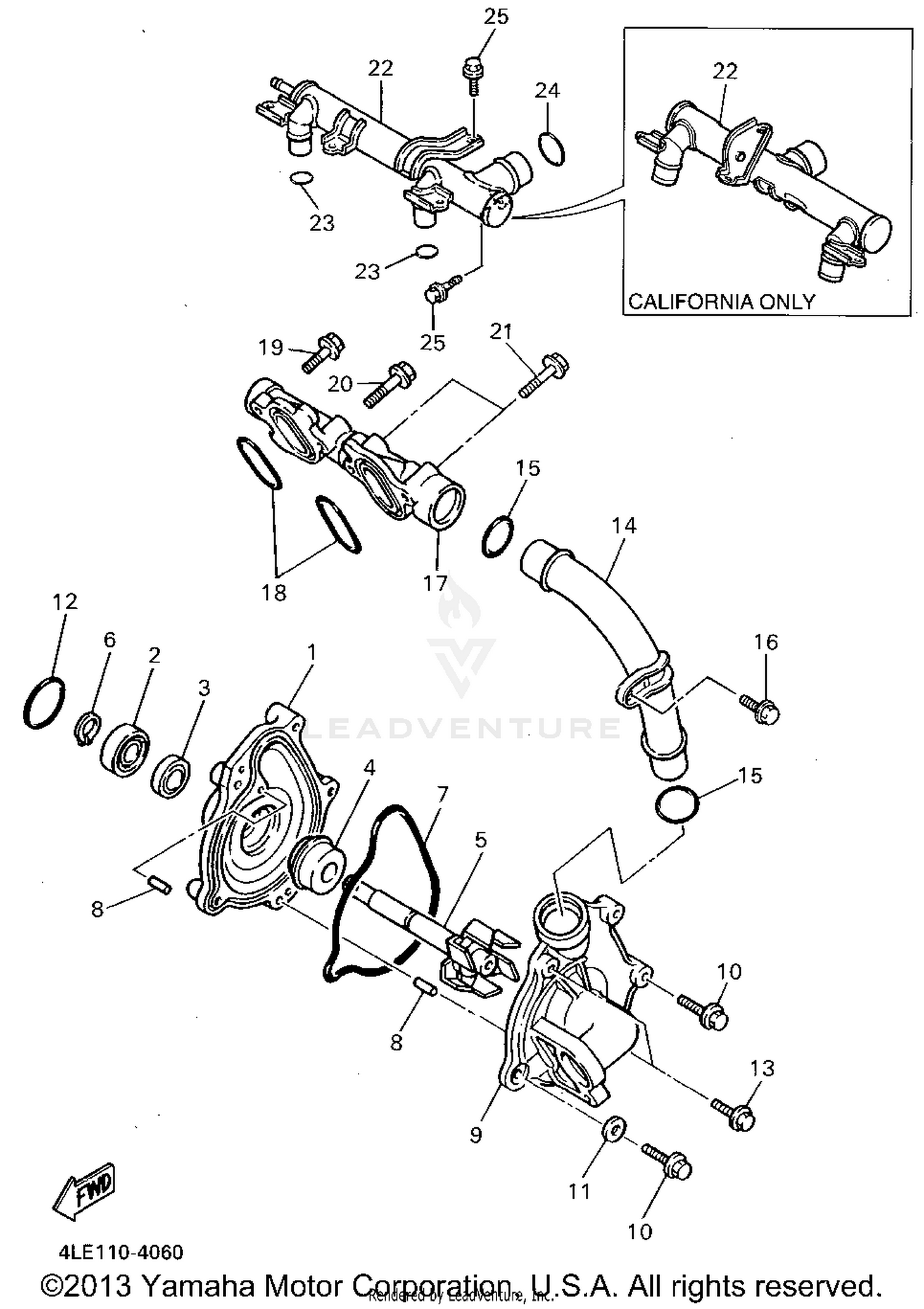

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, WATER PUMP
1UF-12421-09-00
|
$171.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93101-12060-00
Superseded by 93101-12173-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
11H-12438-00-00
Superseded by 11H-12438-10-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSEMBLY
1UF-12450-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
1AE-12439-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93604-10011-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HOUSING
3GM-12422-00-00
|
$147.99 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95023-06025-00
Superseded by 95024-06025-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-33133-00
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95021-06050-00
Superseded by 95027-06050-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE 1
1AE-12481-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-23787-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (SMALL HEAD)
95023-06012-00
Superseded by 95024-06012-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT 1
3FV-12469-00-00
|
$529.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-30694-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLG.(SMALL HEAD)
95023-06020-00
Superseded by 95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (SMALL HEAD)
95023-06030-00
Superseded by 95024-06030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (SMALL HEAD)
95023-06040-00
Superseded by 95024-06040-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 2
4FN-12482-00-00
|
$508.99 | ||
|
Unavailable |
|||
|
#
PIPE 2
3GM-12482-00-00
|
$261.99 | ||
|
Unavailable |
|||
|
#23
O-RING
93210-18417-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-23787-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (SMALL HEAD)
95023-06010-00
Superseded by 95024-06010-00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
