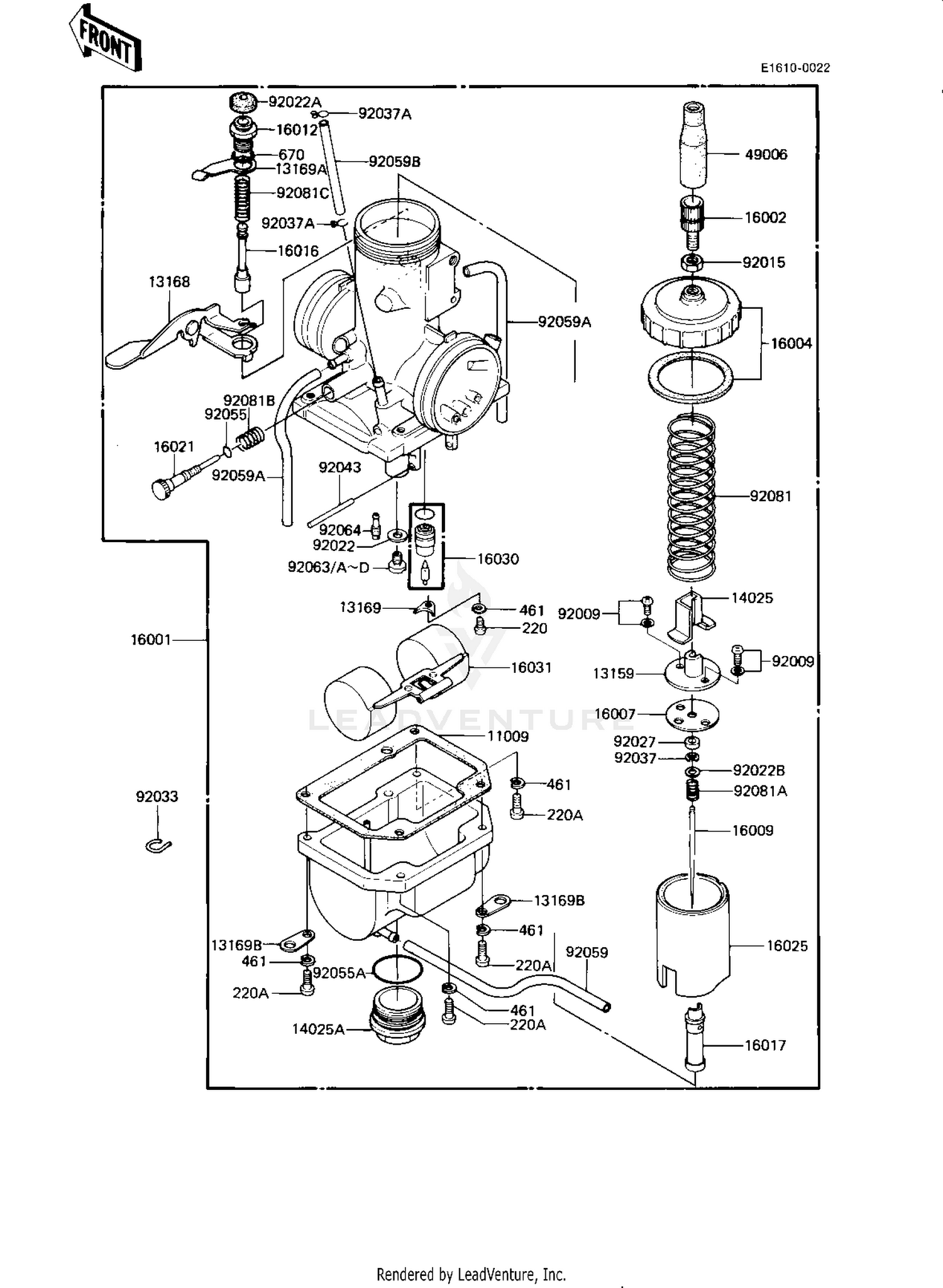

Carburetor ('82-'83 Ke175-d4/d5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET
11009-1178
Superseded by 11060-1610
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,THROTTLE
13159-1010
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,STARTER PLUNGER
16063-004
|
$30.69 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE, LOCK
13169-1190
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#13169A
SPRING PLATE,STARTER
13169-1224
|
$15.03 | ||
|
Available to order. Add to View Price |
|||
|
#13169B
PLATE,TUBE
13169-1226
Superseded by 13169-1951
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,THROTTLE VALVE
14025-1197
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,FLOAT CHAMBER
14025-1198
|
$14.63 | ||
|
Available to order. Add to View Price |
|||
|
#16001
CARBURETOR
16001-1266
|
$240.13 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER,CABLE
16002-014
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#16004
CAP-MIXING CHAMBER
16004-018
|
$25.58 | ||
|
Available to order. Add to View Price |
|||
|
#16007
PLATE,THROTTLE VALVE
16007-1011
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#16009
JET NEEDLE, 5CT34
16009-1053
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP,STARTER PLUNGER
16012-019
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1011
|
$28.51 | ||
|
Available to order. Add to View Price |
|||
|
#16017
NEEDLE JET.0-6
16017-1050
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW,THROTTLE ADJST
16021-1012
|
$18.29 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE,THROTTLE CA2.0
16025-1043
|
$58.13 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE ASSY,FLOAT
16030-1011
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1011
|
$55.51 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CARBURETOR
49006-1169
|
$37.24 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,PAN HEAD,3X14
16033-031
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,ADJUST LOCK
16003-006
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER MAIN JET
16034-001
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
CAP,RUBBER,STARTER PLUNGE
16039-015
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,THROTTLE VALVE
92022-1024
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#92027
RING,JET NEEDLE
92027-1103
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92036-018
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CIRCLIP
16008-010
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
16032-003
Superseded by 16032-008
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-044
|
$10.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
0 RING,PILOT SCREW
92055-1078
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,SWITH VALVE,CLNR
92059-1078
|
$16.43 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,3X5X100
92059-1116
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
PIPE,FUEL
92059-130
|
$23.61 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,#A97.5R
92063-1035
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
MAIN JET,#A100
92063-1033
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
MAIN JET,#A105R
92063-1042
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN NO 107.5R
92063-073
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
MAIN JET,#A102.5
92063-1028
|
$17.11 | ||
|
Available to order. Add to View Price |
|||
|
#92064
PILOT JET,#22.5
92064-1026
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,THROTTLE VALVE
16006-023
|
$14.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,JET NEEDLE
92081-1072
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,THROTTLE ADJUST
92081-1152
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING,STRTR PLUNGER
92081-1181
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220B0416
Superseded by 220AA0416
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,9MM
670B1509
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
