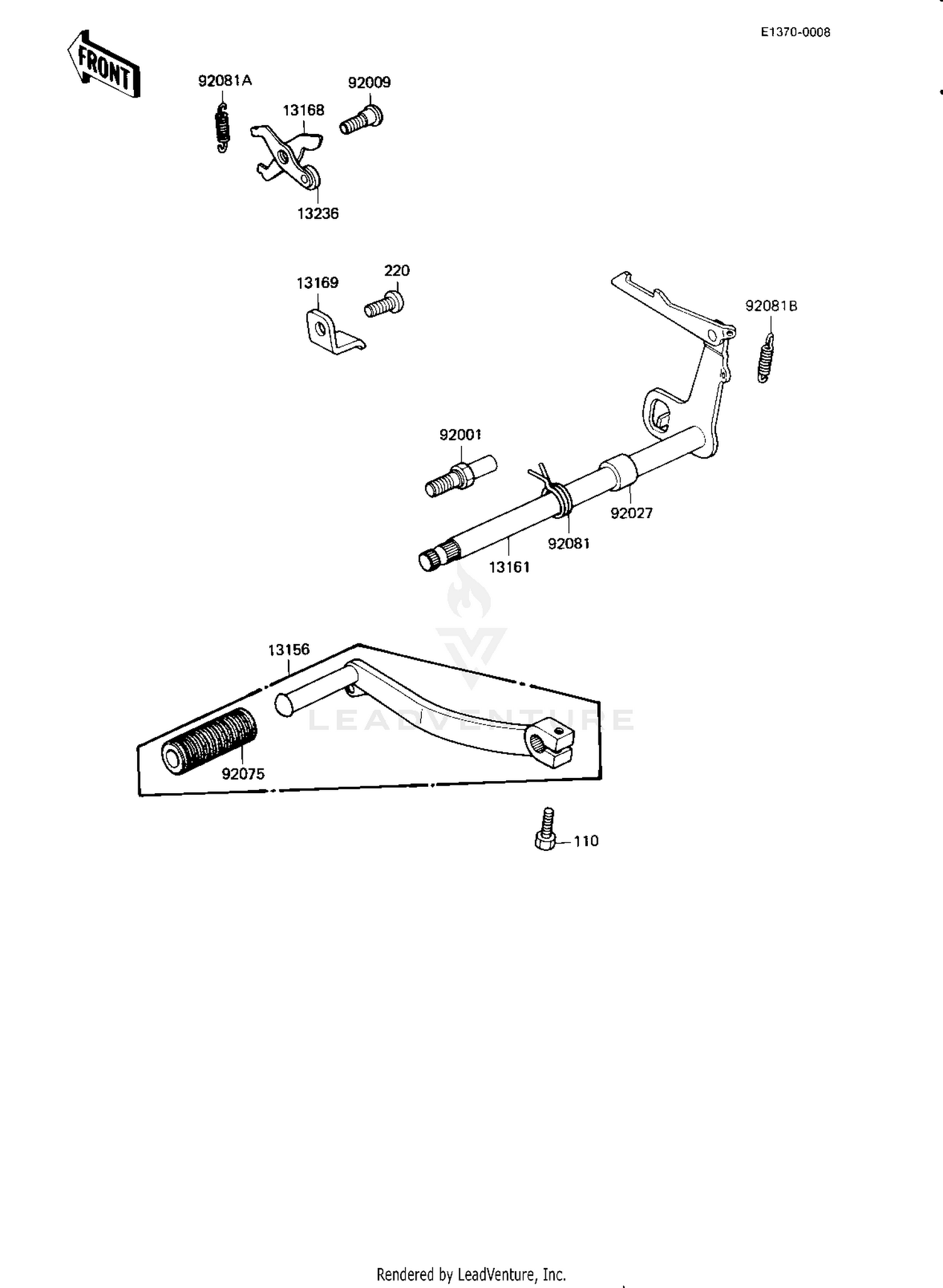

Gear Change Mechanism ('82-'83 Ke175-d4/ Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13156
LEVER-ASSY-CHANGE,PED
13242-1273
|
$58.50 | ||
|
Available to order. Add to View Price |
|||
|
#13161
LEVER ASSY,GEAR CHANG
13161-1017
|
$65.41 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,GEAR SET
13168-1058
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,GEAR CHANGE
13169-1253
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER,NEUTRAL
13236-1004
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW-PAN HEAD
92011-023
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-189
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,TENSION
92081-1129
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,CHANGE LEVER
92081-1237
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,GEAR CHANGE
92081-156
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
