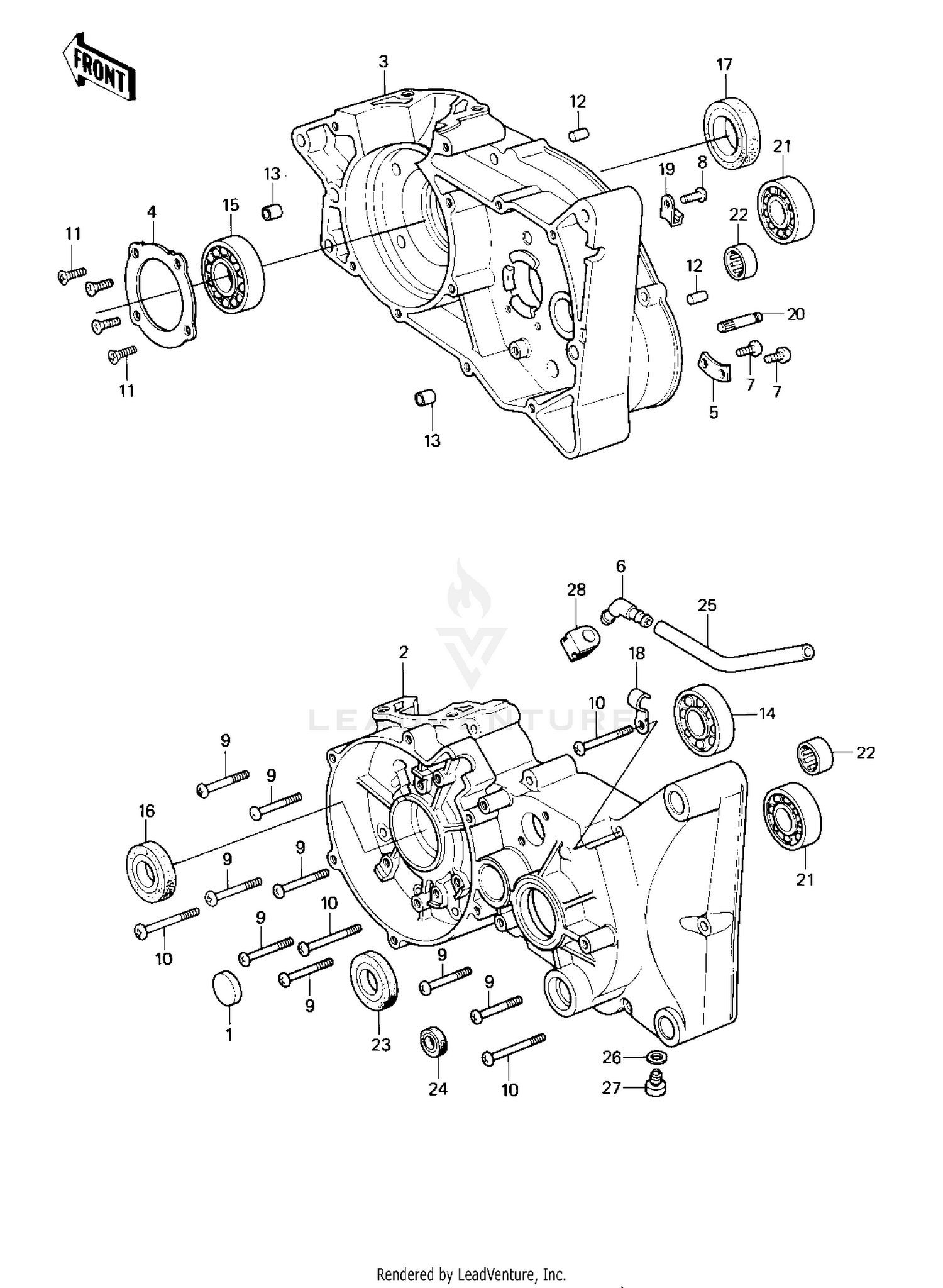

Crankcase ('80-'81 Ke175-d2/d3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP,DRIVE SHAFT SEAL
11012-1040
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANKCASE,L.H,F.BLACK
14002-1023
|
$354.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE,R.H,F.BLACK
14002-1079
|
$354.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER-CRANK BEARING
14014-021
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER-MISSION BERNG
14014-022
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
BREATHER
14069-1001
Superseded by 14069-1062
|
$23.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-PAN HEAD,6X60
220B0660
Superseded by 220AA0660
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-CSK-CROS,6X16
221B0616
Superseded by 221AA0616
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN DOWEL 8X16
551A0816
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN,DOWEL,6.5X10X12
552B1012
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING-BALL,#6305C3
601B6305
|
$24.86 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL-OIL
92049-1250
Superseded by 92049-1482
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL TB32457
653B324507
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP CABLE
92037-016
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP,OIL PIPE
92037-157
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN,KICK SPRING
92043-117
|
$8.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING-BALL,6204C3
92045-1046
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING-NEEDLE
92046-026
|
$23.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL-OIL
92050-039
Superseded by 92049-1479
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE-BREATHER
92059-061
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG,DRAIN,10X12
92067-001
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET,BREATHER
92071-042
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
