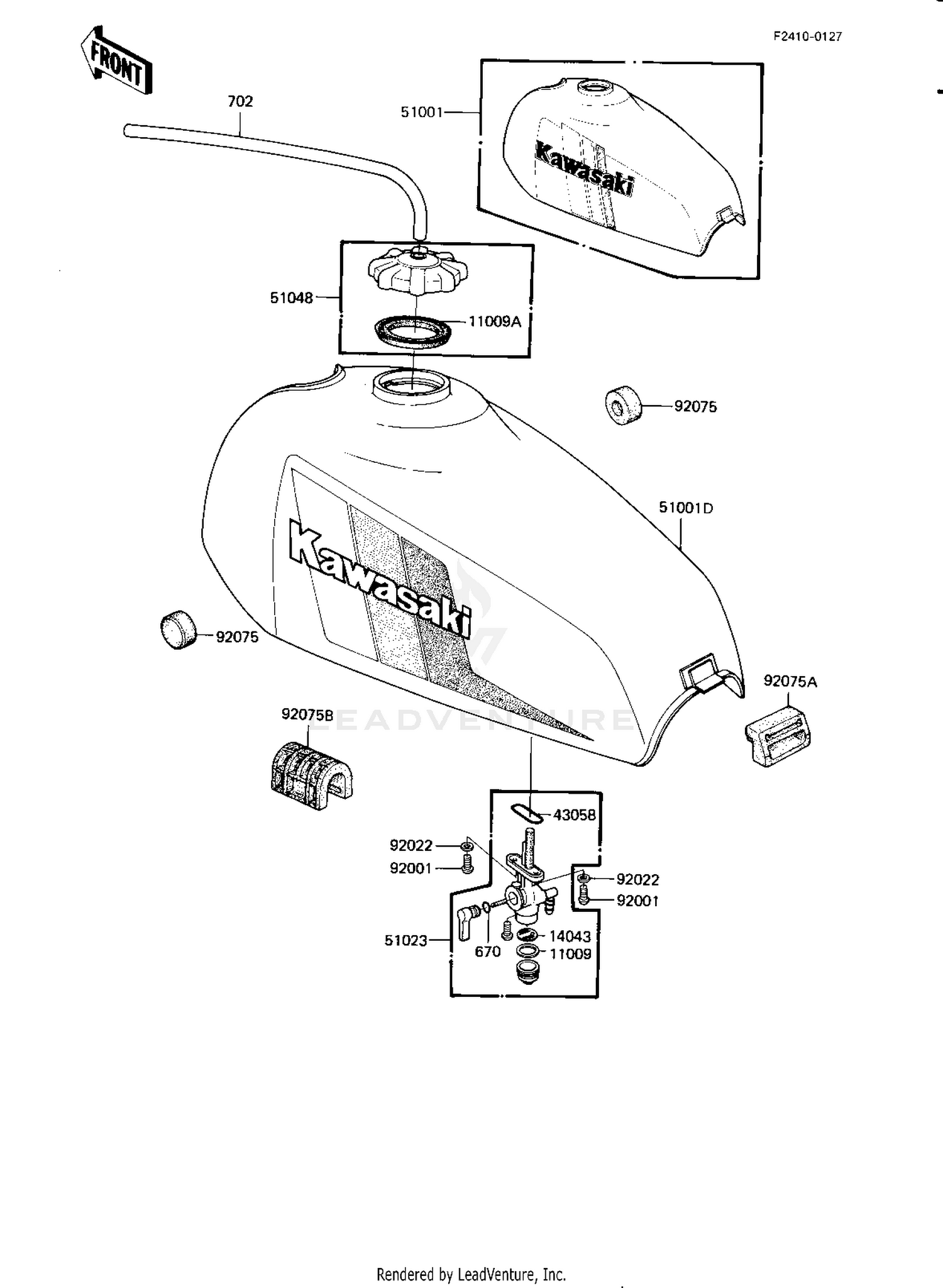

Fuel Tank ('82-'83 Ke175-d4/d5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FUEL TAP CUP
11009-1013
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FUEL TANK CAP
51059-006
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#14043
STRINER,FUEL TAP
14043-1002
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#43058
O RING
51039-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#51001
TANK-FUEL,F.RED
51001-1013-B1
|
$373.97 | ||
|
Available to order. Add to View Price |
|||
|
#51001D
TANK-COMP-FUEL,EBONY (Canada)
51001-5213-H8
|
|||
|
Unavailable |
|||
|
#51023
TAP ASSY,FUEL
51023-1020
|
$61.15 | ||
|
Available to order. Add to View Price |
|||
|
#51048
CAP ASSY,TANK,FUEL
51048-1004
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,FUEL TANK
92075-101
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,FUEL TANK,REAR
92075-1074
|
$9.73 | ||
|
Unavailable |
|||
|
#92075B
DAMPER RUBBER
92075-284
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,10MM
670B2010
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE,5X1430
702A051430
|
$28.01 | ||
|
Available to order. Add to View Price |
|||
