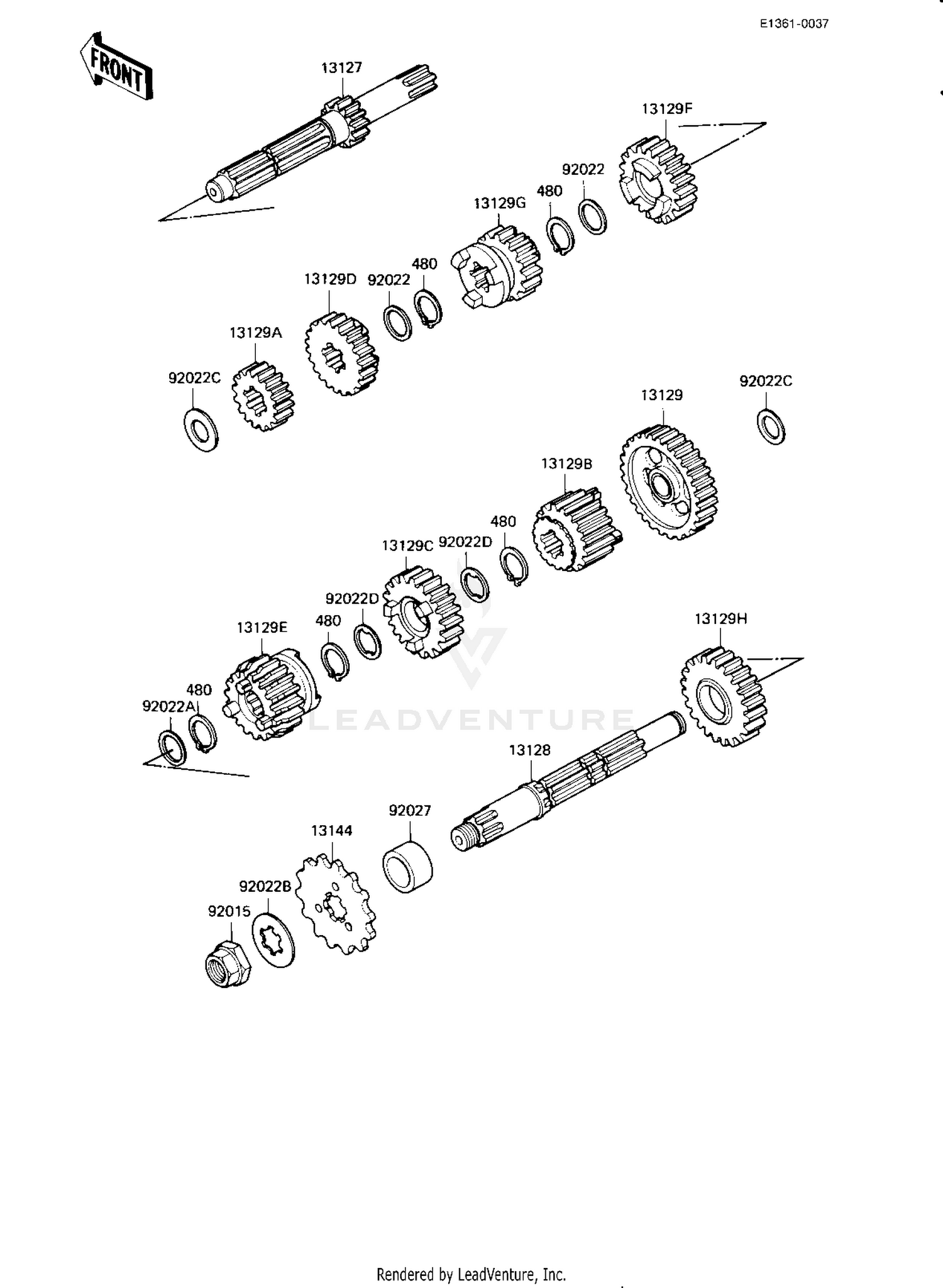

Transmission ('82-'83 Ke175-d4/d5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13127
SHAFT,DRIVE,12T
13127-1006
|
$114.44 | ||
|
Available to order. Add to View Price |
|||
|
#13128
SHAFT,OUTPUT
13128-1008
|
$177.77 | ||
|
Available to order. Add to View Price |
|||
|
#13129
LOW GEAR,OUTPUT SHAFT
13129-051
|
$69.17 | ||
|
Available to order. Add to View Price |
|||
|
#13129A
2ND GEAR,DRIVE,17T
13129-1075
|
$91.00 | ||
|
Available to order. Add to View Price |
|||
|
#13129B
TOP GEAR,DRIVEN,20T
13129-1134
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#13129C
3RD GEAR,DRIVEN,22T
13129-1142
|
$77.16 | ||
|
Available to order. Add to View Price |
|||
|
#13129D
4TH GEAR,DRIVE,20T
13129-1143
|
$77.16 | ||
|
Available to order. Add to View Price |
|||
|
#13129E
4TH GEAR,DRIVEN,19T
13129-1144
|
$95.08 | ||
|
Available to order. Add to View Price |
|||
|
#13129F
TOP GEAR,DRIVE,25T
13129-1145
|
$41.50 | ||
|
Available to order. Add to View Price |
|||
|
#13129G
3RD GEAR,DRIVE,18T
13129-1212
|
$123.37 | ||
|
Available to order. Add to View Price |
|||
|
#13129H
2ND GEAR OUTPUT 28T
13129-1278
|
$65.14 | ||
|
Available to order. Add to View Price |
|||
|
#13144
SPROCKET-OUTPUT,14T
13144-1058
|
$36.30 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,14M/M
92015-1062
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER 22MM
92022-106
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,22X28X2
92022-1087
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,SPLINE
92022-1113
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER-THRUST
92022-170
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92022D
WASHER-LOCK
92024-031
|
$6.21 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,20X30X15
92027-1083
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP,21MM
480J2100
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
