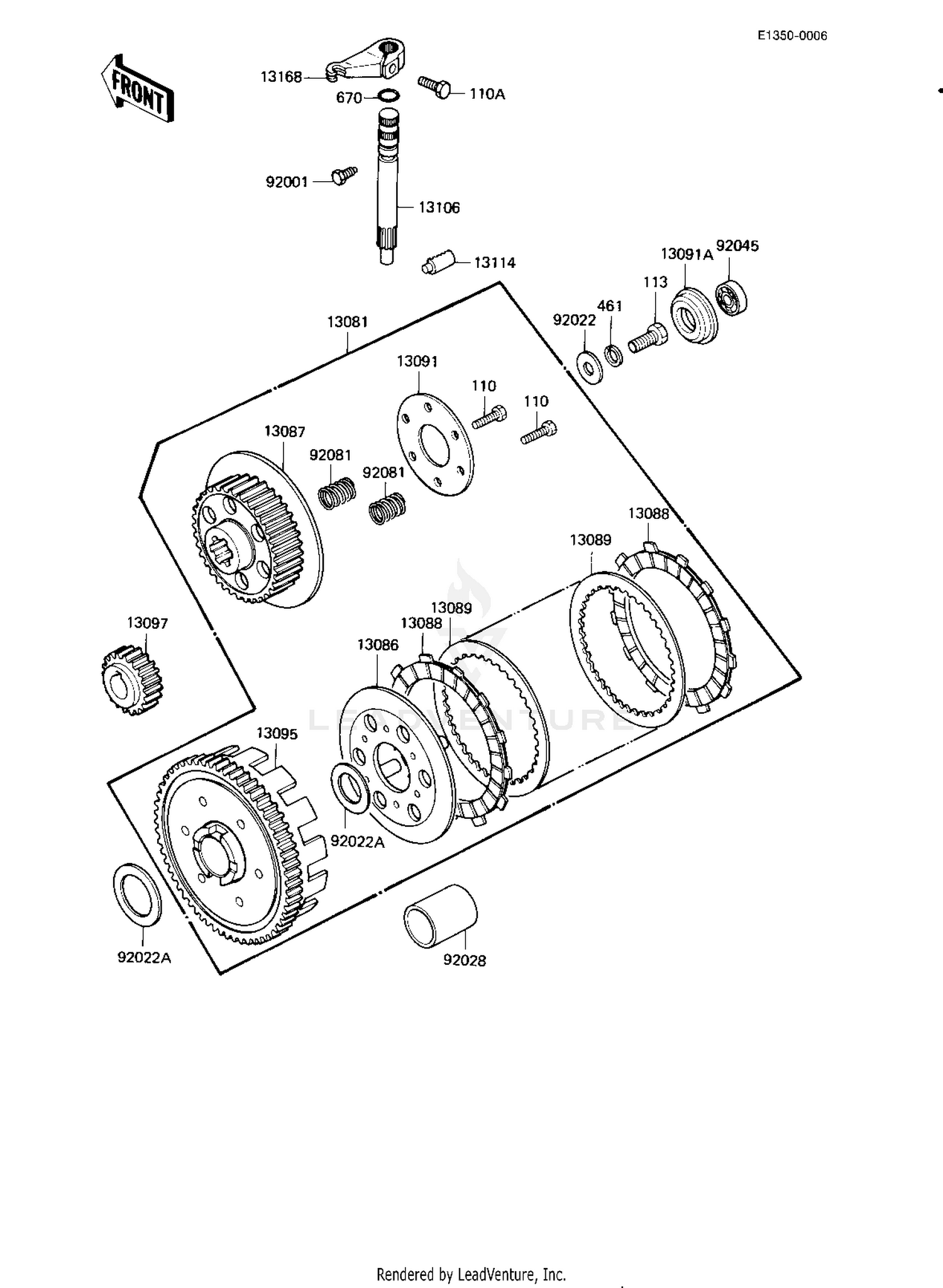

Clutch ('82-'83 Ke175-d4/d5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1050
|
$242.04 | ||
|
Available to order. Add to View Price |
|||
|
#13086
WHEEL,CLUTCH
13086-017
|
$39.55 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB,CLUTCH
13087-041
|
$61.02 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1015
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE CLUTCH STEEL
13089-003
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,CLUTCH SPRING
13091-1017
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#13091A
HOLDER,CLUTCH PUSHER
13091-1136
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1024
|
$404.93 | ||
|
Available to order. Add to View Price |
|||
|
#13097
GEAR,PRIMARY,24T
13097-1006
|
$123.72 | ||
|
Available to order. Add to View Price |
|||
|
#13106
SHAFT,CLUTCH RELEASE
13106-1002
|
$46.72 | ||
|
Available to order. Add to View Price |
|||
|
#13114
PUSHER-CLUTCH
13114-1009
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,CLUTCH RELEASE
13168-1023
|
$33.07 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,CLUTCH RELEASE
92003-130
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.2X28X2
92022-1088
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,20.5X34X1.4
92022-168
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSH-CLUTCH
92028-014
|
$20.85 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,627
92045-026
Superseded by 92045-1236
|
$19.26 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-1174
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET,5X20
110G0520
Superseded by 112BA0520
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#113
BOLT,HEX HEAD,10X22
113G1022
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,9MM
670B1509
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
