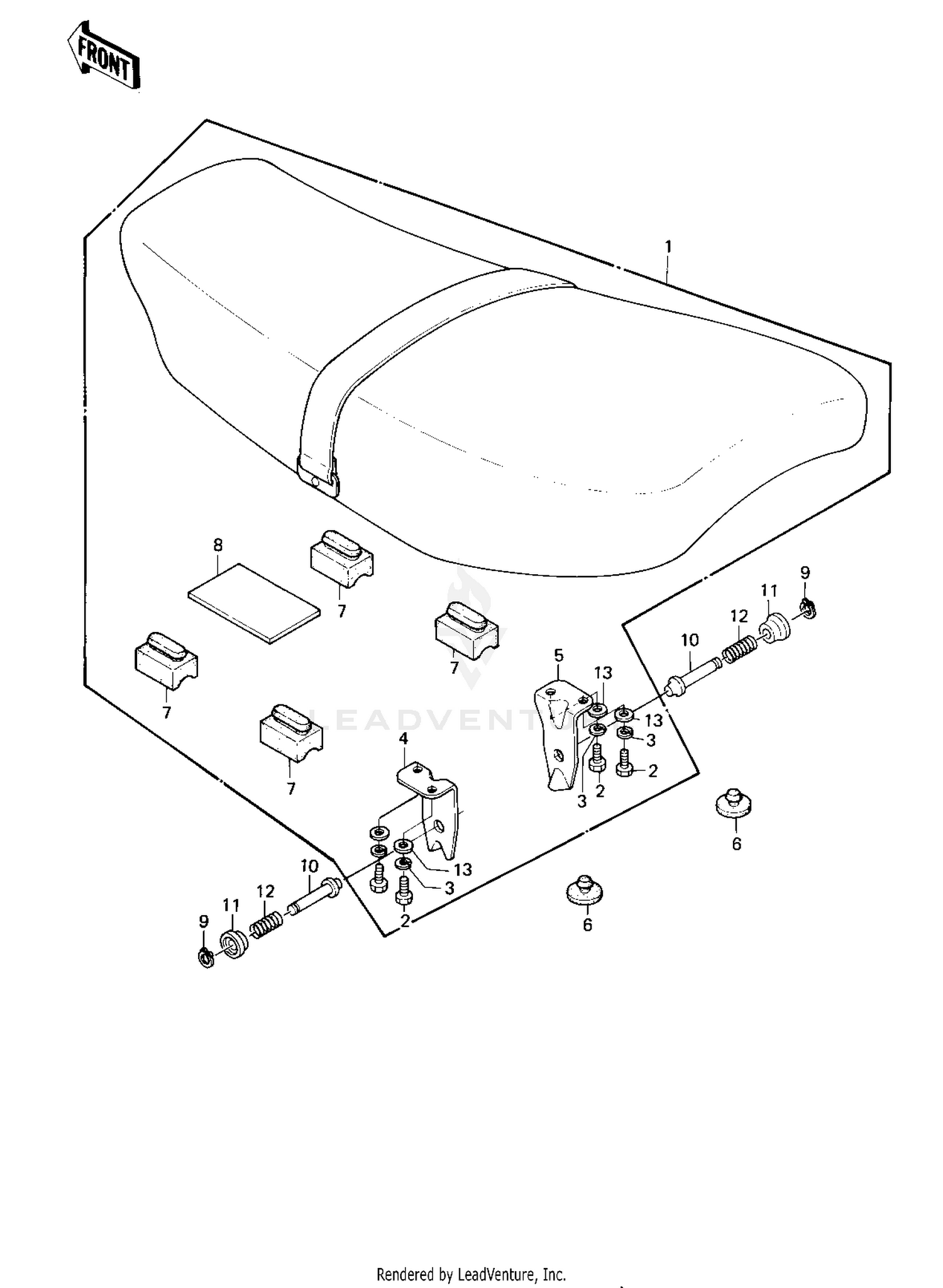

Seat ('80-'81 Ke175-d2/d3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT-ASSY,W/BAND
53001-1248
|
$326.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET,SEAT CATCH,LH
32046-1030
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET,SEAT CATCH,RH
32046-1031
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
92075-099
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER RUBBER,SEAT
92075-216
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER RUBBER,BATERY
92075-224
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING-SNAP,8MM
92033-1039
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN,SEAT STOPPER
92043-1036
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
KNOB,SEAT STOPPER
92077-1007
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING,SEAT STOPPER
92081-1135
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
