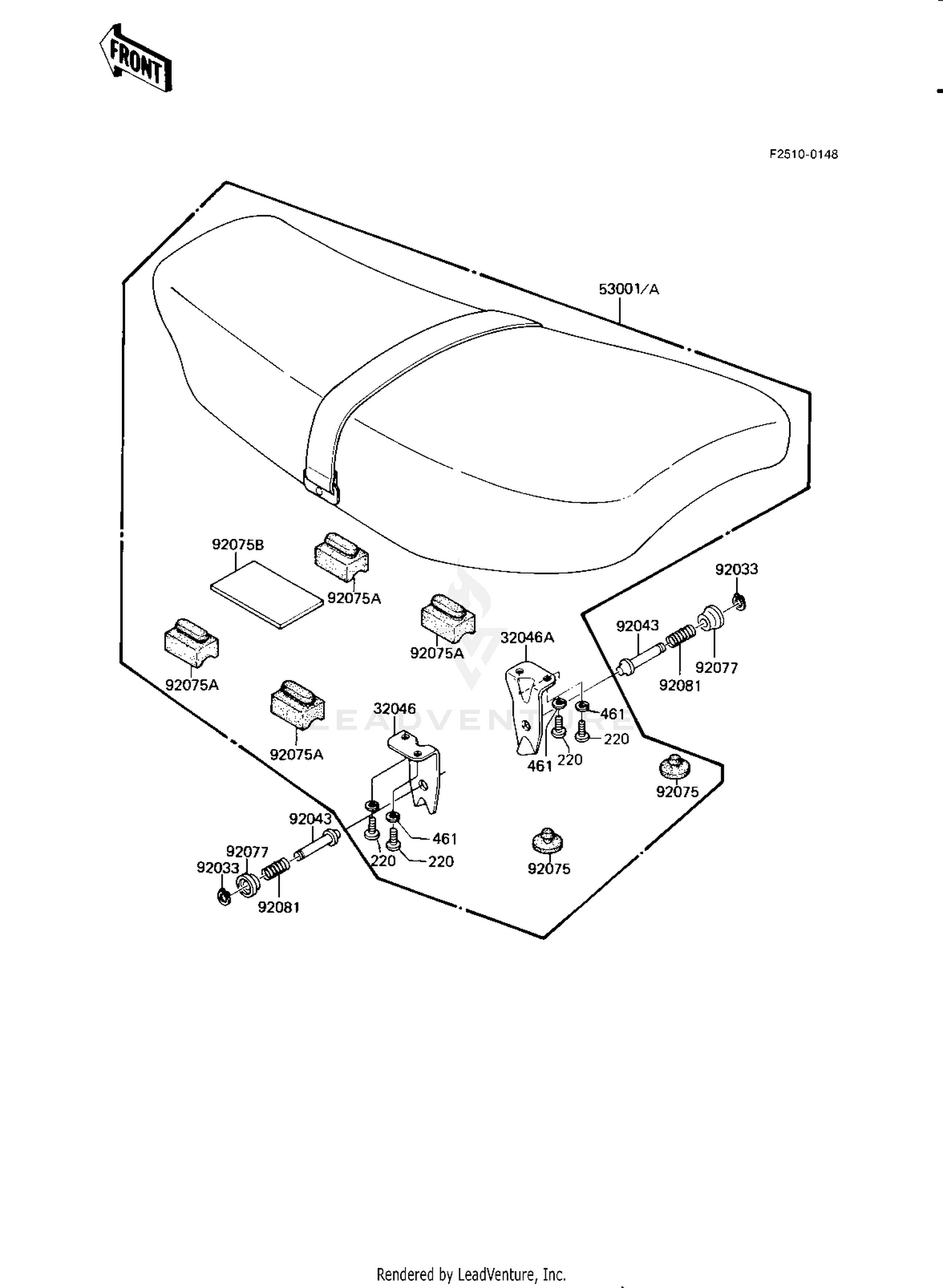

Seat ('82-'83 Ke175-d4/d5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32046
BRACKET,SEAT CATCH,LH
32046-1030
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#32046A
BRACKET,SEAT CATCH,RH
32046-1031
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#53001
SEAT-ASSY,W/BAND
53001-1248
|
$326.13 | ||
|
Available to order. Add to View Price |
|||
|
#53001A
SEAT-ASSY,W/BAND
53001-1248
|
$326.13 | ||
|
Unavailable |
|||
|
#92033
RING-SNAP,8MM
92033-1039
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,SEAT STOPPER
92043-1036
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-099
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER,SEAT
92075-216
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER RUBBER,BATERY
92075-224
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,SEAT STOPPER
92077-1007
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,SEAT STOPPER
92081-1135
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
