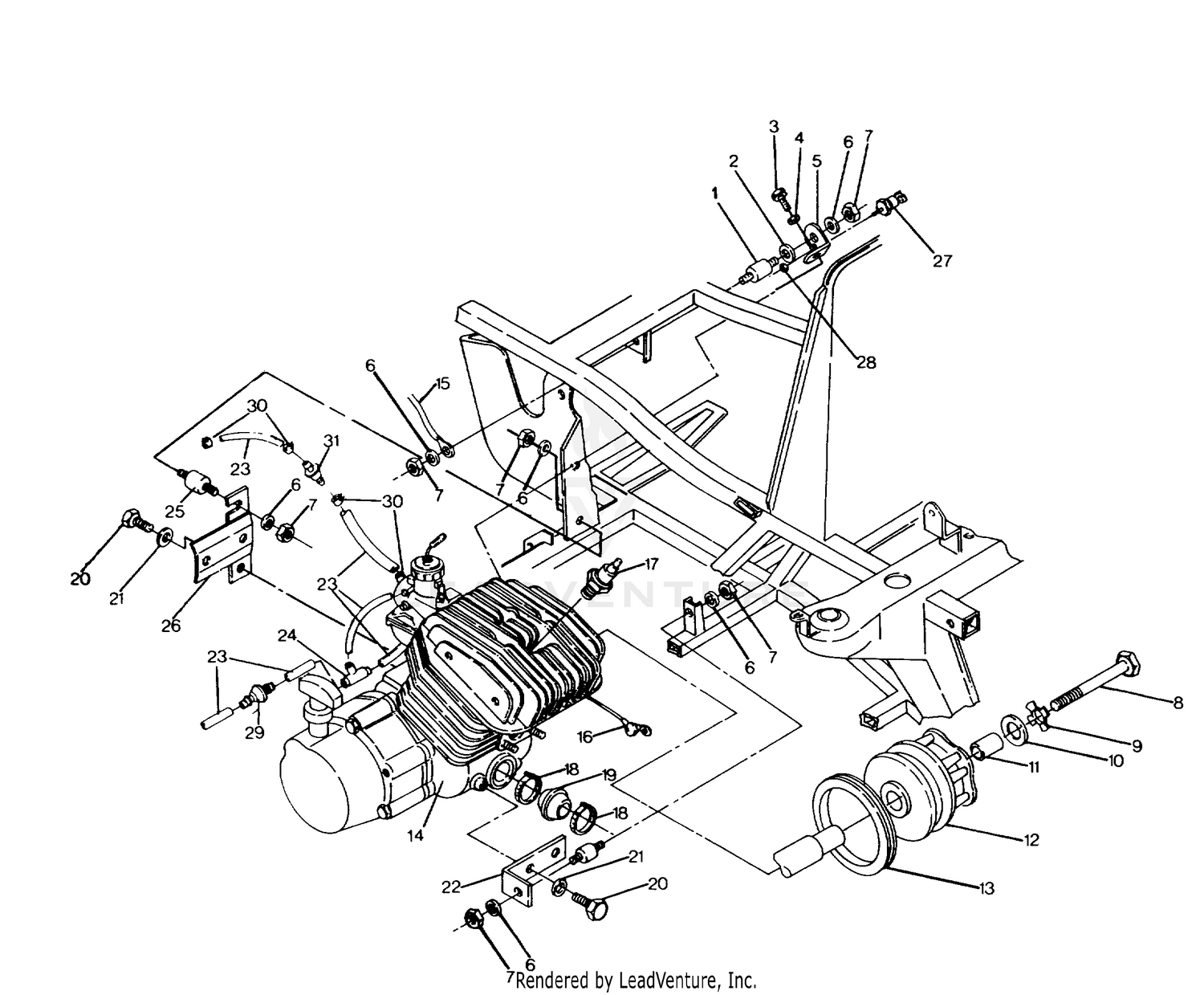

Engine Mounting 250 6x6 / W928727 (4922842284006a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOUNT,MOTOR
3110026
Superseded by 3022067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSULATOR,MOTOR MT.
5430802
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT(10)
7515321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOUNT, ENG.,TOP
5220471-067
|
|||
|
Unavailable |
|||
|
#6
WASHER(10)
7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT(10)
7512566
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Asm., Drive Clutch, Basic
1321519
Superseded by 1321976
|
$719.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL,ENG./CLUTCH
5410411
|
|||
|
Unavailable |
|||
|
#14
ENG.EC25PF-05(ATV) [No Longer Available]
1211460
|
|||
|
Unavailable |
|||
|
#15
CABLE,GROUND/ENG.
4010067
|
|||
|
Unavailable |
|||
|
#16
INSULATOR-CABLE
5410346
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPARKPLUG (10)
3070156
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
7080136
|
|||
|
Unavailable |
|||
|
#19
BOOT,CLUTCH INTAKE
5410421
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW(10)
7512490
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE,FR.MTR.MT.
5220881-067
|
|||
|
Unavailable |
|||
|
#23
Line, Fuel
5521087
Superseded by 8360009-600
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FITTING, TEE
7052005
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ISOLATOR-3/8-24M/M,60DURO
3110028
Superseded by 3022068
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
MT,R.A/C(ATV),BLK.
5220757-067
Superseded by 5241056-067
|
$31.99 | ||
|
Unavailable |
|||
|
#27
THERMOSTAT,COOL.FAN Substituted by 4010211
4110114
|
|||
|
Unavailable |
|||
|
#28
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Valve, Check
7052047
Superseded by 7051011
|
$9.29 | ||
|
Unavailable |
|||
|
#30
CLAMP-HOSE,(10)
7080236
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FILTER,SMALL,IN-LINE,(10)
2530009
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DESC NOT_AVAILABLE
1211475
|
|||
|
Unavailable |
|||
