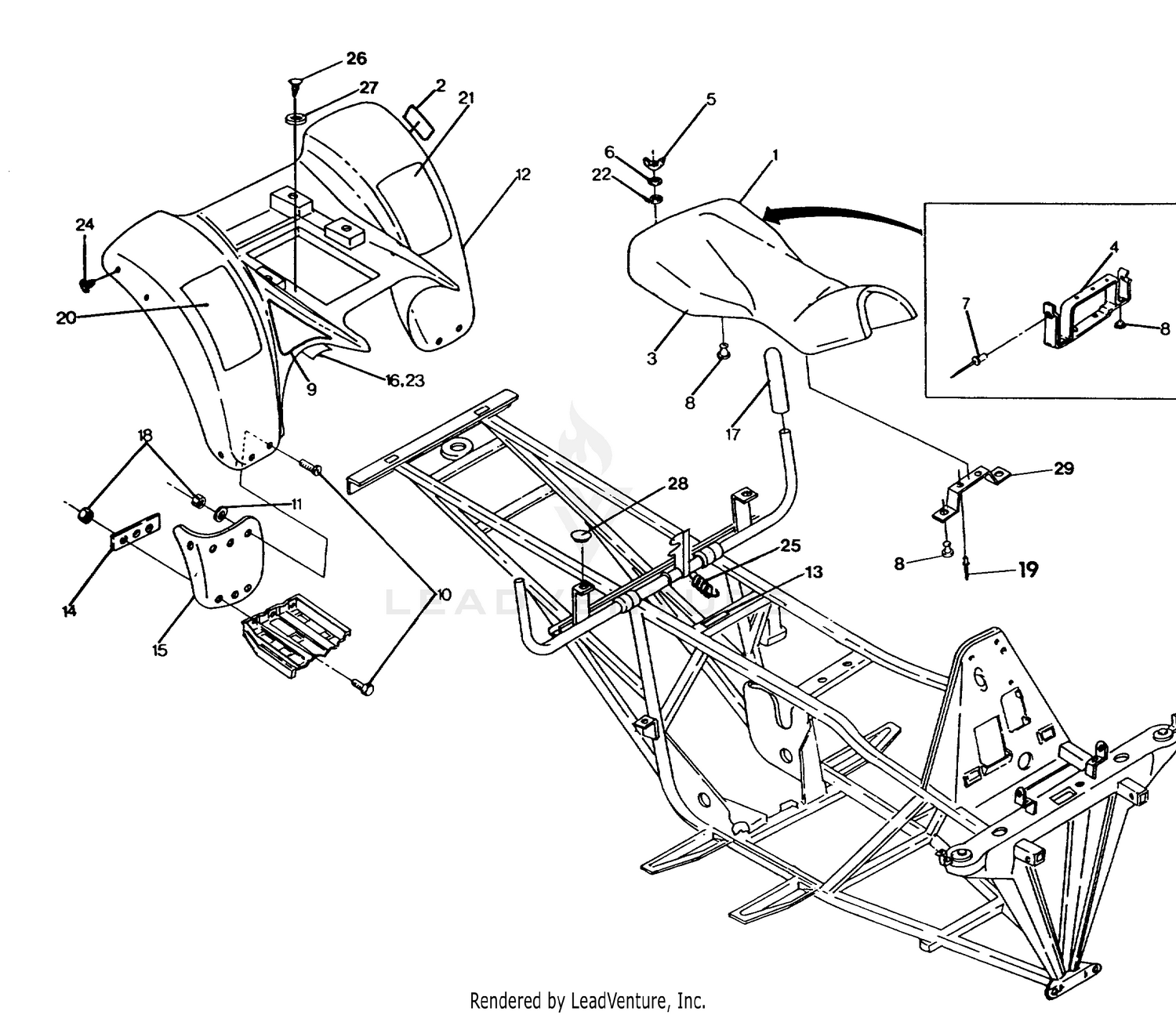

Rear Cab Assembly 250 6x6 / W928727 (4922842284002a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT,(4X6,6X6) Substituted by 2681727-132
2681415
|
|||
|
Unavailable |
|||
|
#2
DECAL(CPSC),TIRE PRESS(4X6) [No Longer Available]
7072811
|
|||
|
Unavailable |
|||
|
#3
COVER,SEAT,(4X6,6X6) Substituted by 2681728-132
2681416
|
|||
|
Unavailable |
|||
|
#4
LATCH, SEAT
1040185
|
$33.99 | ||
|
Unavailable |
|||
|
#5
NUT,WING(10)
7542127
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK WASHER(10)
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIVET(50)
7621456
|
|||
|
Unavailable |
|||
|
#8
BUMPER, RUBBER
5410414
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DECAL, PANEL,(6X6) [No Longer Available]
7073157
|
|||
|
Unavailable |
|||
|
#10
BOLT, BLACK(10)
7512282
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, FLAT(10)
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAB,REAR,RED(6X6)
5431110-136
|
|||
|
Unavailable |
|||
|
#13
DECAL,FILTER ELEMENT [No Longer Available]
7072791
|
|||
|
Unavailable |
|||
|
#14
BRKT,RH MUD FLAP
5211020-067
|
|||
|
Unavailable |
|||
|
#14
BRKT, LH MUD FLAP
5211131-067
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
MUDFLAP,LH,LOW,REAR
5850076
|
|||
|
Unavailable |
|||
|
#15
MUDFLAP,RH,LOW REAR
5850077
|
|||
|
Unavailable |
|||
|
#16
TAPE,FOIL,R.CAB
5810416
|
|||
|
Unavailable |
|||
|
#17
GRIP
5431097
|
|||
|
Unavailable |
|||
|
#18
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
RIVET
7621481
|
|||
|
Unavailable |
|||
|
#20
DECAL(CPSC),OPER.WRN. [No Longer Available]
7072715
|
|||
|
Unavailable |
|||
|
#21
DECAL(CPSC),LOAD DIST(4X6) [No Longer Available]
7072714
|
|||
|
Unavailable |
|||
|
#22
Washer, Flat
7555776
Superseded by 7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
TAPE, FOIL
5810424
|
|||
|
Unavailable |
|||
|
#24
CLIP, PUSH-ON(10)
7670052
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING,LATCH,RETURN
7042032
|
|||
|
Unavailable |
|||
|
#26
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,WROUGHT(10)
7558302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRKT,SUPPORT SEAT BASE
5222837-067
|
|||
|
Unavailable |
|||
|
#19
DESC NOT_AVAILABLE
7073389
|
|||
|
Unavailable |
|||
