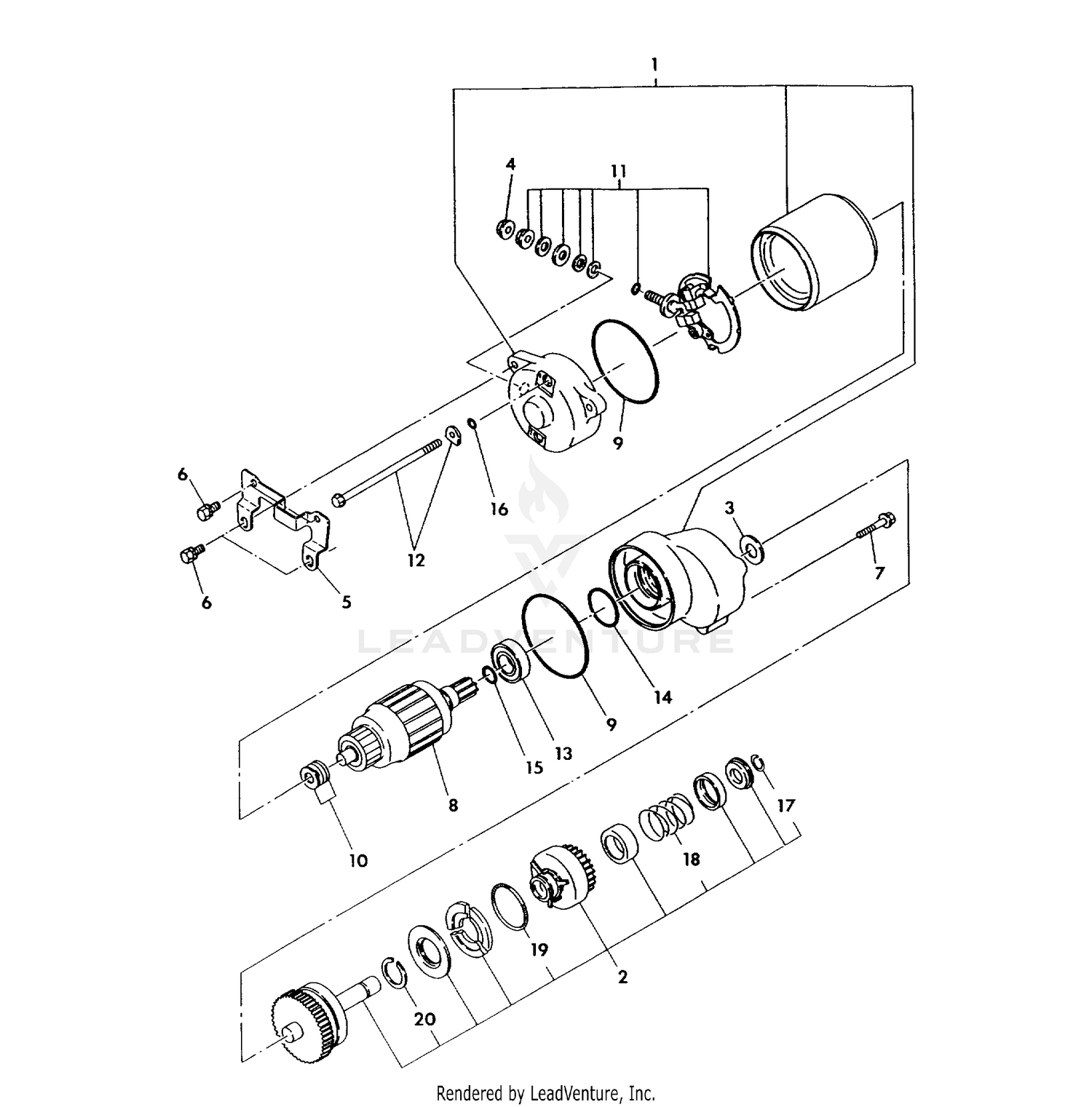

Starting Motor Assembly 250 6x6 / W928727 (4922842284047a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASM. Substituted by 3085392
3084402
|
|||
|
Unavailable |
|||
|
#1
STARTER MOTOR ASM. Substituted by 3085393
3084403
|
|||
|
Unavailable |
|||
|
#2
ASM., GEAR SHAFT
3083647
Superseded by 3090034
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Washer
3083737
Superseded by 7555908
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE(10)
3083649
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET
3083650
|
$20.59 | ||
|
Unavailable |
|||
|
#6
BOLT,(10)
3081645
|
|||
|
Unavailable |
|||
|
#7
BOLT&WASHER ASM.
3082038
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARMATURE ASM. *
3084404
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, RUBBER
3084405
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER SET
3083754
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Set, Brush, Carbon
3084406
Superseded by 3088169
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, THROUGH
3084407
|
$3.29 | ||
|
Unavailable |
|||
|
#13
BALL BEARING
3083777
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING
3083741
|
|||
|
Unavailable |
|||
|
#15
O RING
3083934
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
3084408
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
3084409
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, RETURN
3084410
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, WEIGHT
3084411
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
3084412
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
STARTER MOTOR ASM. Substituted by 3085392
3084402
|
|||
|
Unavailable |
|||
|
#1
STARTER MOTOR ASM. Substituted by 3085393
3084403
|
|||
|
Unavailable |
|||
