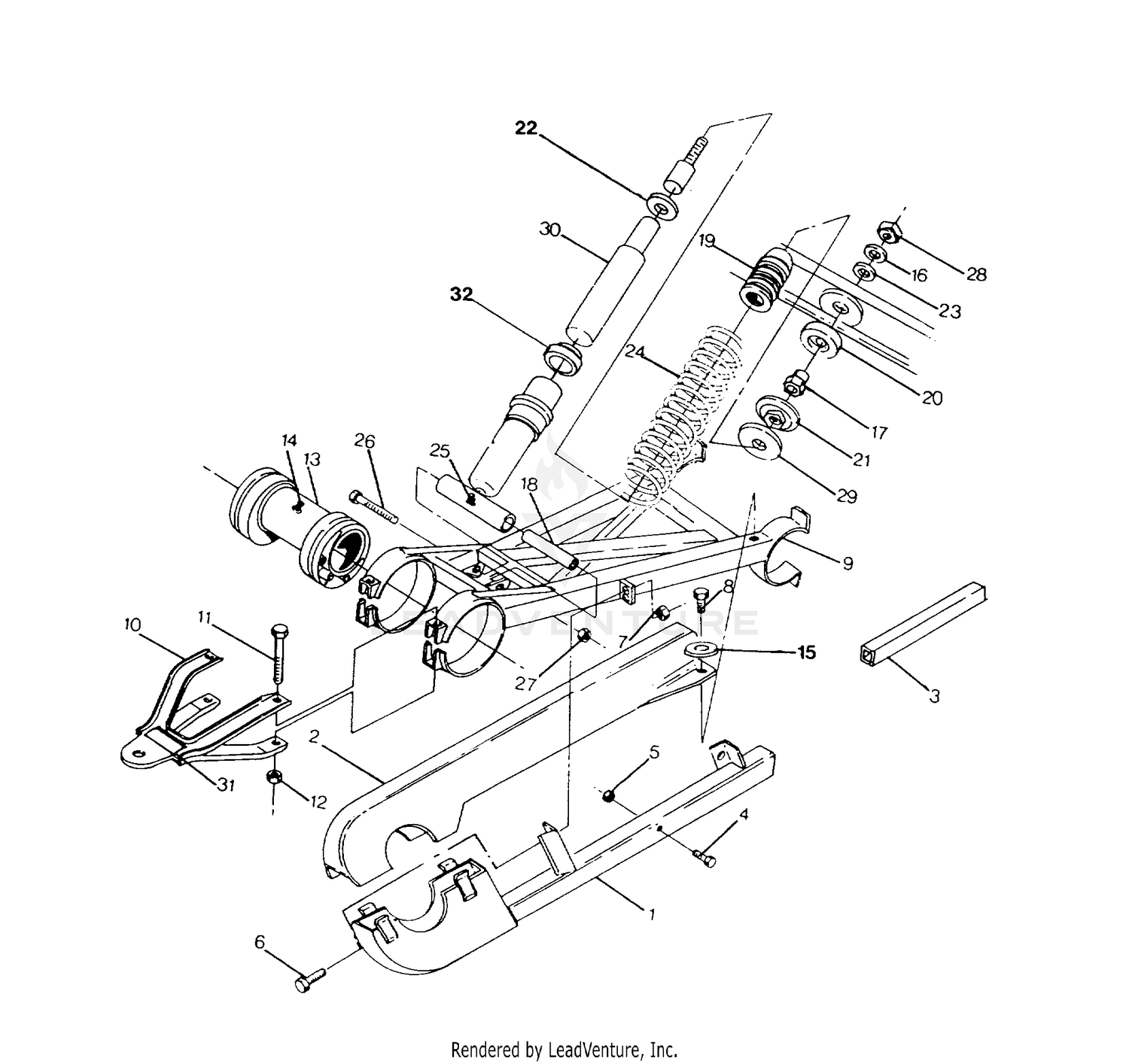

Swing Arm Weldment (rear) 250 6x6 / W928727 (4922842284029a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, CHAIN
1040184-067
|
|||
|
Unavailable |
|||
|
#2
GUARD, TOP CHAIN
5431101
|
|||
|
Unavailable |
|||
|
#3
GUIDE, R.CHAIN
5521207
|
|||
|
Unavailable |
|||
|
#4
SCREW(10)
7515117
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT(10)
7512325
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, NYLOK(10)
7542327
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#9
S.ARM EXT, BLK.(4X6)
1580036-067
|
|||
|
Unavailable |
|||
|
#10
Kit, Hitch
1040162-067
Superseded by 2873036
|
$36.99 | ||
|
Unavailable |
|||
|
#11
BOLT(10)
7512569
|
|||
|
Unavailable |
|||
|
#12
NUT,FLANGE(10)
7542522
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Unavailable |
|||
|
#14
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER(10)
7555749
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER, THREADED
5130631
|
|||
|
Unavailable |
|||
|
#18
SPACER
5332971
|
|||
|
Unavailable |
|||
|
#19
BUMPER-MCU,19.1MM ID
5410535
Superseded by 5412529
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIVOT-BALL,TOP,DELRIN
5430806
Superseded by 5432872
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIVOT-BALL,BOTTOM,DELRIN
5430807
Superseded by 5432871
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSHING
5431113
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER-RUBBER
5810291
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,COMP,REAR
7041204-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FITTING,LUB/VEN(10)
7080220
Superseded by 7080561
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT(10)
7512531
|
|||
|
Unavailable |
|||
|
#27
NUT, LOCK,(10)
7542503
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT,FLEX LOC(10)
7542507
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER(10)
7555740
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
STRUT, REAR
1580051-067
|
|||
|
Unavailable |
|||
|
#31
DECAL, HITCH Substituted by 7078261
7072533
|
|||
|
Unavailable |
|||
|
#32
ADAPTER,SPRING SEAT
5630390
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
