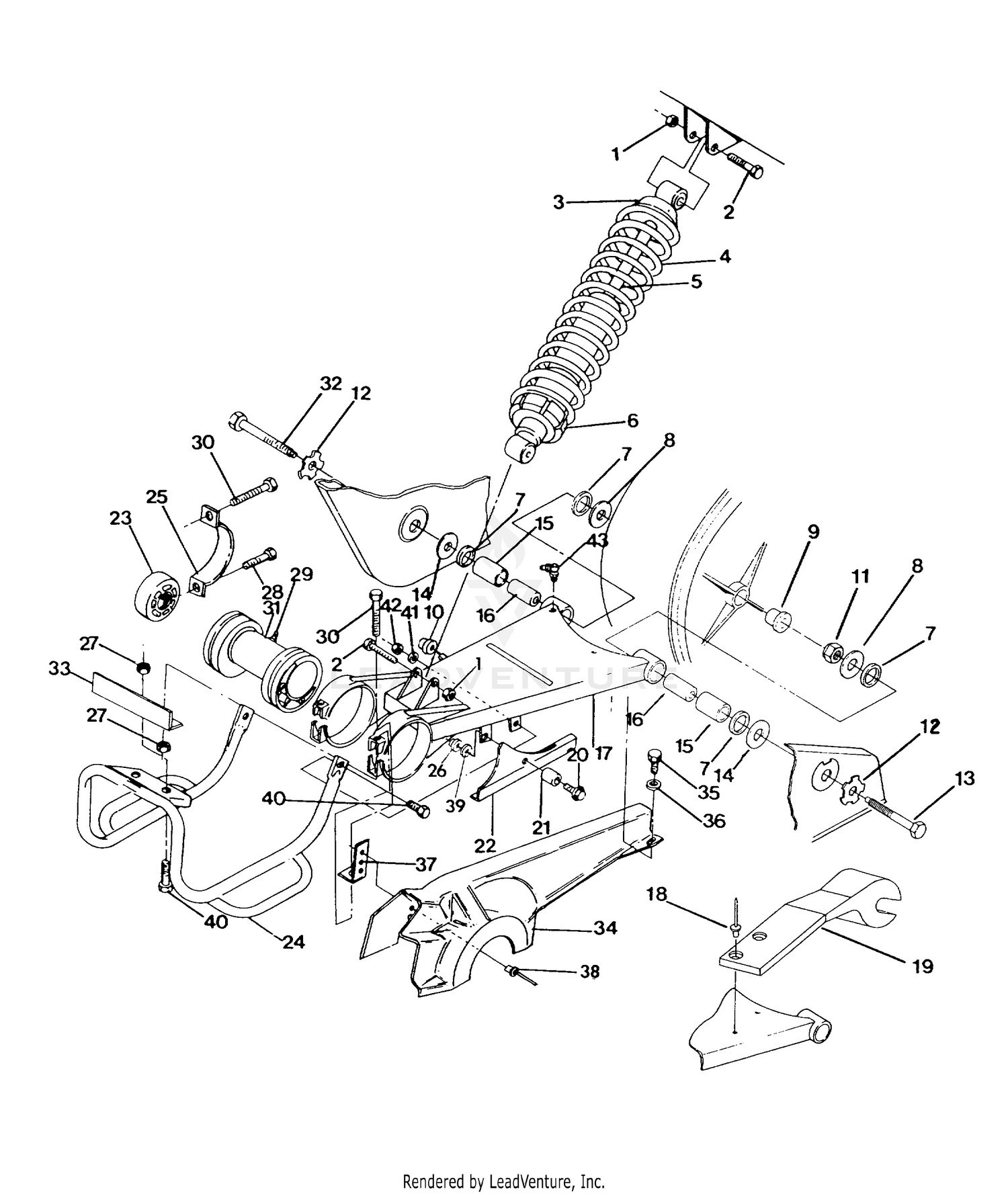

Swing Arm Weldment (middle) 250 6x6 / W928727 (4922842284039a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT(10)
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RETAINER-TOP
5220225
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING,COIL,BLK.
7041194-067
|
|||
|
Unavailable |
|||
|
#5
SHOCK
7041220
|
$92.99 | ||
|
Unavailable |
|||
|
#6
SPACER,SHOCK RETAINER(10)
5210953
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL,OIL
3610016
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER(10)
7555779
|
|||
|
Unavailable |
|||
|
#9
NOT AVAILABLE
5010255
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER
5130712
|
|||
|
Unavailable |
|||
|
#11
NUT,CROWN LOCK(10)
7542601
|
|||
|
Unavailable |
|||
|
#12
PLATE,BOLT LOCK
5220958
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SHOULDER
7512704
|
|||
|
Unavailable |
|||
|
#14
BUSHING, MACH.(10)
7555752
|
|||
|
Unavailable |
|||
|
#15
BEARING
3576507
|
$11.99 | ||
|
Unavailable |
|||
|
#17
ARM, SWING, BLK.
1580045-067
|
|||
|
Unavailable |
|||
|
#18
RIVET(50)
7621433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, CHAIN
5431310
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-FLANGED(10)
7515304
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSHING
5332828
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUARD, CHAIN
5430952
Superseded by 5430776
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOUSING,SWING ARM
5130696
Superseded by 5130945
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUARD, RACK Substituted by 1040183-132
1040183-067
|
|||
|
Unavailable |
|||
|
#25
BRKT,SWG.ARM EXT.
1580044-067
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRKT,RH,SWG.ARM EXT.
1580047-067
|
$22.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT LOCK(10)
7542321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT,FLANGE(10)
7542522
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT(10)
7512520
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT(10)
7512569
|
|||
|
Unavailable |
|||
|
#31
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Unavailable |
|||
|
#32
BOLT, SHOULDER
7512703
|
|||
|
Unavailable |
|||
|
#33
MOUNT,ROCK GUARD
5222221-067
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#34
GUARD, F.CHAIN
5431102
|
|||
|
Unavailable |
|||
|
#35
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#36
Washer, Flat
7555776
Superseded by 7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRKT,CHAIN GUARD,BLK.
5222220-067
|
|||
|
Unavailable |
|||
|
#38
RIVET(50)
7621301
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT(10)
7512325
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT HEX(10)
7542301
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
FITTING, LUBE.
7080438
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
