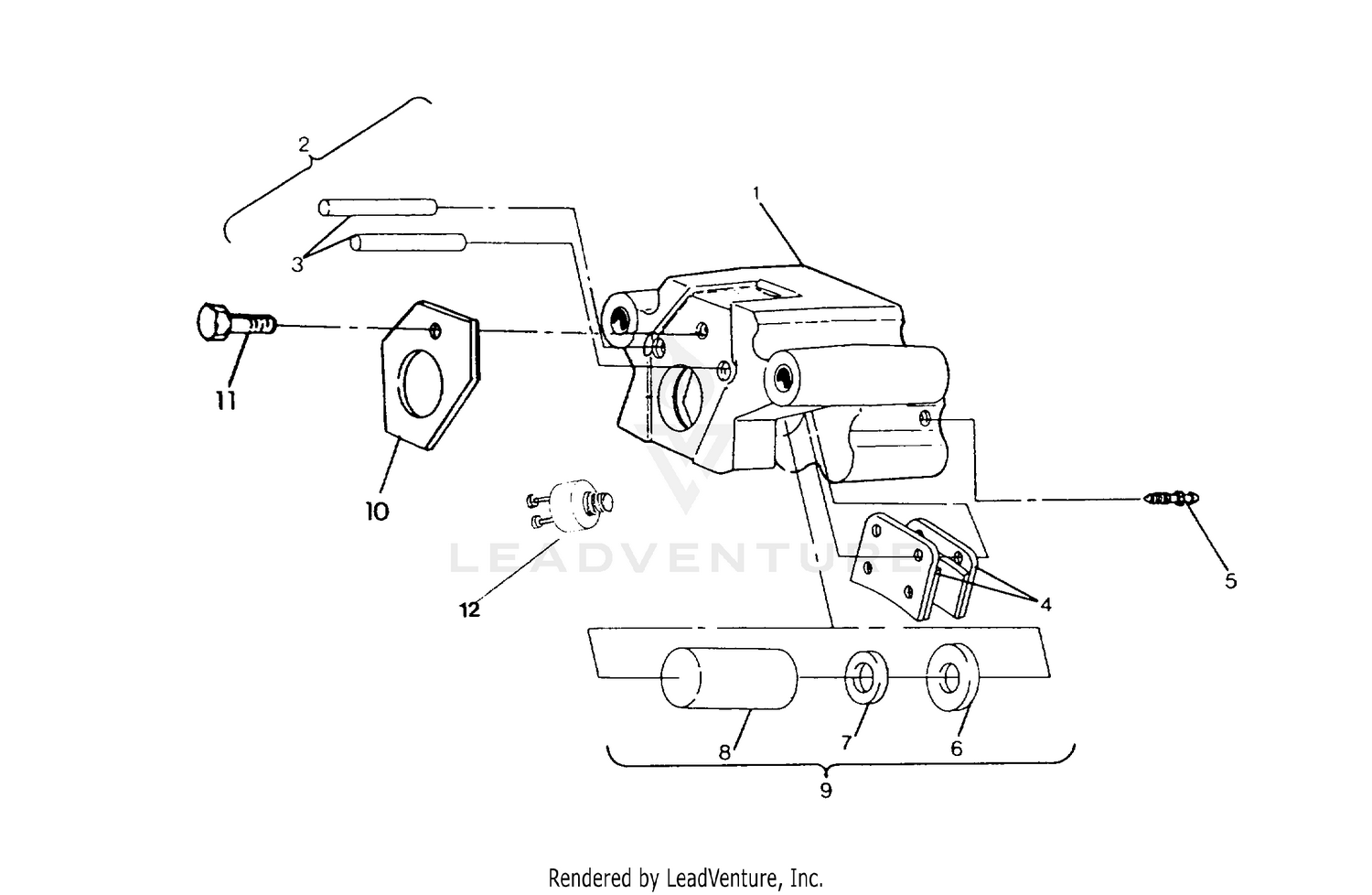

Rear Brake Assembly 250 6x6 / W928727 (4922842284038a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER, R.BRAKE
1910047
|
|||
|
Unavailable |
|||
|
#1
CALIPER, BRAKE(4X6)
5130713
|
|||
|
Unavailable |
|||
|
#2
KIT,BRAKEPAD,REAR
1930644
Superseded by 2200464
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL(10)
7661820
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KIT,BRAKEPAD,REAR
1910032
Superseded by 2200464
|
$39.99 | ||
|
Unavailable |
|||
|
#5
SCREW,BLEEDER
7080352
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING,SQUARE,(.120)
5410518
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, SQUARE
5410519
|
|||
|
Unavailable |
|||
|
#8
PISTON, BRAKE
5020521
|
|||
|
Unavailable |
|||
|
#9
KIT,BRAKE SEALS&PISTON
1930666
|
$114.99 | ||
|
Unavailable |
|||
|
#10
PLATE, PIN
5211143
|
|||
|
Unavailable |
|||
|
#11
SCREW, SEMS(10)
7512020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH, STOPLIGHT
4110089
|
|||
|
Unavailable |
|||
