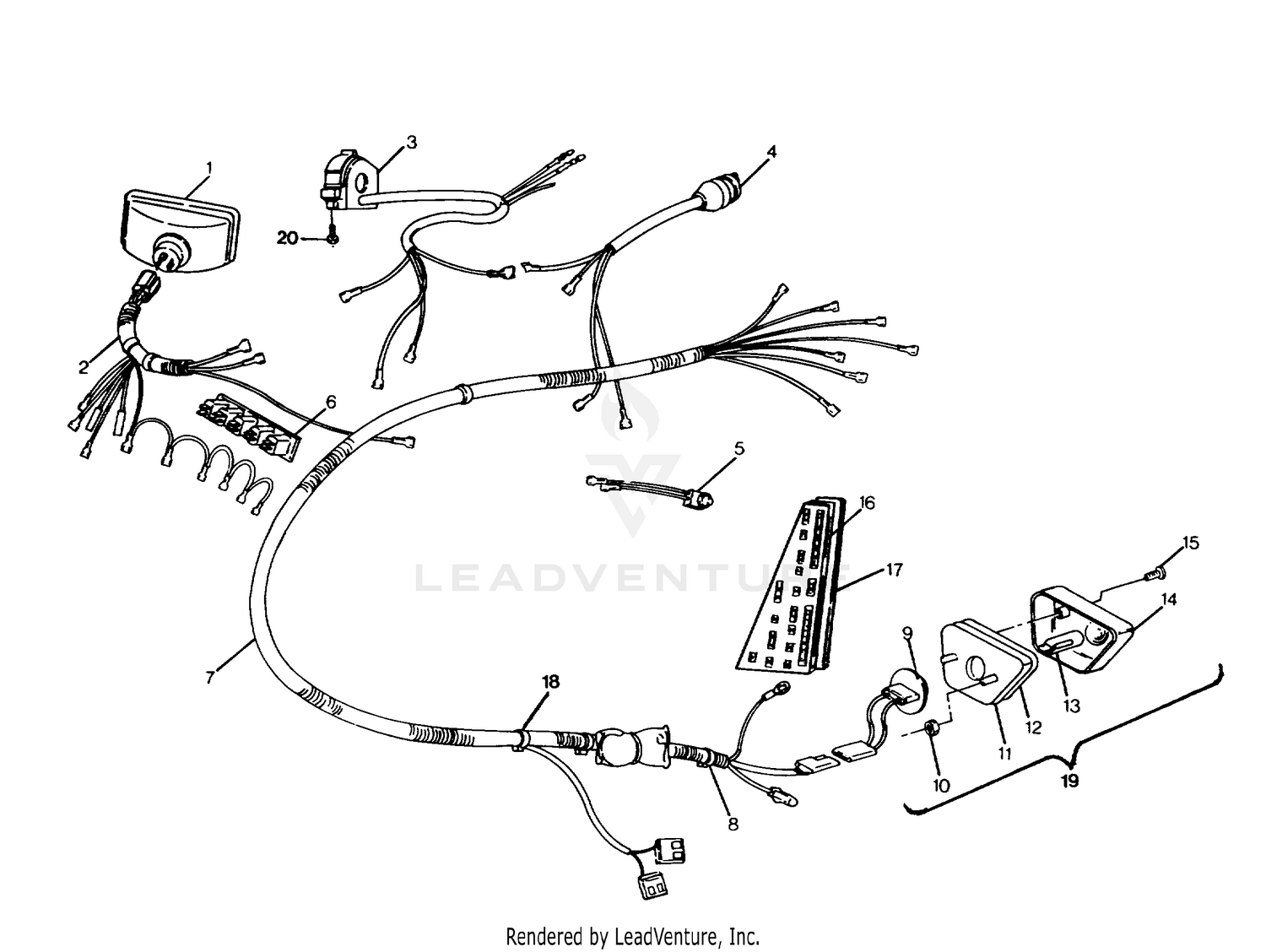

Wiring Harness 250 6x6 / W928727 (4922842284035a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASM.
4032038
|
|||
|
Unavailable |
|||
|
#2
HARNESS,HEADLIGHT Substituted by 2460427
2460355
|
|||
|
Unavailable |
|||
|
#3
SWITCH,HI/LO/ST. Substituted by 4110157
4110095
|
|||
|
Unavailable |
|||
|
#4
SWITCH, IGNITION
4110086
Superseded by 4110140
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SW,O'RIDE,REV.LIMIT.
4110083
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRIP, SOCKET
4032037
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HARNESS,MAIN WIRE(250-6X6) Substituted by 2460403
2460354
|
|||
|
Unavailable |
|||
|
#8
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPEED NUT-WASHER, HEAD-1/4
7670054
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BACKING,TAILLIGHT
4032036
|
|||
|
Unavailable |
|||
|
#12
GASKET,TAILLIGHT
4032031
|
|||
|
Unavailable |
|||
|
#13
BULB,TAILLIGHT,(10)
4030040
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LENS,TAILLIGHT
4032030
Superseded by 4032046
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAILLIGHT
4032029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOARD,TERMINAL
4040022
|
|||
|
Unavailable |
|||
|
#17
SHIELD,TERM.BOARD
5431152
|
|||
|
Unavailable |
|||
|
#18
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Unavailable |
|||
|
#19
TAIL LIGHT ASM.
2432034
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
2010055
|
|||
|
Unavailable |
|||
