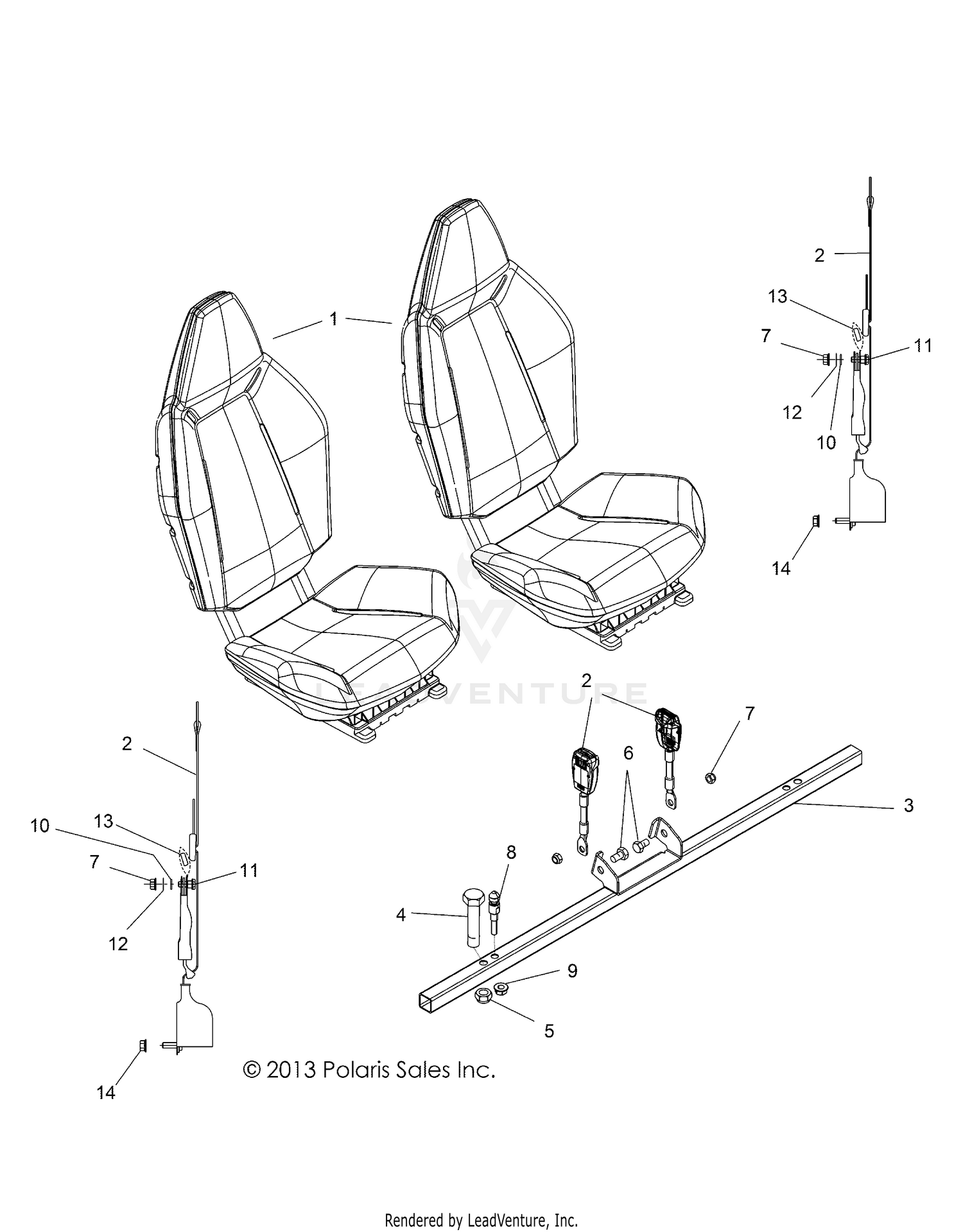

Body, Seat Mounting And Belts - Z14vh57ad/6eai/6eaw (49rgrseatmtg14rzr570) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., SEAT
-------
|
|||
|
Unavailable |
|||
|
#2
ASM., SEAT BELT, 3 POINT
2634887
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, SEAT, REAR, MATTE BLACK
1017452-458
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
7517442
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, NYLON
7542525
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
7519072
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
7547441
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUNGER-LATCH
7519252
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-SEATBELT,RUBBER
5813829
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SHOULDER
5137011
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RETAINER
5253444
|
|||
|
Unavailable |
|||
|
#13
BOLT, CAP
5137010
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, NYLOK
7540000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
