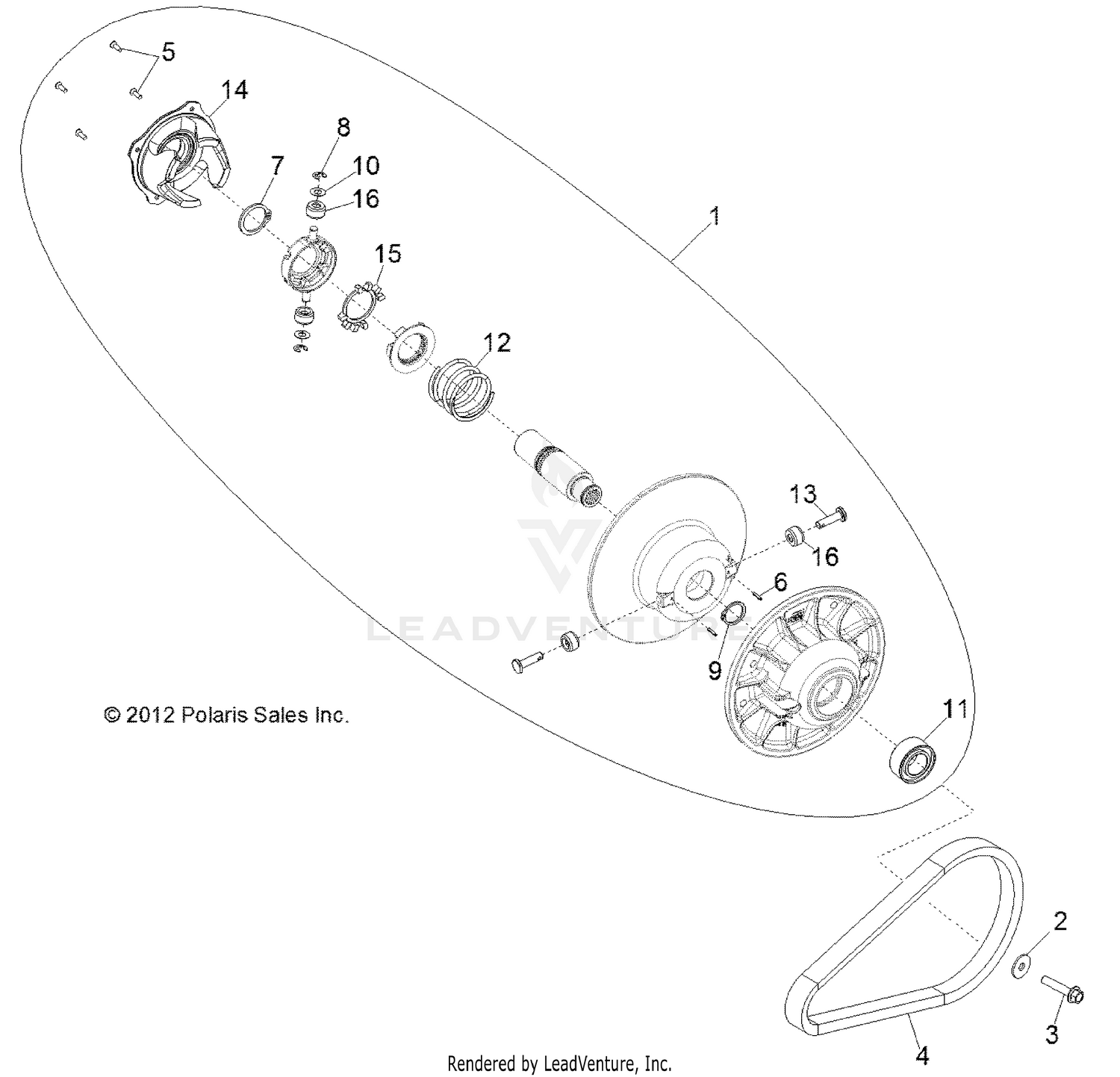

Drive Train, Secondary Clutch - Z14vh6eai/6eaw (49rgrclutchdvn1323051) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., DRIVEN CLUTCH, EBS
1323051
|
$624.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, FLAT
7555846
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
7519210
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BELT, DRIVE
3211143
|
$104.99 | ||
|
Unavailable |
|||
|
#5
SCREW-HELIX, PATCH
3234754
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN,SPRING SLOTTED .125X.625
3234202
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, RETAINING, EXTERNAL
7710522
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RET.E-RING-E T.375-TEAM#130059
7710523
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, RETAINING
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, THRUST
7556226
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, BALL
3234203
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
3234452
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, ROLLER
3234201
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM., CAM
3235439
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
K-CLUTCH,PTD,SPIDER DAMPER
7710564
Superseded by 2206554
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLLER, CLUTCH
5434534
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
