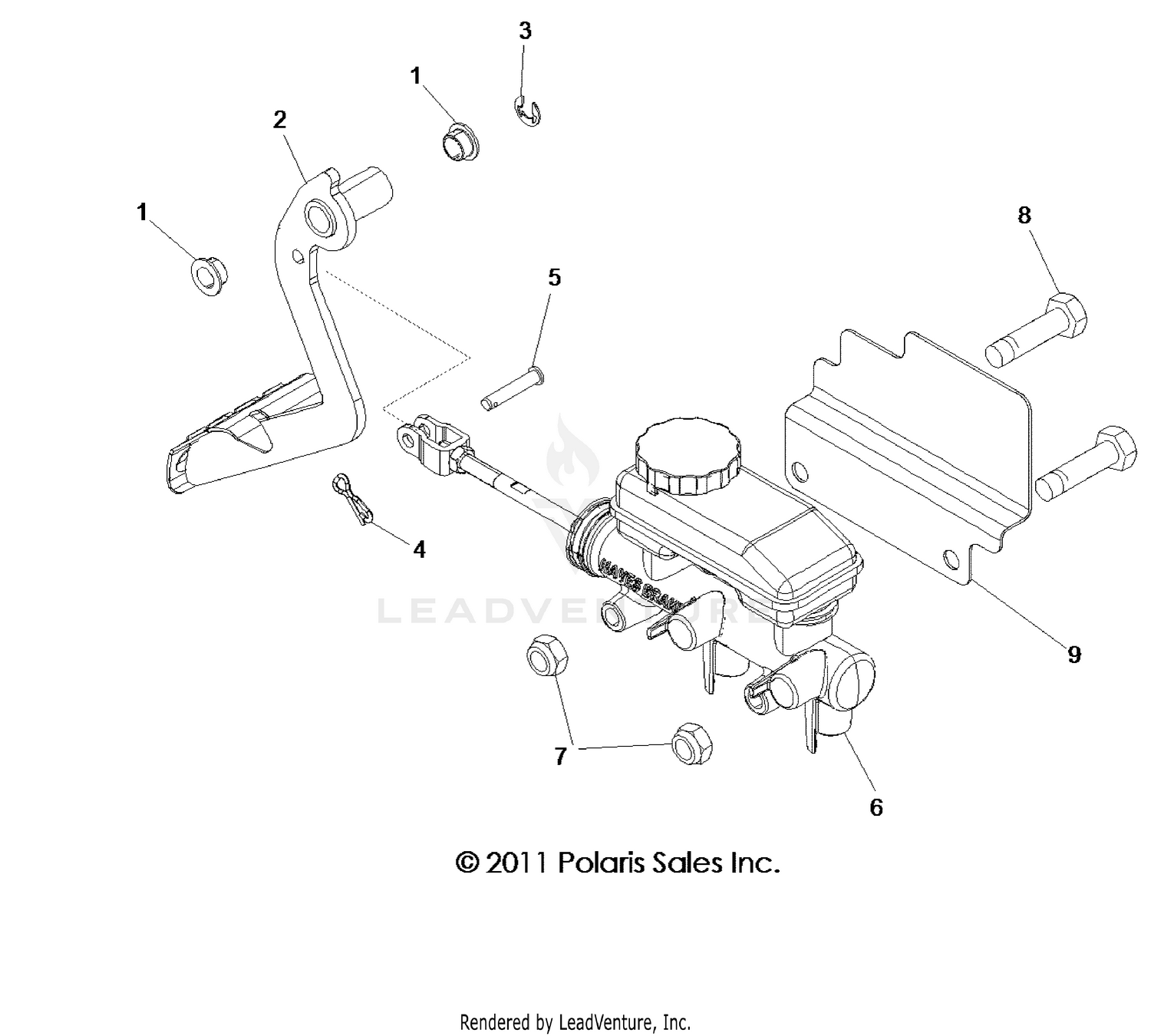

Brakes, Pedal And Master Cylinder - Z14vh57ad/6eai/6eaw (49rgrbrakefoot12rzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSHING-PEDAL PIVOT
5439274
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-BRAKE PEDAL,M.BLK
1015481-458
Superseded by 1021765-458
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, RETAINING
7710901
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN-CLIP,14MM
7661140
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CLEVIS
7661843
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM., MASTER CYLINDER, TANDEM
2204458
Superseded by 1911982
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
7519781
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIELD, MASTER CYLINDER
5251507
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
