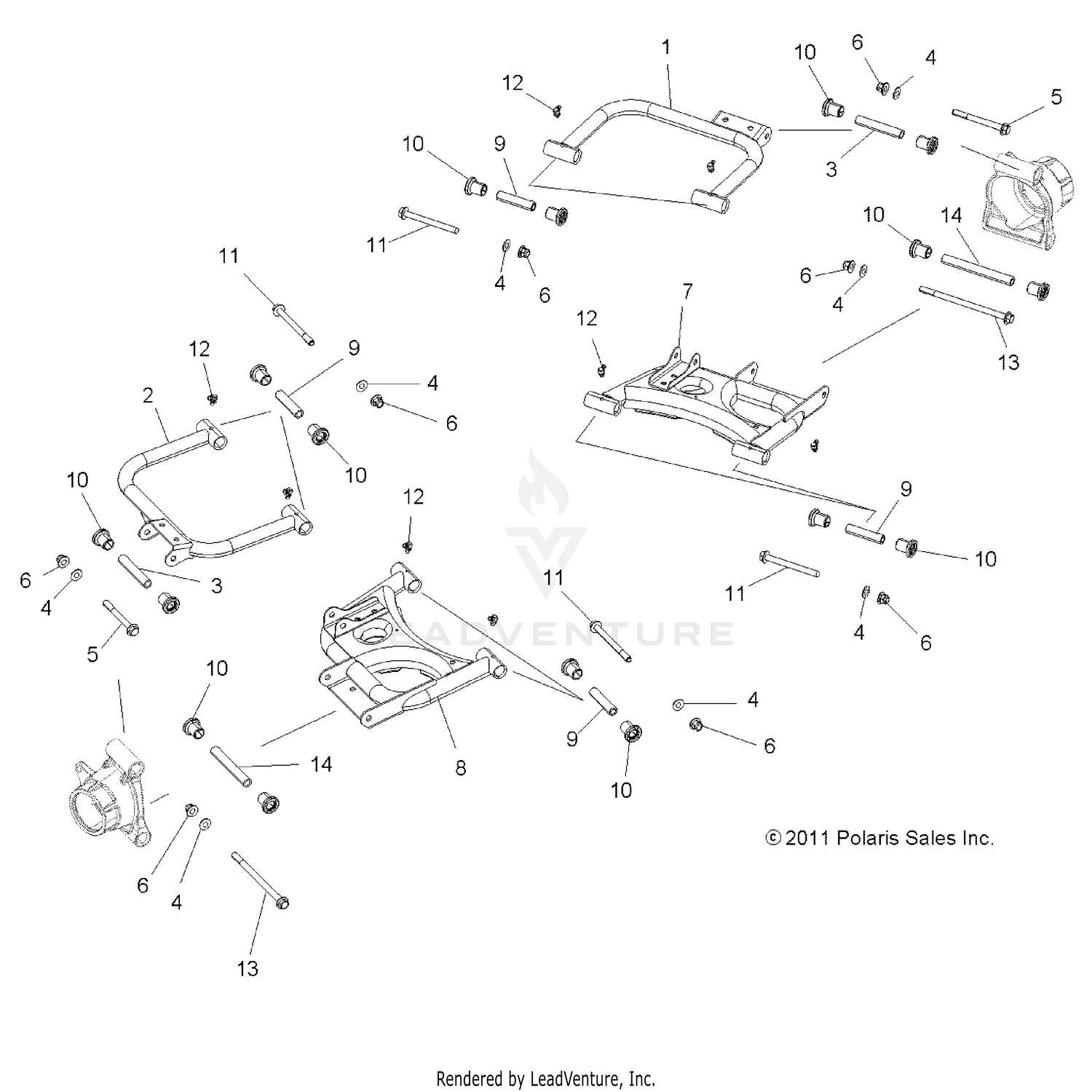

Suspension, Rear Control Arms - Z14vh57ad/6eai/6eaw (49rgrsusprr12rzr570) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, CONTROL, UPPER, REAR, MATTE BLACK, LH
1018121-458
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ARM, CONTROL, UPPER, REAR, WHITE, LH
1018121-133
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, CONTROL, UPPER, REAR, MATTE BLACK, RH
1018123-458
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, CONTROL, UPPER, REAR, WHITE, RH
1018123-133
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, PIVOT
5138794
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
7556153
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
7519365
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WELD-CNTRL ARM,LWR,REAR,LH,BLK
1018115-458
Superseded by 1021704-458
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, CONTROL, LOWER, REAR, WHITE, RH
1018115-133
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WELD-CNTRL ARM,LWR,REAR,RH,BLK
1018116-458
Superseded by 1021705-458
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, CONTROL, LOWER, REAR, WHITE, RH
1018116-133
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT-PIVOT,70.99MM,15.88OD
5138797
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING-STANDARD,ORV
5439874
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-BUSHING,HD,W/SEAL,5.23 FLG
1543367
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
7519043
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FITTING, ZERK
7080510
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
7519042
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, PIVOT
5138796
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
