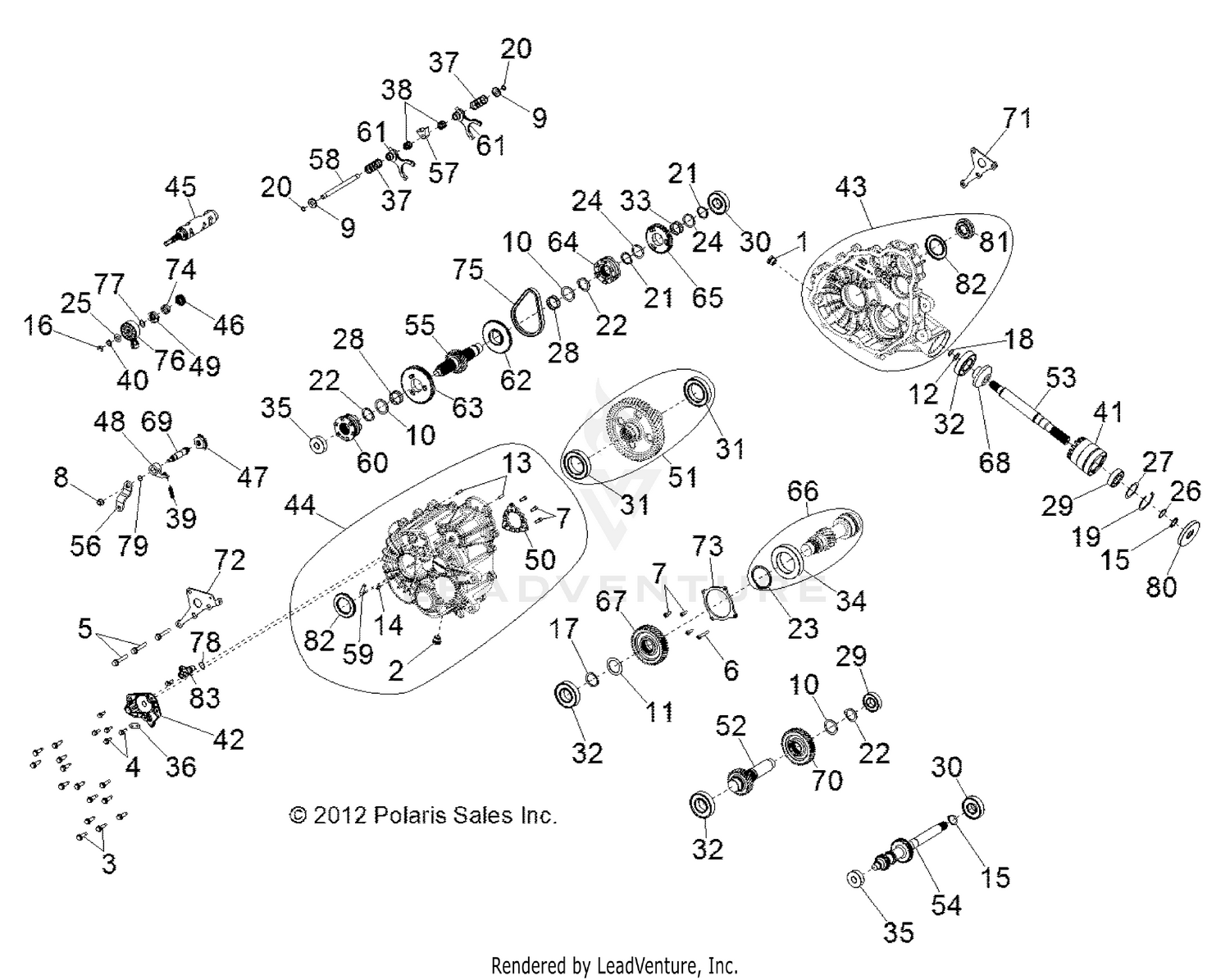

Drive Train, Main Gearcase - Z14vh57ad (49rgrtrans1333051) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM., GEARCASE
1333051
|
$1,594.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
PLUG
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG-SOCKET HEAD W/MAG,M18X1.5
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
3235206
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
3235207
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, SOCKET HEAD, CAP
3235208
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, SOCKET HEAD, CAP
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
3235210
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
3235212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
3235213
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
3234330
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPRING, SLOTTED
7043746
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, SNAP
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, RETAINING, SHAFT
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, RETAINING, EXTERNAL
3234318
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING,RETAINING BASIC,INTERNAL 2.047
3234269
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING, RETAINING
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING,RETAINING BASIC,EXTERNAL MSR-32
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING, RETAINING
3235216
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHIM
3234272
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHIM
3234273
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, BALL
3233268
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING,BALL 6207 C3 35MMX72MMX17MM
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, NEEDLE
3233384
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, BALL
3235218
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, BALL
3234652
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, WIRE HARNESS
3235350
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, COMPRESSION
3234089
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, COMPRESSION
3233830
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
3235327
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
TUBE
3234278
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER, SECTOR GEARS
3234188
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SUBASM., CASE, LH
3235382
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SUBASM., CASE, RH
3235444
|
$614.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
DRUM-SHIFT,MACH.(255289)
3235463
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
GEAR, SECTOR, 16T
3233839
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
GEAR-SECTOR,31T
3233832
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
PAWL, ROLLER
3235452
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
STAR, DETENT
3235453
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLATE, PARK
3235456
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
SUBASM., OUTPUT GEAR
3235335
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
SHAFT, IDLER, 29T
3235223
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
SHAFT, OUTPUT, FRONT
3235394
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
SHAFT, INPUT
3235429
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
SHAFT-REVERSE,27T(285878)
3235380
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BELLCRANK
3235386
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
RAIL, SHIFT SHAFT
3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
TUBE, VENT
3234230
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
DOG, SHIFT, PARK/LOW
3235457
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
SUBASM., SHIFT FORK
3235454
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
SPROCKET, 48T
3235231
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
GEAR, LOW, 67T
3235232
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
DOG, ENGAGEMENT
3235233
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
GEAR, 53T
3235234
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
SUBASM.,SHAFT
3235336
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
GEAR, 46T
3235236
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
GEAR, 13T
3235237
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
SHAFT-SHIFT(352973)
3235238
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
GEAR, 46T
3235381
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
BRACKET, MOUNT, REAR
3235239
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
BRACKET, MOUNT, REAR
3235351
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
COVER-BEARING,CNTR DR.
3235241
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
SPACER
3235243
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
CHAIN,SIL 101,.25P X .40W X58L
3234737
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
SWITCH, ROTARY
7661999
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
O-RING
3233836
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#78
O-RING
3234302
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
O-RING
3233828
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
SEAL, TRIPEL LIP
3234113
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
SEAL
3234851
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
SEAL, TRIPLE LIP
3235052
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
SENSOR-SPEED,TRANS
4013908
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
