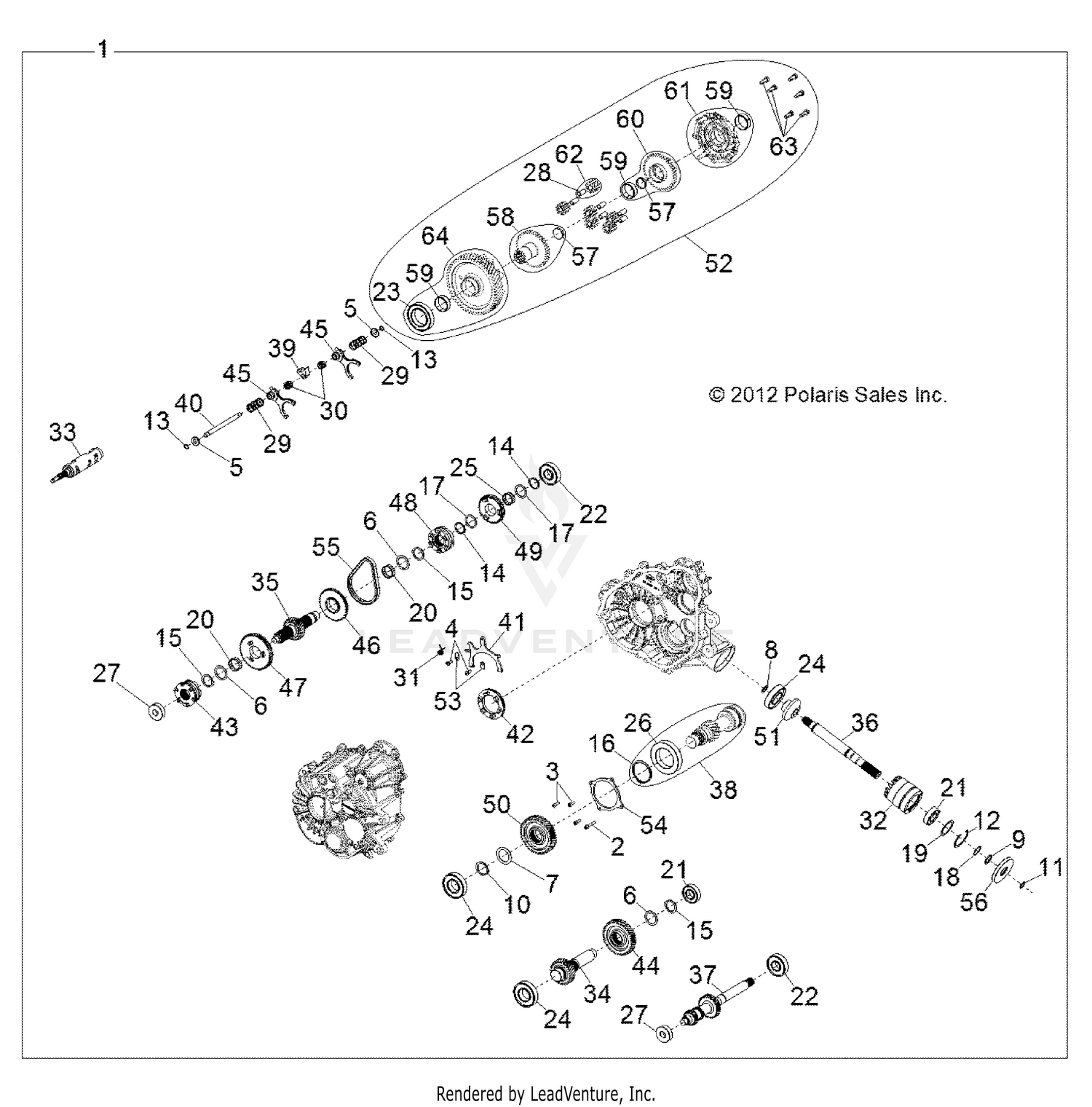

Drive Train, Main Gearcase Internals - Z14vh6eai/6eaw (49rgrtransintl1333084) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM. GEARCASE
1333084
|
$3,199.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, SOCKET/CAP
3235208
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, SOCKET HEAD, CAP
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, HEX, PAN HEAD
3234309
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
3235212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
3235213
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING, RETAINING
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, RETAINING, EXTERNAL
3234318
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING,RETAINING BASIC,INTERNAL 2.047
3234269
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, RETAINING
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING,RETAINING BASIC,EXTERNAL MSR-32
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, RETAINING
3235216
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIM
3234272
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM
3234273
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, BALL
3233268
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING,BALL 6207 C3 35MMX72MMX17MM
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, NEEDLE
3233384
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, BALL
3235218
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, BALL
3234652
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, PLAIN
-------
|
|||
|
Unavailable |
|||
|
#29
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, COMPRESSION
3234089
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TORSION, RETURN
3234276
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
TUBE, SNORKEL
3234278
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
DRUM-SHIFT,MACH.(255289)
3235463
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SHAFT, IDLER, 29T
3235223
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SHAFT-REVERSE,27T(285878)
3235380
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SHAFT, FRONT OUTPUT
3235394
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SHAFT, INPUT
3235429
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SUBASM.,SHAFT
3235336
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
RAIL, SHIFT SHAFT
3234079
Superseded by 3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
FORK, SHIFT
3235455
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
DOG, ENGAGEMENT
3234928
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SHIFT DOG, PARK
3235457
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
GEAR, 46T, STAGE 2
3235381
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
FORK, SHIFT
3235454
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPROCKET, 48T, 6-FACE
3235231
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
GEAR, LOW, 67T
3235232
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
ENGAGEMENT DOG
3235233
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
GEAR, 53T
3235234
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
GEAR, 46T, STAGE 3
3235236
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
GEAR, 13T, FRONT OUTPUT
3235237
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
DIFF, LOCKING
3235373
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
RETAINER-FORK
3234934
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
COVER-BEARING,CNTR DR.
3235241
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
CHAIN,SIL 101,.25P X .40W X58L
3234737
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
SEAL, TRIPLE LIP
3234113
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
PLUG,EXPANSION,1 1/4
3234249
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SUBASM., 39T, SIDE GEAR
3235374
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
BEARING, PLAIN
3234241
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SUBASM., 39T, SIDE GEAR
3235375
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
SUBASM., DIFF COVER
3235376
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
GEAR SUBASSEMBLY
3234469
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
SCREW, CAP HH M8-1.25 X 25
3235096
Superseded by 3236169
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
SUBASM., GEAR, 53T
3235378
|
$474.99 | ||
|
Available to order. Add to View Price |
|||
