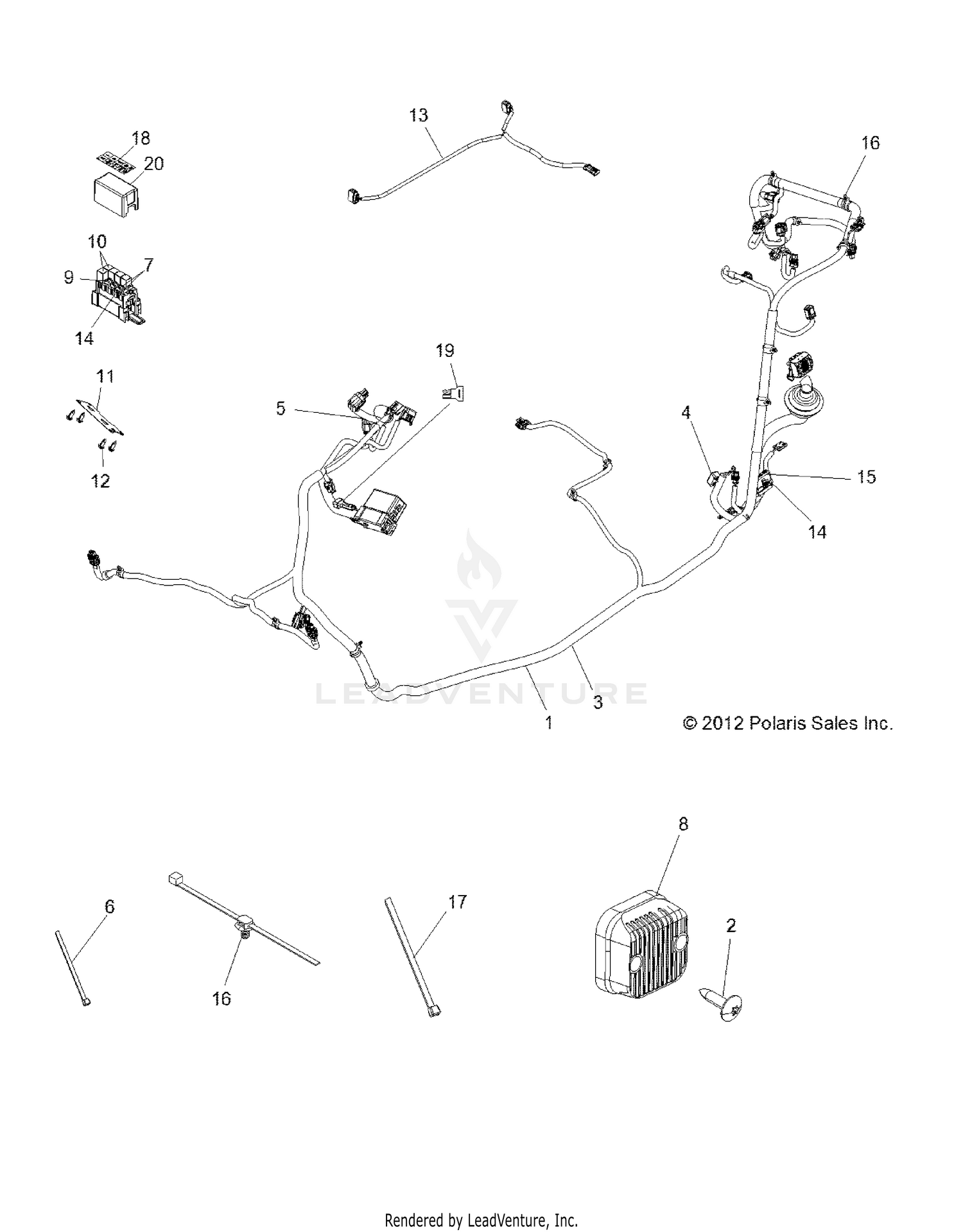

Electrical, Wire Harness - Z14vh57ad (49rgrharness13rzr570) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, CHASSIS
2412270
|
$949.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT-HARNESS,T-BAP,T-MAP
2875542
Superseded by 2878494
|
$139.99 | ||
|
Unavailable |
|||
|
#1
KIT, HARNESS, ENGINE TEMP
2878496
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, TPS
2878498
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, CPS
2878497
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, COIL
2878501
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, REGULATOR, AC IN
2878505
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, REGULATOR, DC OUT
2878506
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, IAC
2878507
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, STATOR
2878508
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, HEADLIGHT
2878493
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, PHASE SENSOR
2878504
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
KIT, FUSIBLE LINK, 1 MM
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BREAKER-CIRCUIT,20 AMP,SEALED
2410881
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DIAGNOSTIC W/CLIP
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
REGULATOR, 3 PH, 35 AMP
4012941
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FUSE MOUNT
5253675
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET
7661855
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HARNESS, BOX
2411805
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE-MAIN,30 AMP
2434015
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DECAL, POWER FUSE
7177211
|
$0.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DECAL, RELAY/FUSE BLOCK
7177181
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIODE, 6 AMP
2410000
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, RELAY/FUSE CENTER
5438758
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
