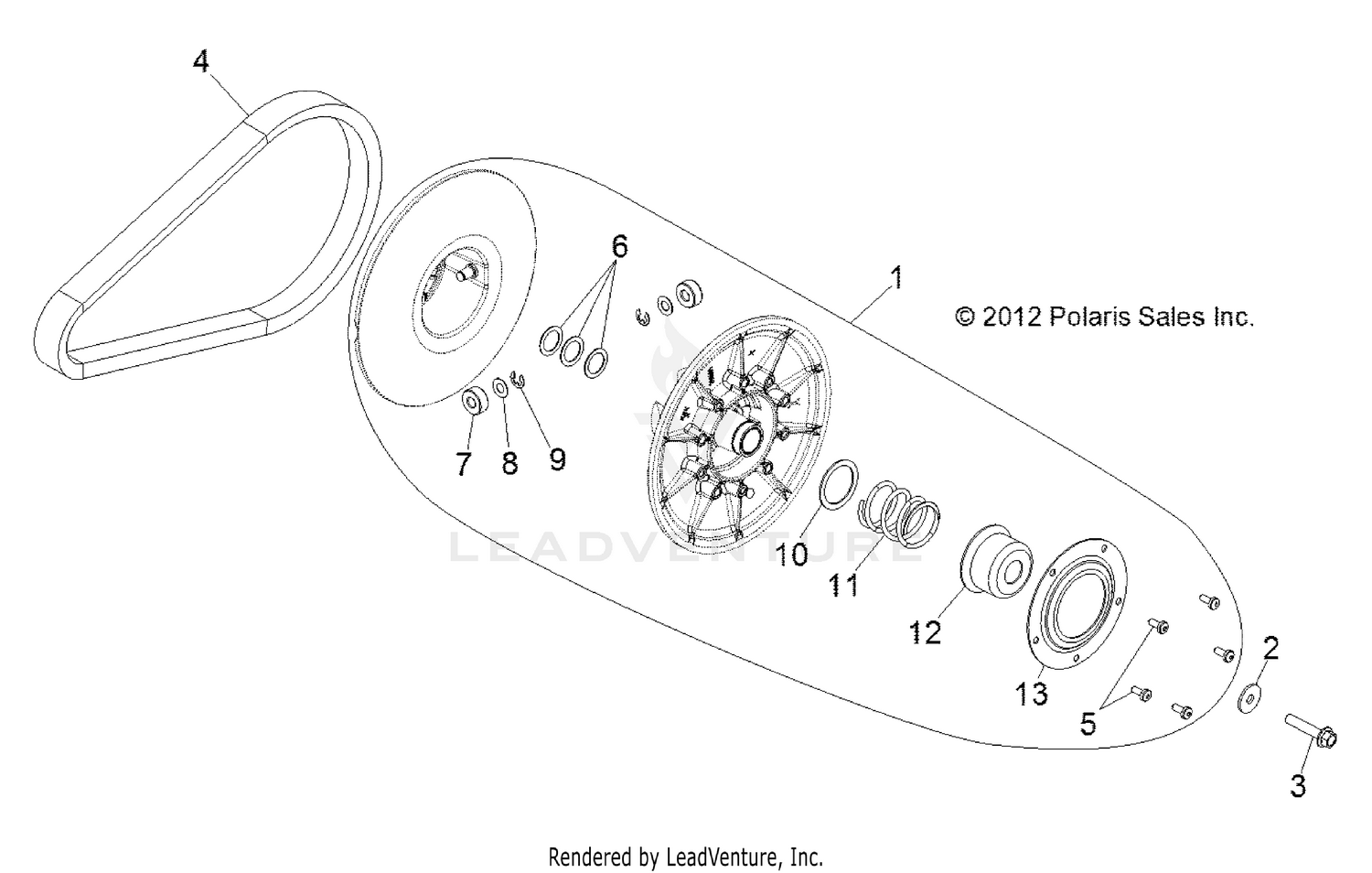

Drive Train, Secondary Clutch - Z14vh57ad (49rgrclutchdvn1323038) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., DRIVEN CLUTCH
1323070
|
$434.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, FLAT
7555846
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
7519210
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BELT, DRIVE
3211143
|
$104.99 | ||
|
Unavailable |
|||
|
#5
SCR-TORX,M6X1.0X16
7519735
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, THRUST
7556745
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROLLER-CLUTCH,.955 ODX.450
5439831
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, THRUST
7556226
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RET.E-RING-E T.375-TEAM#130059
7710523
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, FLAT
-------
|
|||
|
Unavailable |
|||
|
#11
SPRING-DRIVEN,104-173
7044015
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUP-SPRING,BOSS LW UTILITY
5256403
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, RETAINER
5256404
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
