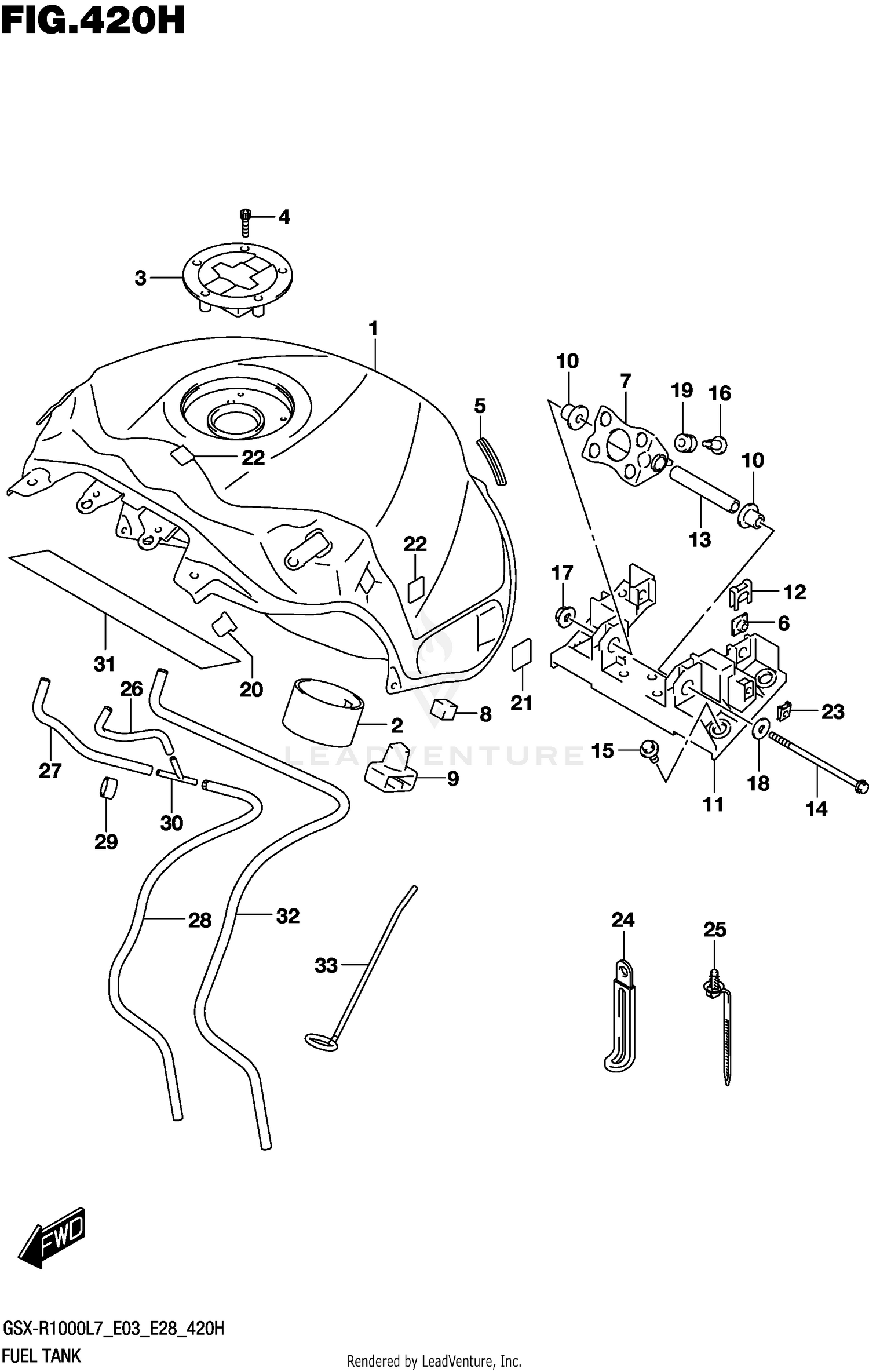

Fuel Tank (gsx-r1000al7 E03) (ykv,yvz) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
TANK ASSY,FUEL (BLACK)
44100-17K00-YKV
|
$944.68 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
TANK ASSY, FUEL (RED)
44100-17K00-YVZ
|
$980.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
VESSEL,FUEL TANK INNER
44121-17K00
Superseded by 44121-17K01
|
$15.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TANK FILLER
44200-17820
|
$205.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,FUEL TANK FILLER CAP
44244-11J00
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOLDING (L:50)
44552-24B10
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
44523-47H00
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET,FUEL TANK NO.1
44530-17K00
|
$27.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,FUEL TANK SIDE
44541-17K00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK REAR
44542-17K00
|
$10.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER,FUEL TANK REAR BRKT
44544-17K00
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET,FUEL TANK REAR
44551-17K00
|
$59.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP,NUT
44552-17K00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, JOINT
44561-18G00
|
$18.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X125)
09103-06033
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X18)
09111-06081
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW (6X22)
09139-06191
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT (M6)
09159-06086
|
$2.04 | ||
|
Unavailable |
|||
|
#18
WASHER
09160-06012
Superseded by 09160-06054
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION
09320-08071
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION,FUEL TANK COVER
44543-17K00
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
FASTENER (33X25X2.6)
44572-13G00
|
$12.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
FASTENER, COVER FRONT
44572-44G00
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT (M5)
09148-05052
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP (L:154)
09407-17403
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
.HOSE,FUEL TANK BRTHR NO.3
44424-15H10
Superseded by 44424-15H11
|
$12.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE, FUEL TANK BRTHR NO.1
44424-17K00
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
.HOSE,FUEL TANK BRTHR NO.2
44424-17K10
Superseded by 44424-17K11
|
$8.17 | ||
|
Unavailable |
|||
|
#29
HOSE (13.5X16.5X10)
09352-13162-010
|
$1.97 | ||
|
Unavailable |
|||
|
#30
3 WAY
09367-06007
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
PROTECTOR,FUEL TANK
44283-17K00
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE,FUEL TANK WATER DRAIN
44423-17K00
Superseded by 44423-17K02
|
$16.32 | ||
|
Unavailable |
|||
|
#33
STAY,FUEL TANK
44574-17K00
|
$33.03 | ||
|
Available to order. Add to View Price |
|||
