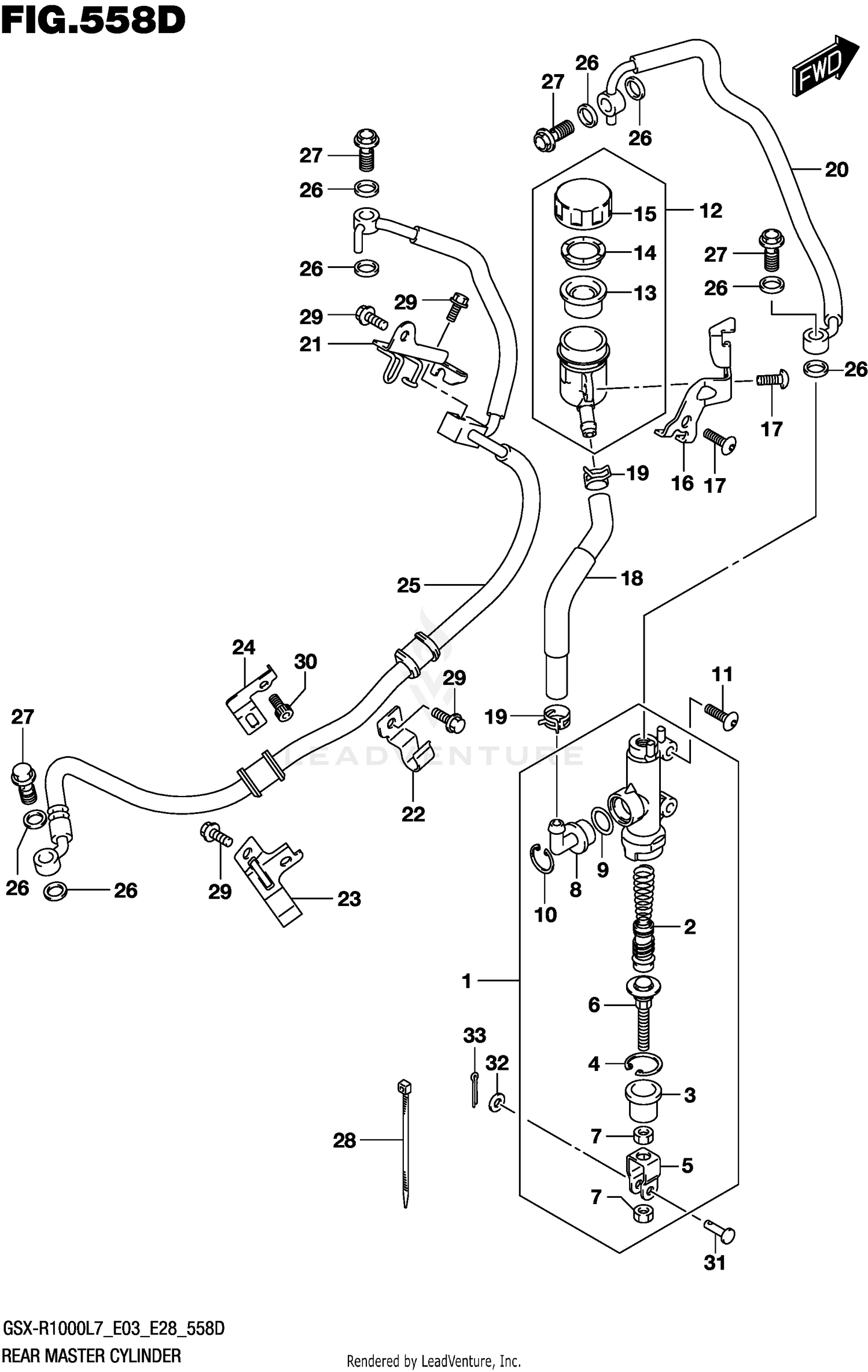

Rear Master Cylinder (gsx-r1000al7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,REAR MASTER
69600-47H30
Superseded by 69600-47H31
|
$222.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON / CAP SET
69600-34810
|
$56.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BOOT
69691-00A00
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
.CIRCLIP
69665-47H00
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
.YOKE
69692-47H00
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
.ROD, PUSH
69670-40A00
|
$25.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
.NUT
69693-47H00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CONNECTOR
69672-00B20
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
.O-RING
69686-34200
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
.CIRCLIP
69674-00B20
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
09139-06208
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK ASSY,REAR RESERVOIR
69740-17K00
|
$31.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
.DIAPHRAGM
59667-33J00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PLATE
59668-33J00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
.CAP
69669-17K00
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,RR RESERVOIR TANK
69750-17K00
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (6X16)
09139-06139
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,RR RESERVOIR TANK
69730-17K00
|
$15.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
09401-12404
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE ASSY, RR MASTER TO UNIT
69240-17K00
|
$56.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP,RR BRAKE HOSE
69260-17K00
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP,RR BRAKE HOSE
69268-17K00
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP,RR BRAKE HOSE
69270-17K00
|
$11.34 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP,RR BRAKE HOSE
69272-17K00
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE ASSY, RR UNIT TO CLPR
69480-17K10
|
$109.11 | ||
|
Available to order. Add to View Price |
|||
|
#26
.WASHER (10X15X1.5)
09161-10009
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
UNION
09360-10062
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP (L:145)
09407-14407
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
01547-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01547-0612A
|
$2.37 | ||
|
Unavailable |
|||
|
#31
PIN (6X18.2)
09200-06068
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
08322-0106A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
04111-2015A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
