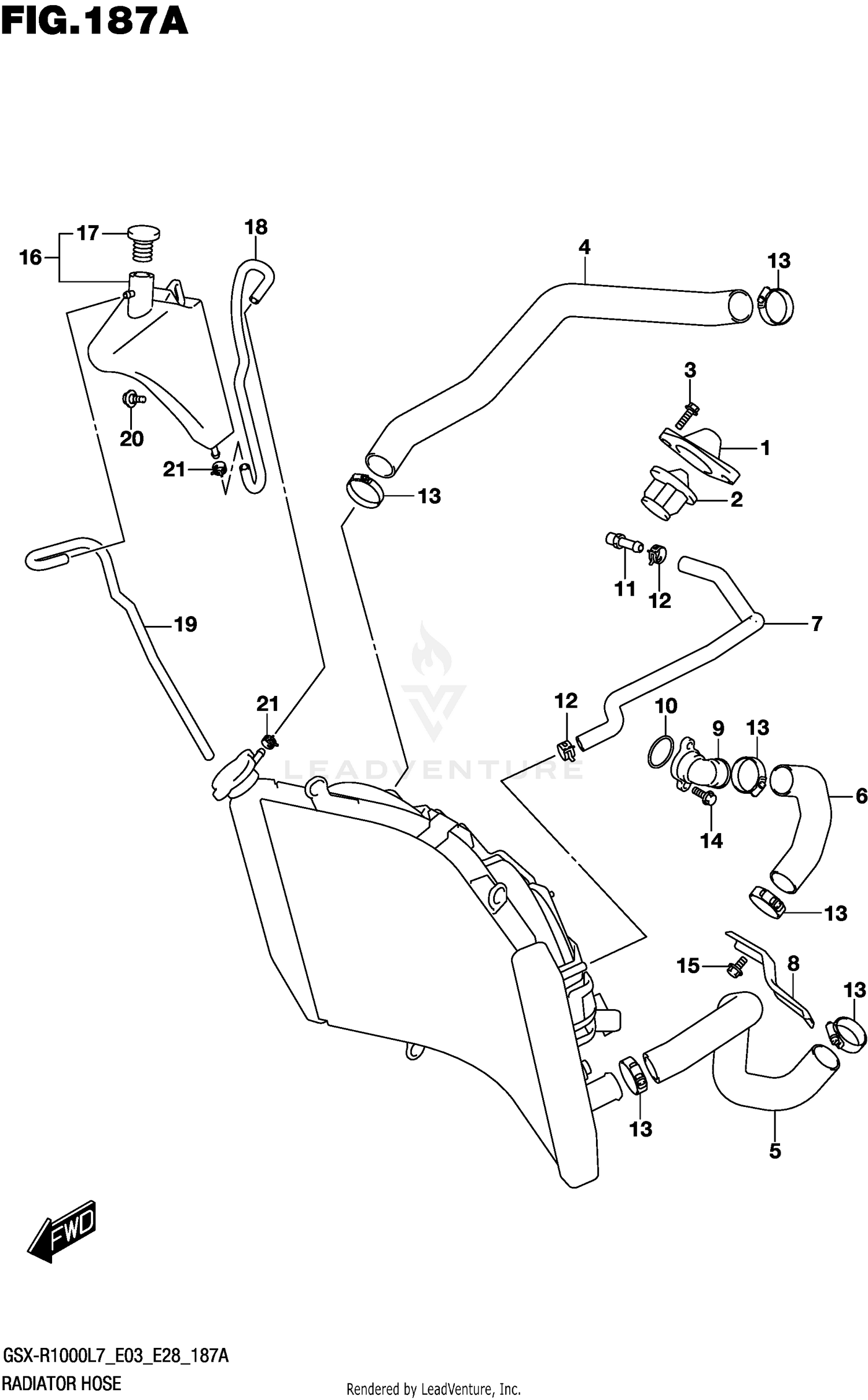

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,THERMOSTAT
17661-37H00
|
$36.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMOSTAT, WATER
17670-06G60
Superseded by 17670-06G61
|
$30.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-0620A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE,RDTR INLET
17851-17K00
|
$34.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE,RDTR OUTLET
17852-17K00
|
$36.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE,CYLINDER INLET
17853-17K00
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE,WATER BYPASS
17854-17K00
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,HOSE GUIDE
17859-17K00
|
$27.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR,CYL WATER INLET
17861-17K00
|
$44.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:2.4,ID:27.7)
09280-28005
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
UNION
09362-09011
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
09401-12414
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
09402-35501
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-0616A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-0612A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANK ASSY,RESERVOIR
17910-17K00
|
$77.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
.CAP
17931-31J00
|
$7.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,RESERVOIR TANK INLET
17981-17K00
|
$14.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE,RSVR TANK OVFL
17982-47H10
|
$13.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (6X12)
09111-06085
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09401-08411
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
