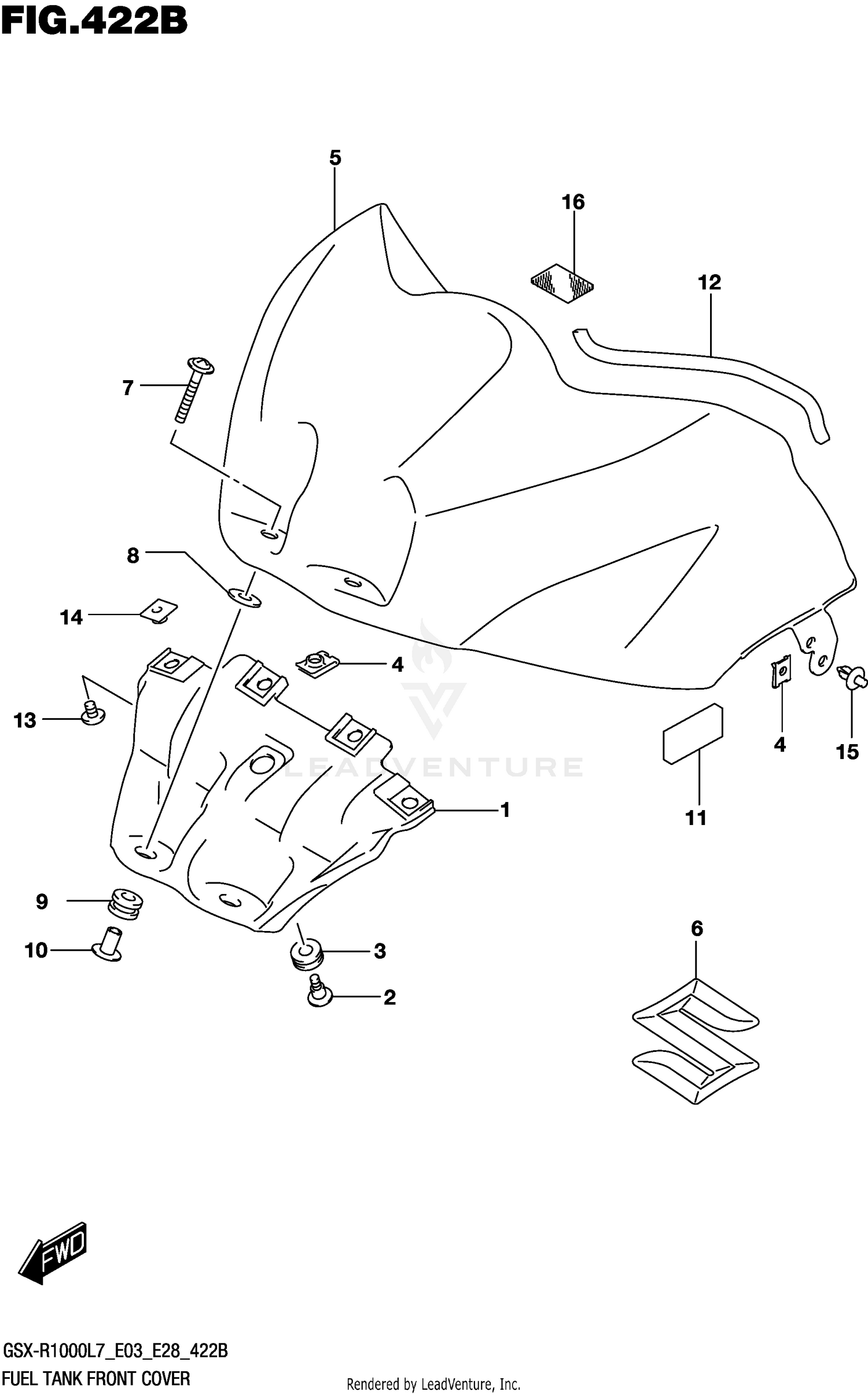

Fuel Tank Front Cover (ykv,yvz) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,FUEL TANK FRONT
44521-17K00
|
$86.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW (5X16.4)
09139-05078
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION (8.5X20X8)
09320-08021
Superseded by 09320-08510
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT (M5)
09148-05052
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
COVER COMP,FUEL
44290-17K00-YKV
Superseded by 44290-17K01-YKV
|
$227.50 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
COVER COMP,FUEL
44290-17K00-YVZ
Superseded by 44290-17K01-YVZ
|
$252.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM "S"
68111-47HA0
|
$47.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (6X40)
09139-06210
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-06012
Superseded by 09160-06054
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION (10X22X13)
09320-10050
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
44512-17K00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR (50X50X5)
33652-20C00
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION,FUEL TANK COVER (L:38
44277-17K00
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X10)
09139-06181
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
44523-47H00
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
FASTENER, COVER FRONT
44572-44G00
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
