2017 Suzuki GSX-R 1000 Throttle Body (gsx-r1000al7 E33) OEM Parts

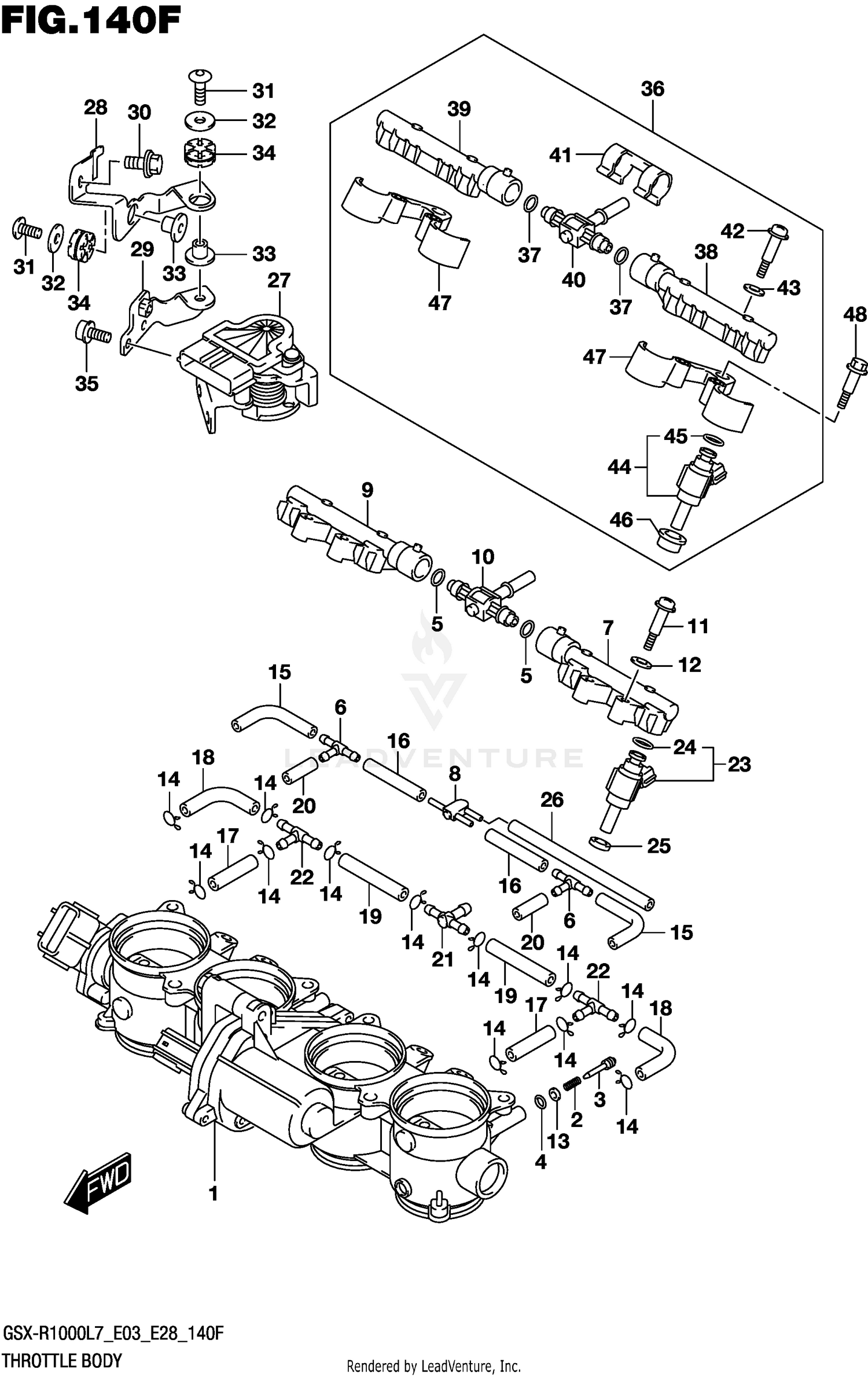

Throttle Body (gsx-r1000al7 E33) Diagram

Item	MSRP	Qty
#1 BODY ASSY,THROTTLE 13405-17K10	$1,606.98
Available to order. Add to View Price
#2 SPRING,THROTTLE SCREW 13268-48700	$4.82
Available to order. Add to View Price
#3 SCREW 13269-33E00	$12.32
Available to order. Add to View Price
#4 O-RING 13295-29900 Superseded by 13295-29901	$4.82
Available to order. Add to View Price
#5 O-RING 13374-32G00	$6.82
Available to order. Add to View Price
#6 .NIPPLE 13685-02FA0	$6.65
Available to order. Add to View Price
#7 .DELIVERRY PIPE 13471-17K00	$66.80
Available to order. Add to View Price
#8 .JOINT 13471-18H00	$9.90
Available to order. Add to View Price
#9 DELIVERY PIPE 13472-17K00	$66.80
Available to order. Add to View Price
#10 NIPPLE ASSY 13473-17K00	$67.32
Available to order. Add to View Price
#11 .SCREW 13601-29G00	$3.80
Available to order. Add to View Price
#12 PACKING 13602-29G00 Superseded by 13602-29G01	$2.57
Available to order. Add to View Price
#13 WASHER 13606-47A00	$3.10
Available to order. Add to View Price
#14 .CLIP 13671-29G00	$3.24
Unavailable
#15 HOSE (3.2X7.4X60) 13681-39F00-060 Superseded by 13681-39F01-060	$3.68
Available to order. Add to View Price
#16 .HOSE (L:425) 13683-10F60 Superseded by 13683-10F61	$16.13
Available to order. Add to View Price
#17 .HOSE (8.5X4.5X30) 13683-04K10	$11.44
Available to order. Add to View Price
#18 HOSE 13683-17K00	$45.50
Available to order. Add to View Price
#19 HOSE 13683-17K10	$14.50
Available to order. Add to View Price
#20 .HOSE (L:425) 13683-10F60 Superseded by 13683-10F61	$16.13
Unavailable
#21 .NIPPLE 13685-29G00	$9.92
Unavailable
#22 .NIPPLE 13685-38420	$14.08
Available to order. Add to View Price
#23 .INJECTOR ASSY 15710-04K00	$256.17
Available to order. Add to View Price
#24 .O-RING 15717-58B00	$11.05
Available to order. Add to View Price
#25 .SEAL 15722-14J00	$12.60
Available to order. Add to View Price
#26 .HOSE (3X7X600) 09355-30705-600 Superseded by 09355-30001-600	$9.15
Available to order. Add to View Price
#27 BODY ASSY,ACCELERATOR 13500-17K00	$315.67
Available to order. Add to View Price
#28 BRACKET,ACCEL SENSOR NO.1 13571-17K00	$12.72
Available to order. Add to View Price
#29 BRACKET , ACCEL SENSOR NO.2 13572-17K00	$8.83
Available to order. Add to View Price
#30 BOLT (6X12) 09116-06197	$2.77
Available to order. Add to View Price
#31 BOLT 09139-06208	$2.97
Available to order. Add to View Price
#32 WASHER (6.5X20X1.6) 09160-06088	$1.75
Available to order. Add to View Price
#33 SPACER (6.5X10X11.6) 09180-06319	$4.12
Available to order. Add to View Price
#34 CUSHION 09320-10055	$4.82
Available to order. Add to View Price
#35 BOLT 07120-0612B	$3.25
Available to order. Add to View Price
#36 BODY ASSY,2ND INJECTOR 15900-17K00	$589.97
Available to order. Add to View Price
#37 O-RING 13374-32G00	$6.82
Unavailable
#38 .DELIVERY PIPE 13471-17K00	$66.80
Unavailable
#39 DELIVERY PIPE 13472-17K00	$66.80
Unavailable
#40 NIPPLE ASSY 13473-17K00	$67.32
Unavailable
#41 .CLIP 13474-17K00	$16.13
Available to order. Add to View Price
#42 .SCREW 13601-29G00	$3.80
Unavailable
#43 PACKING 13602-29G00 Superseded by 13602-29G01	$2.57
Unavailable
#44 .INJECTOR ASSY 15710-17K10	$232.05
Available to order. Add to View Price
#45 .O-RING 15717-58B00	$11.05
Unavailable
#46 .INSULATOR 15722-17K00	$4.82
Available to order. Add to View Price
#47 .BRACKET,2ND INJECTOR 15910-17K00	$48.52
Available to order. Add to View Price
#48 BOLT 09111-06250	$8.10
Available to order. Add to View Price
