2017 Suzuki GSX-R 1000 Rear Fender (gsx-r1000l7 E03) OEM Parts

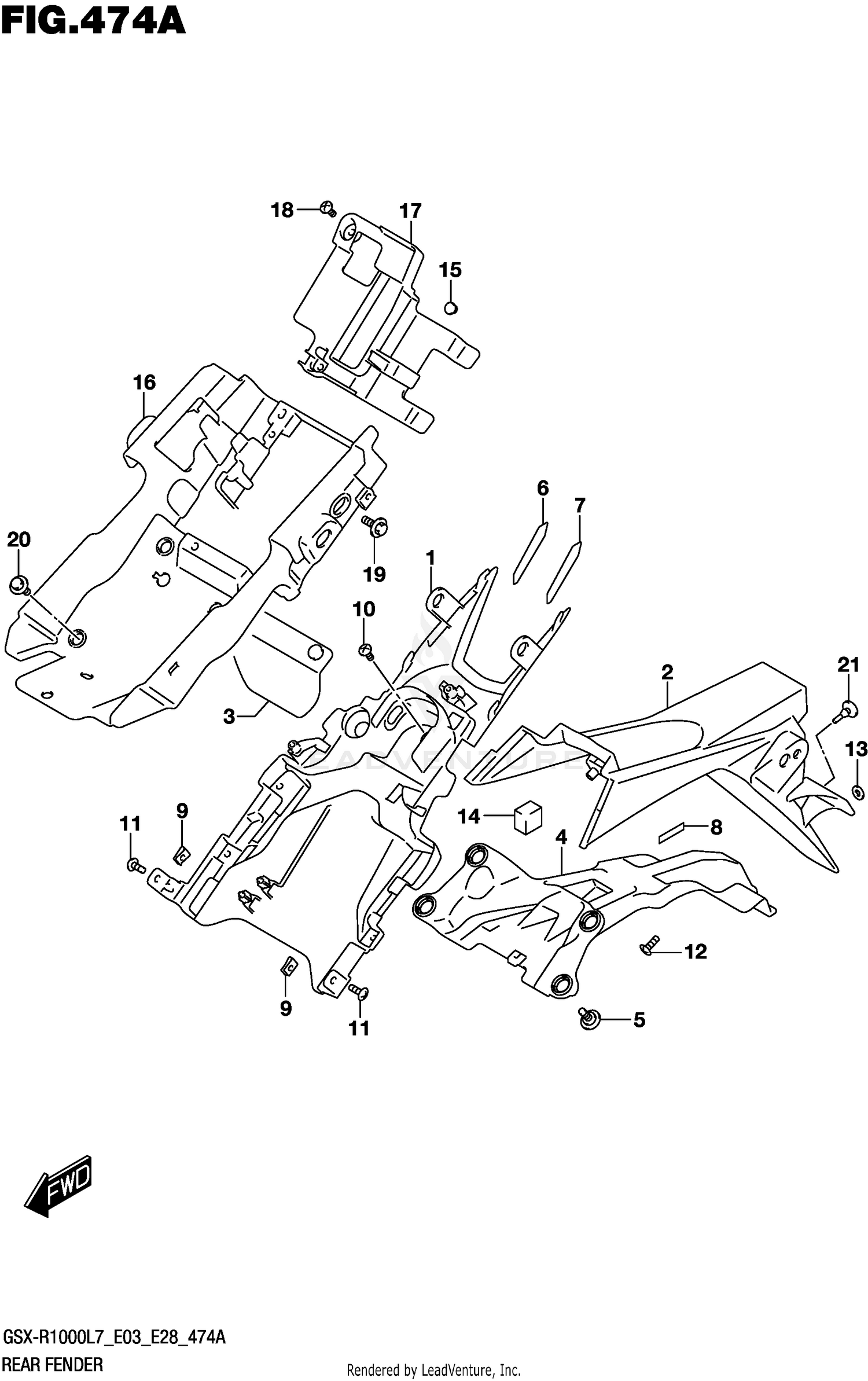

Rear Fender (gsx-r1000l7 E03) Diagram

Item	MSRP	Qty
#1 FENDER,REAR FRONT 63111-17K00	$28.40
Available to order. Add to View Price
#2 FENDER,REAR REAR 63113-17K00	$33.27
Available to order. Add to View Price
#3 MUDGUARD,REAR FENDER 63114-17K00	$9.02
Available to order. Add to View Price
#4 FENDER,REAR REAR INNER 63116-17K00	$52.67
Available to order. Add to View Price
#5 BOLT,REAR FENDER REAR 63117-17K00	$2.23
Available to order. Add to View Price
#6 TAPE,REAR COMB,R 63121-17K00	$3.00
Available to order. Add to View Price
#7 TAPE,REAR COMB,L 63122-17K00	$3.00
Available to order. Add to View Price
#8 TAPE (6X25X0.13) 94443-06G00	$3.60
Available to order. Add to View Price
#9 NUT 09148-05038	$2.08
Available to order. Add to View Price
#10 SCREW 03541-0512A	$1.45
Available to order. Add to View Price
#11 SCREW 03541-0516A	$1.45
Available to order. Add to View Price
#12 SCREW 03541-0516B	$1.88
Available to order. Add to View Price
#13 WASHER 08322-0106A	$1.95
Available to order. Add to View Price
#14 CUSHION 33652-05G20	$2.40
Available to order. Add to View Price
#15 PLUG, ELECTRIC PARTS HOLDER 45148-27J00	$16.72
Available to order. Add to View Price
#16 HOLDER,BATTERY 47431-17K00	$26.68
Available to order. Add to View Price
#17 HOLDER, ELECTRIC PARTS 47441-17K00	$22.20
Available to order. Add to View Price
#18 BOLT (6X18) 09111-06081	$4.53
Available to order. Add to View Price
#19 SCREW 03541-0516A	$1.45
Unavailable
#20 BOLT (6X14.3) 09111-06041	$2.67
Available to order. Add to View Price
#21 CUSHION 09321-06026	$3.00
Available to order. Add to View Price
