2017 Suzuki GSX-R 1000 Rear Cushion Lever (gsx-r1000al7 E28) OEM Parts

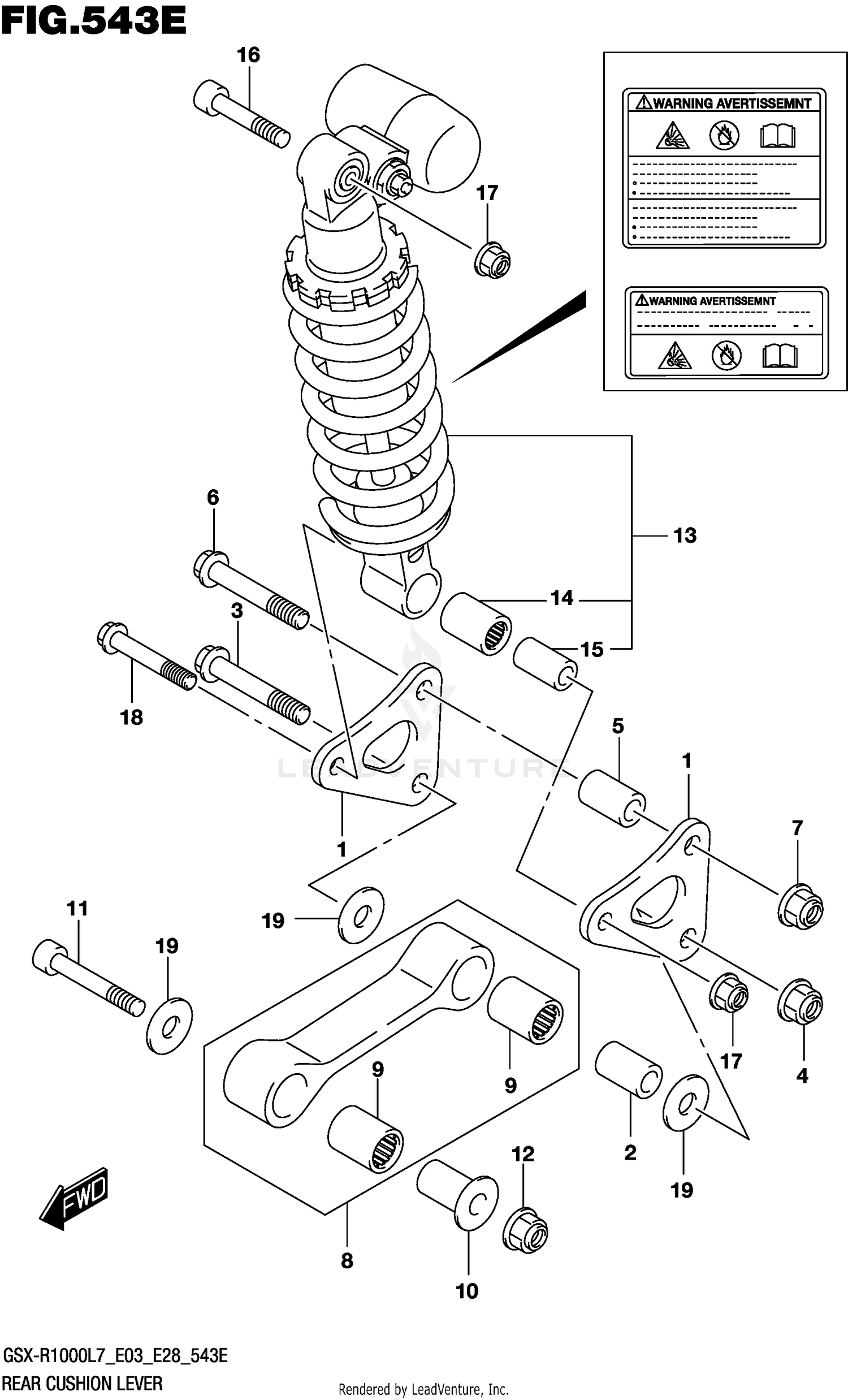

Rear Cushion Lever (gsx-r1000al7 E28) Diagram

Item	MSRP	Qty
#1 LEVER,REAR CUSHION 62611-17K00	$24.52
Available to order. Add to View Price
#2 SPACER, REAR 62317-27C10	$19.72
Available to order. Add to View Price
#3 BOLT, LOWER 62658-47H00	$10.76
Available to order. Add to View Price
#4 NUT 09159-12056	$8.67
Available to order. Add to View Price
#5 SPACER, UPPER 62317-44B00	$21.04
Available to order. Add to View Price
#6 BOLT, UPPER 62658-47H00	$10.76
Unavailable
#7 NUT 09159-12056	$8.67
Unavailable
#8 ROD SET,RR CUSH 62600-47810 Superseded by 62600-47811	$157.23
Available to order. Add to View Price
#9 .BEARING 09263-20074 Superseded by 09263-20116	$36.65
Available to order. Add to View Price
#10 SPACER, FRONT 62647-47H00	$35.30
Available to order. Add to View Price
#11 BOLT,RR CUSHION ROD 62658-04K00	$14.38
Available to order. Add to View Price
#12 NUT 09159-12056	$8.67
Unavailable
#13-1 ABSORBER ASSY, REAR SHOCK 62100-17810-019
Unavailable
#13-1 (BLACK) 62100-17810-019
Unavailable
#13-2 ABSORBER ASSY, REAR SHOCK 62100-17820-019	$1,058.25
Available to order. Add to View Price
#13-2 (BLACK) 62100-17820-019	$1,058.25
Unavailable
#14 .BEARING (17X24X32) 09263-17046	$41.45
Available to order. Add to View Price
#15 .SPACER, SHOCK ABS LOWER 62317-47H00	$20.46
Available to order. Add to View Price
#16 BOLT, RR SHOCK ABSORBER UPR 62658-04K10	$14.38
Available to order. Add to View Price
#17 NUT 09159-10115	$4.18
Available to order. Add to View Price
#18 BOLT 62313-47H00	$11.96
Available to order. Add to View Price
#19 WASHER (12X34X1.0) 09160-12037	$4.51
Available to order. Add to View Price
