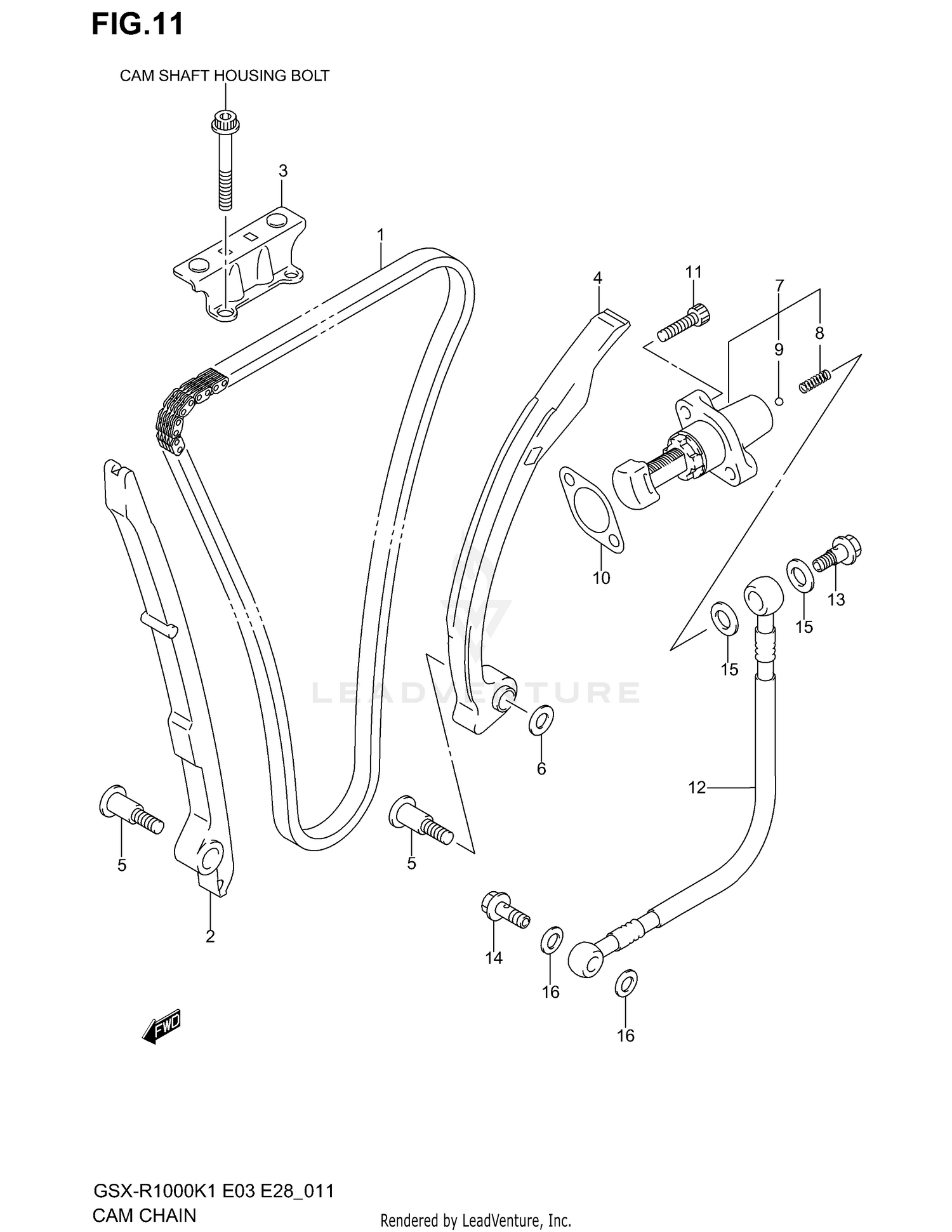

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN,CAMSHAFT DRIVE
12760-40F00
Superseded by 12760-40F01
|
$170.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-40F00
Superseded by 12771-40F02
|
$44.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN NO.2
12782-35F10
Superseded by 12782-35F11
|
$25.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER,CAM C
12811-40F00
Superseded by 12811-40F01
|
$55.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
12812-26B02
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
08322-01083
Superseded by 08322-0108A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADJUSTER ASSY, TENSIONER
12830-40F00
|
$176.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
12831-40F00
|
$4.92 | ||
|
Unavailable |
|||
|
#9
BALL
12839-35F00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, ADJUSTER
12837-35F00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07130-06253
Superseded by 07130-0625B
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, TENSIONER ADJUSTER OIL
12835-35F10
|
$98.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, OIL HOSE UNION NO.1
12836-40F00
|
$9.15 | ||
|
Unavailable |
|||
|
#14
BOLT
12838-35F00
Superseded by 12838-35F01
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, OIL HOSE NO.1
09168-12017
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, OIL HOSE NO.1
09168-12019
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
.GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
