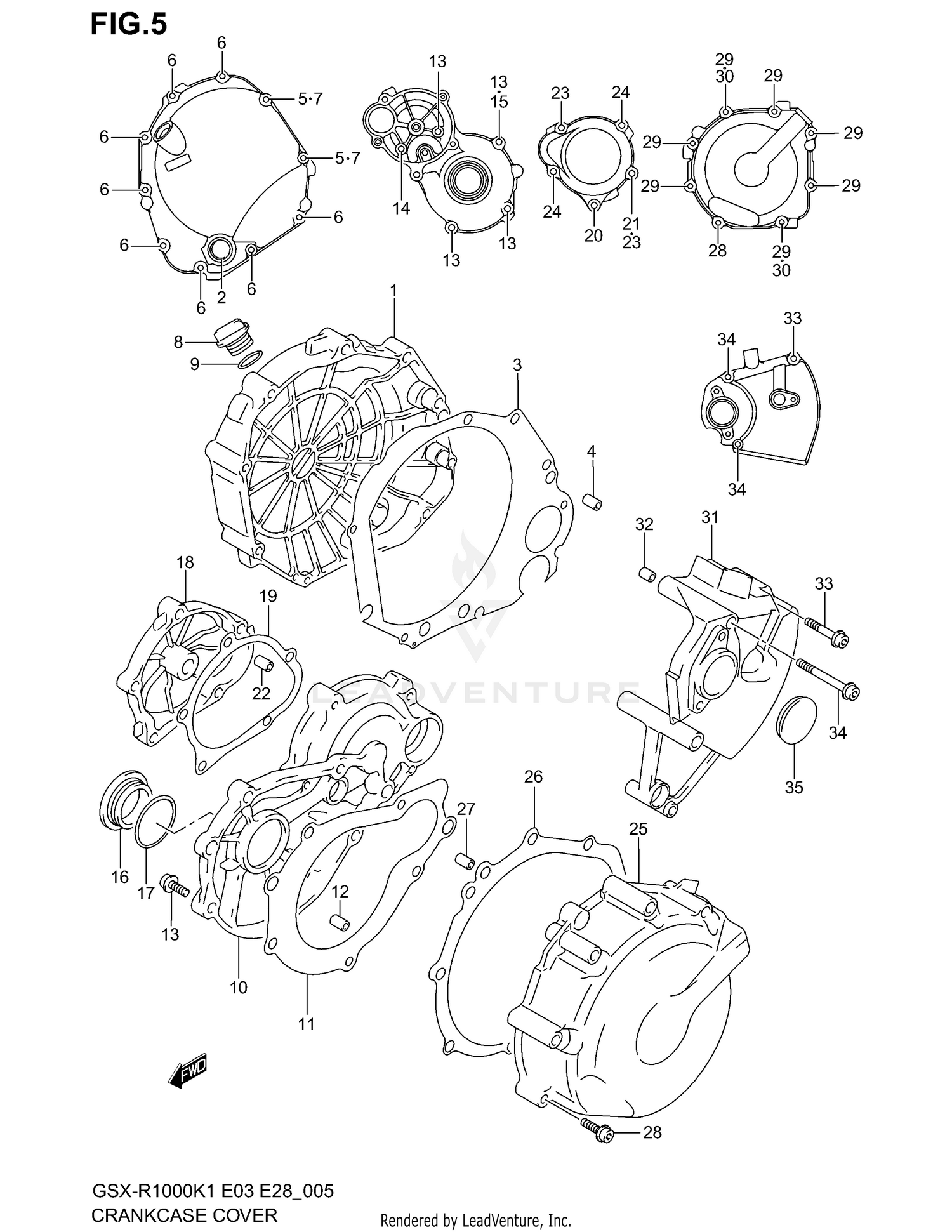

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-40F00
|
$273.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS,OIL LEVEL CHECK
11971-33210
|
$20.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
.GASKET, CLUTCH COVER
11482-40F00
Superseded by 11482-40F10
|
$17.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
04211-09189
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (5.8X13X1.2)
09168-06023
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
07120-06303
Superseded by 07120-0630B
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07120-06303
Superseded by 07120-0630B
|
$3.73 | ||
|
Unavailable |
|||
|
#8
PLUG, ENGINE OIL FILTER
11971-12C51
|
$7.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (D:3.1,ID:16.8)
09280-17003
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, STARTER CLUTCH
11381-35F00
Superseded by 11381-35F01
|
$234.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
.GASKET, STARTER CLUTCH COVER
11491-33E02
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
04211-09149
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CENTER
07120-06253
Superseded by 07120-0625A
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
07120-06353
Superseded by 07120-0635B
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET (5.8X13X1.2)
09168-06023
|
$2.15 | ||
|
Unavailable |
|||
|
#16
PLUG (36X10,SILVER)
09259-36016-20H
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, SHAFT HOLE
09259-36021
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (D:3.1,ID:32.7)
09280-33004
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, STARTER IDLE GEAR
11382-33E00
|
$84.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
11492-33E00
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
07120-06553
Superseded by 07120-0655B
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, BOLT (5.8X13X1.2)
09168-06023
|
$2.15 | ||
|
Unavailable |
|||
|
#22
PIN
04211-09149
|
$1.75 | ||
|
Unavailable |
|||
|
#23
BOLT, CENTER
07120-06253
Superseded by 07120-0625A
|
$2.65 | ||
|
Unavailable |
|||
|
#24
BOLT
07120-06353
Superseded by 07120-0635B
|
$3.62 | ||
|
Unavailable |
|||
|
#25
COVER, MAGNETO
11351-35F02
|
$201.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
11483-35F00
|
$12.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN
04211-09149
|
$1.75 | ||
|
Unavailable |
|||
|
#28
BOLT
07120-06303
Superseded by 07120-0630B
|
$3.73 | ||
|
Unavailable |
|||
|
#29
BOLT
07120-06453
Superseded by 07120-0645B
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET (5.8X13X1.2)
09168-06023
|
$2.15 | ||
|
Unavailable |
|||
|
#31
COVER, ENGINE SPROCKET
11361-40F00
Superseded by 11361-40F01
|
$273.13 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN
04211-09129
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
07120-06553
Superseded by 07120-0655B
|
$3.73 | ||
|
Unavailable |
|||
|
#34
BOLT
07120-06903
Superseded by 07120-0690B
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP, CLUTCH RELEASE ADJUST
09250-30003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
