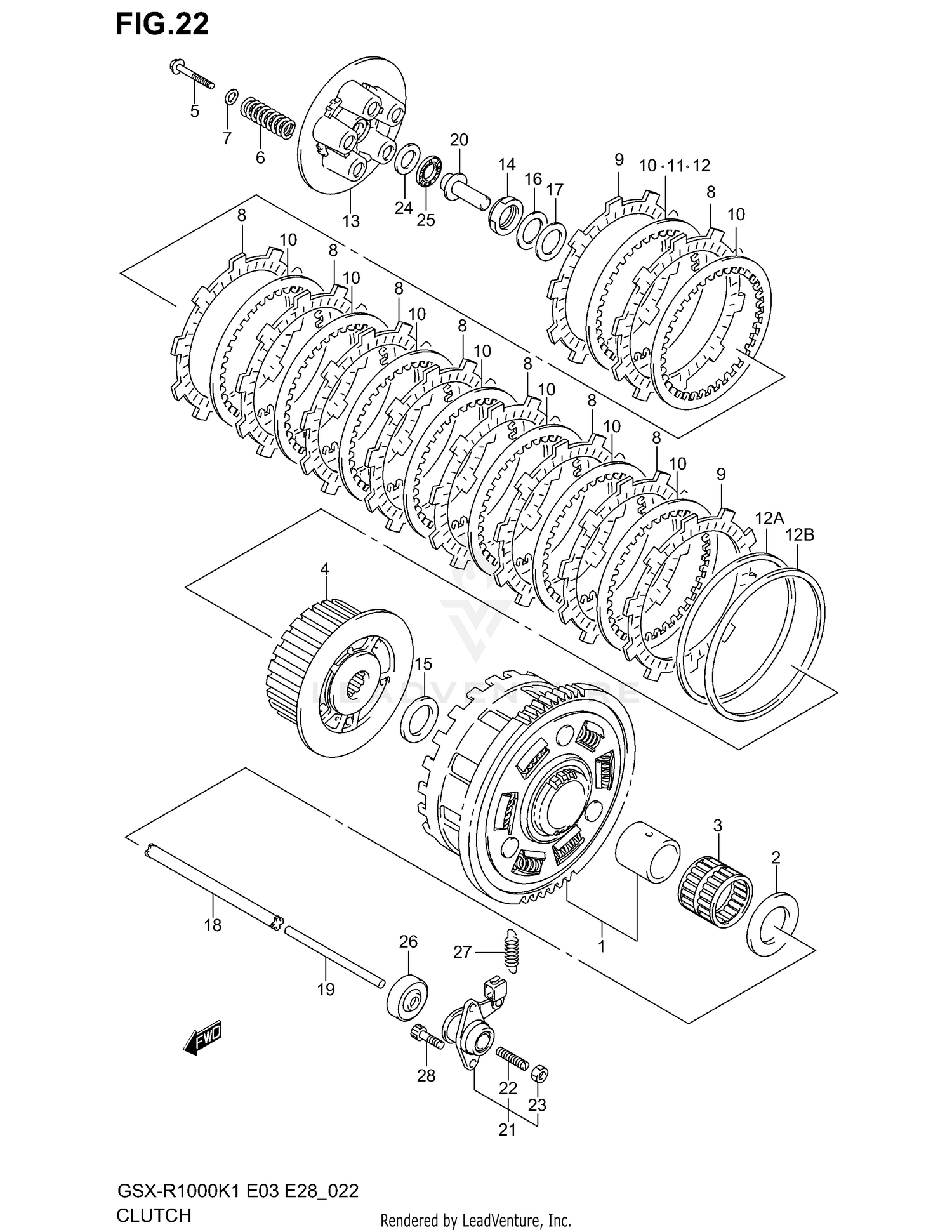

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-40850
Superseded by 21200-40860
|
$482.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (25X54X2.4)
09160-25073
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (35X40X35.8)
09263-35017
|
$43.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, CLUTCH SLEEVE
21410-40F00
Superseded by 21410-40F01
|
$107.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,CLUTCH SPRING
21482-40F00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CLUTCH
21413-40F00
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, CLUTCH SPRING
21414-29F00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH DRIVE,NO.1
21441-40F00
|
$26.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH DRIVE,NO.2
21441-40F10
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVEN
21451-40F00
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH DRIVEN NO.2
21451-40F10
|
$13.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, CLUTCH DRIVEN NO.3
21451-40F20
|
$12.54 | ||
|
Available to order. Add to View Price |
|||
|
#12A
SEAT, WAVE WASHER
21471-40F00
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#12B
WASHER, CLUTCH PLATE WAVE
21472-40F00
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISC, CLUTCH PRESSURE
21462-40F00
|
$60.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CLUTCH SLEEVE HUB
09159-24010
|
$14.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CLUTCH SLEEVE THR
09160-25056
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, CLUTCH WAVE
09164-24006
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SLEEVE HUB NUT
09181-25223
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD,CLUTCH PUSH,R
23110-38B00
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD,CLUTCH PUSH,L
23111-35F00
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIECE, CLUTCH PUSH
23121-31E00
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW ASSY,CLUTCH RELEASE
23200-35F01
|
$73.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW (6X25)
09134-06010
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
.NUT
08310-00067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, CLUTCH PUSH
09160-15045
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, CLUTCH PUSH
09263-15003
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL, CLUTCH PUSH ROD
09285-06011
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, CLUTCH RELEASE
09443-09044
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
