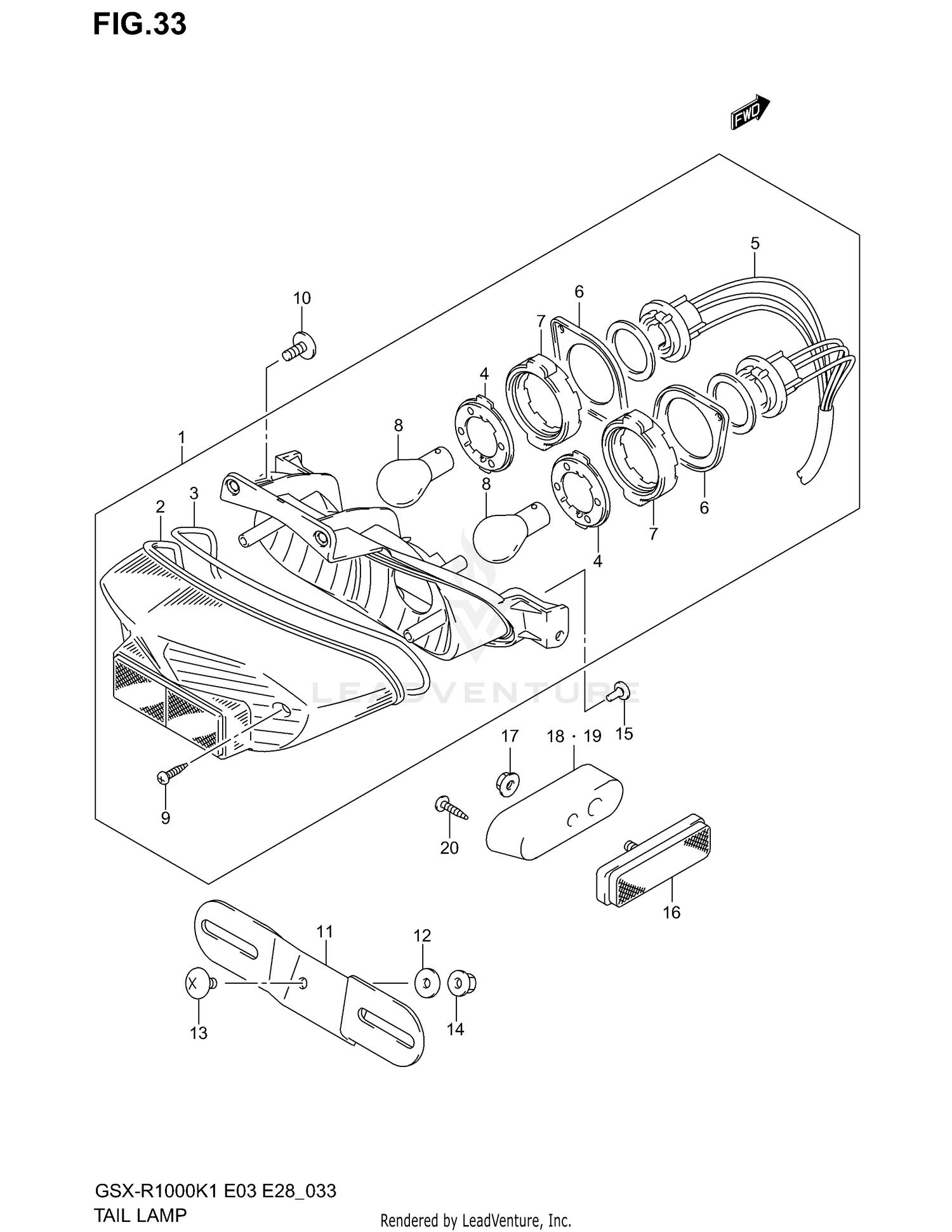

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-35F31
|
$145.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35712-35F30
|
$50.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35713-35F00
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, NO.1
35716-48B21
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET & CORD
35718-35F00
|
$60.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, NO.2
35736-48B21
|
$20.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
35765-48B21
|
$12.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03211-04207
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02142-05103
Superseded by 02142-0510B
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, LICENSE PLATE
35927-35F00
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (6.5X20X1.6)
09160-06088
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08316-10063
Superseded by 08316-1006B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, LICENSE PLATE
09321-06026
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFLECTOR ASSY,RR
35970-07F00
Superseded by 35970-07F01
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08316-10053
Superseded by 08316-1005A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, REAR SIDE RH
35978-40F00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, REAR SIDE LH
35979-40F00
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
03541-04163
Superseded by 03541-0416A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
