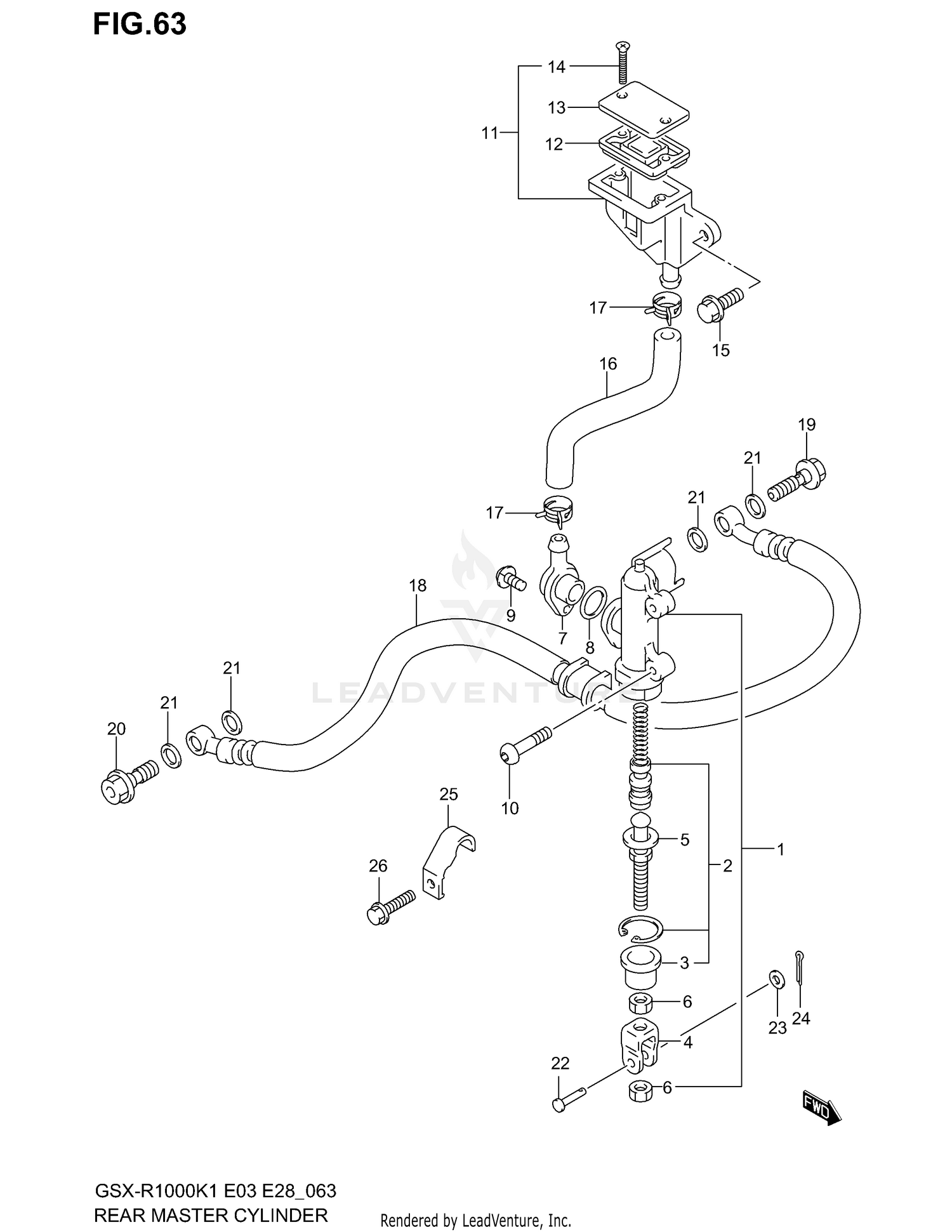

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-33C00
|
$273.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
69600-04820
Superseded by 69600-04821
|
$35.82 | ||
|
Unavailable |
|||
|
#3
.BOOT
69691-00A00
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
YOKE
69692-27A30
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
.ROD,PUSH
69670-48B00
|
$29.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
69693-05A00
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR
69672-05A00
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
.O-RING
69686-34200
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SCREW
02112-74123
Superseded by 02112-7412A
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X20)
09139-06028
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK ASSY,RR RESERVOIR
69740-01D02
|
$78.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
59667-04700
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
59669-05D00
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
69689-04A00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
09103-06222
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, RESERVOIR TANK
69731-35F00
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09401-13417
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,RR BRAKE
69480-40F00
Superseded by 69480-40F01
|
$63.11 | ||
|
Unavailable |
|||
|
#19
UNION
09360-10041
Superseded by 09360-10061
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
UNION
09360-10042
Superseded by 09360-10062
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
.WASHER (10X15X1.5)
09161-10009
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN (6X18.2)
09200-06037
Superseded by 09200-06068
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
08322-01063
Superseded by 08322-0106B
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP, RR BRAKE HOSE
69268-40F00
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
09103-06223
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
