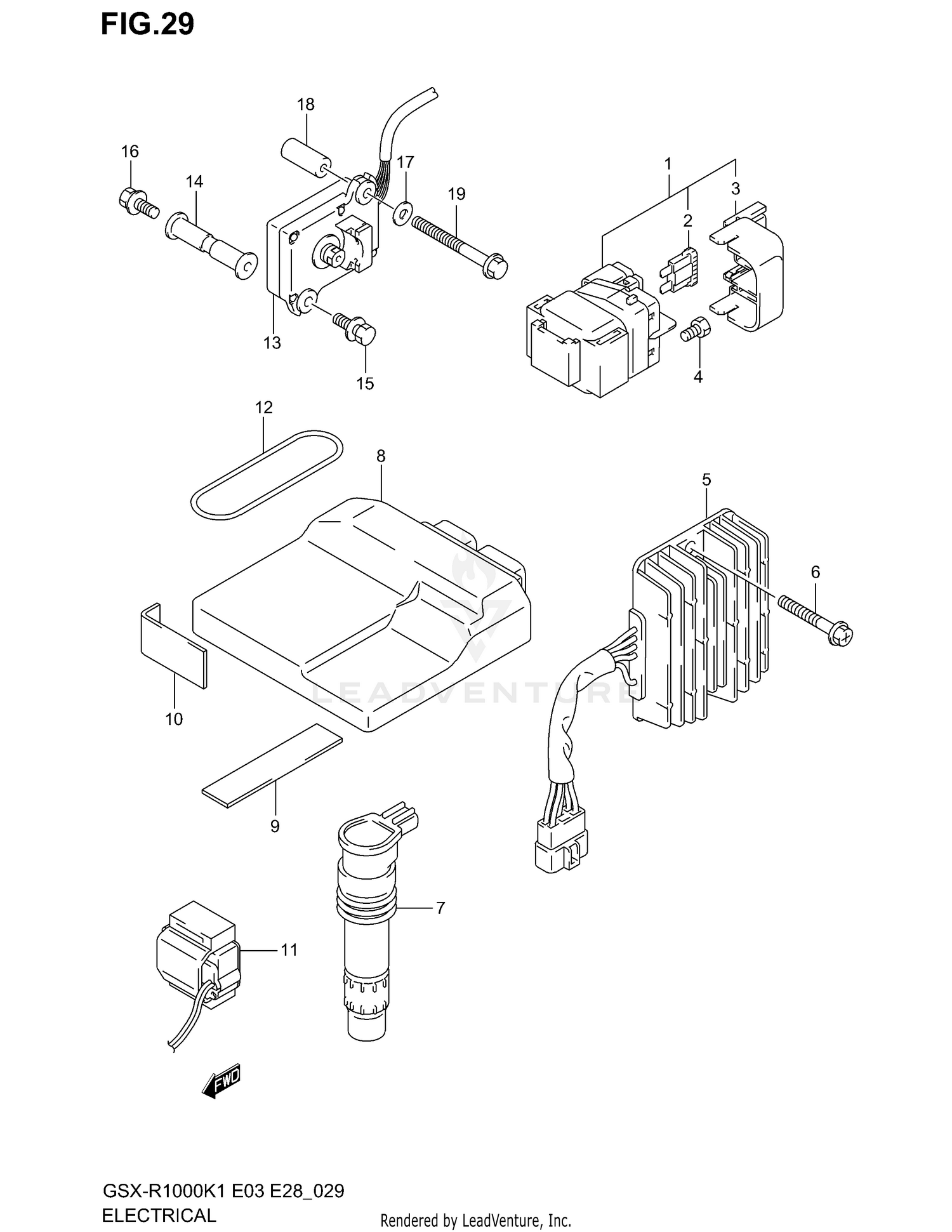

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-35F00
|
$108.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (30A)
09481-30101
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, STARTER
31861-26E00
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X8)
09128-06013
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-33E10
Superseded by 32800-33E21
|
$292.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-33E20
Superseded by 32800-33E21
|
$292.08 | ||
|
Unavailable |
|||
|
#6
BOLT (6X20)
01550-06203
Superseded by 01550-0620A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY, IGNITION
33410-35F00
|
$155.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY,IGNITION
33410-35F10
Superseded by 33410-35F11
|
$158.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONTROL UNIT, FI
32920-40F30
|
$1,360.78 | ||
|
Unavailable |
|||
|
#8
CONTROL UNIT, FI
32920-40FD0
|
$1,429.12 | ||
|
Unavailable |
|||
|
#9
CUSHION, FI (80X80X2)
33652-07D00
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR (170X95X3.0)
33651-37000
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR ASSY,FUE
33960-02F00
Superseded by 33960-02F01
|
$100.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (D:3.53,ID:69.44)
09280-70004
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
ACTUATOR ASSY
33970-19D10
Superseded by 33970-19D11
|
$512.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER, ACTUATOR
33971-40F00
|
$24.74 | ||
|
Unavailable |
|||
|
#15
BOLT (6X25)
09116-06025
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
09116-06184
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (6.5X18X1.6)
09160-06109
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (6.2X15.5X35)
09180-06323
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-06703
Superseded by 01550-0670B
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
