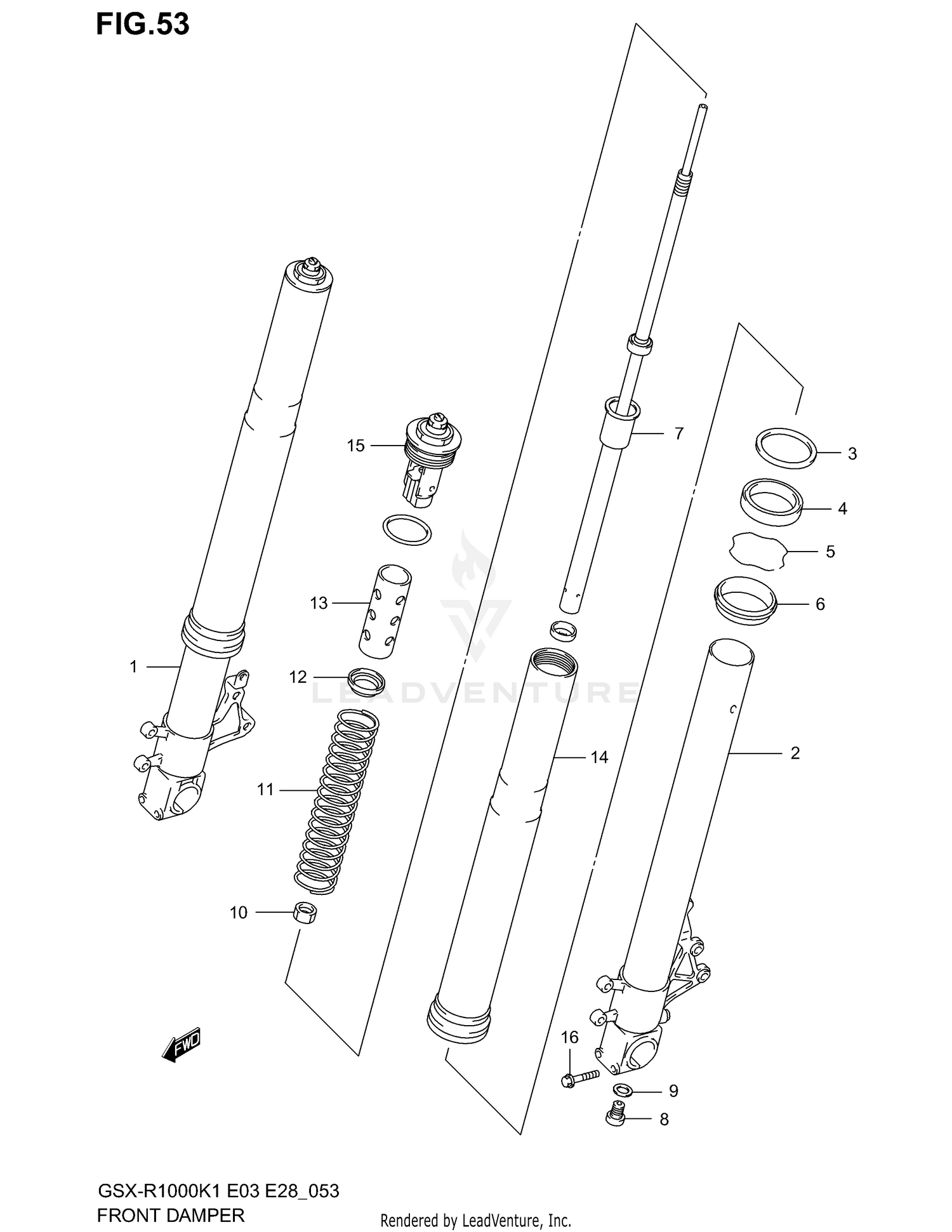

Front Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
DAMPER ASSY, FRONT FORK RH
51103-40F10
|
$1,927.64 | ||
|
Available to order. Add to View Price |
|||
|
#
DAMPER ASSY, FRONT FORK LH
51104-40F00
|
$1,568.20 | ||
|
Unavailable |
|||
|
#1
TUBE, INNER RH
51110-40F00
|
$783.75 | ||
|
Unavailable |
|||
|
#2
TUBE, INNER LH
51120-40F00
|
$783.75 | ||
|
Unavailable |
|||
|
#3
WASHER
51158-40F00
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, OIL
51153-40F00
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
51156-14200
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
51173-02FA0
|
$29.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
CYLINDER
51146-40F00
|
$359.85 | ||
|
Unavailable |
|||
|
#8
BOLT
51147-40C00
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
51148-40300
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
51129-24F00
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, FRONT
51171-40F00
|
$93.41 | ||
|
Unavailable |
|||
|
#12
GUIDE, SPRING
51158-24F00
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, SPRING
51176-40F00
|
$20.54 | ||
|
Unavailable |
|||
|
#14
TUBE, OUTER (GOLD)
51130-40F00
|
$599.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, FRONT FORK
51351-40F00
|
$233.92 | ||
|
Unavailable |
|||
|
#16
BOLT
51328-40F00
Superseded by 51328-31FA0
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
