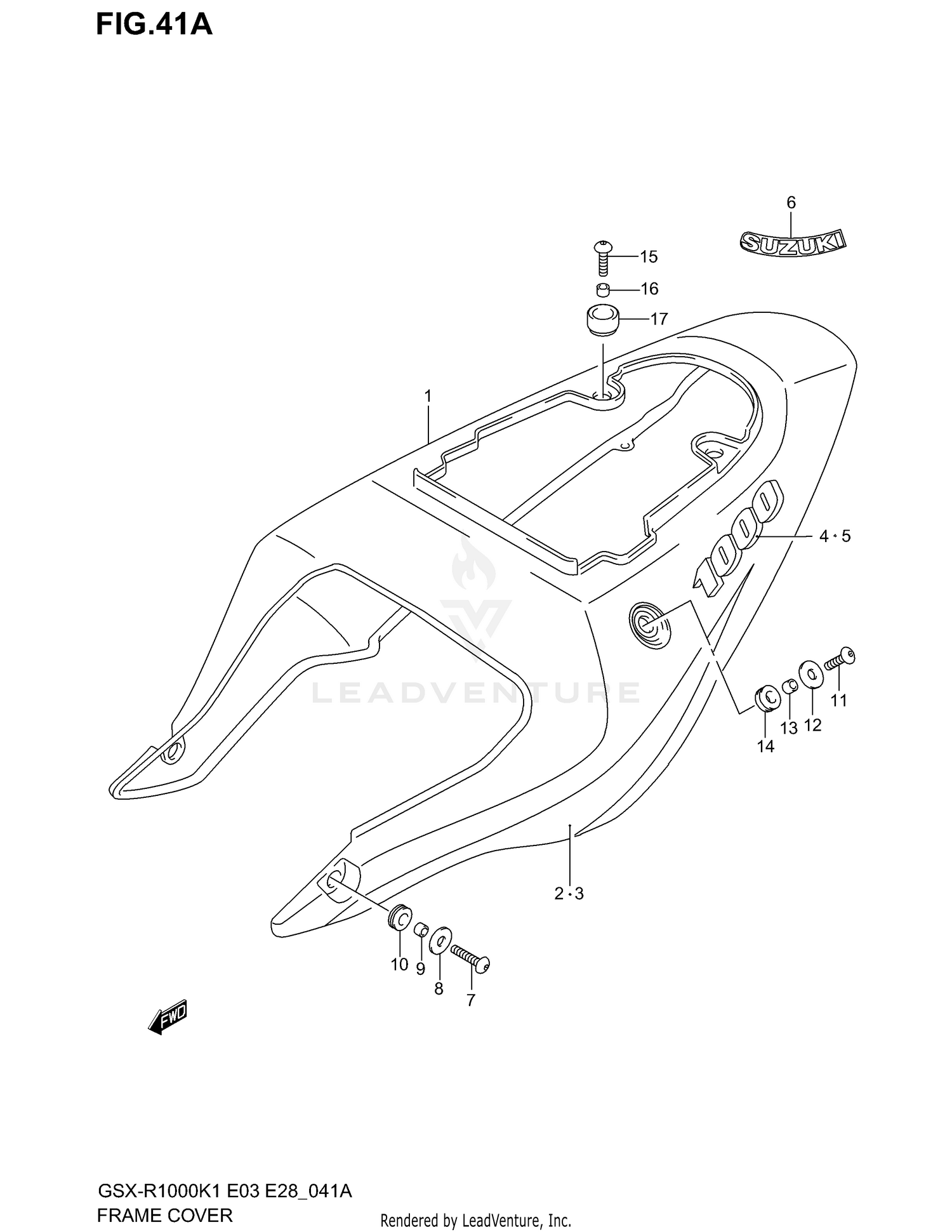

Frame Cover (model K2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER ASSY, FRAME
47100-40F10-CT5
|
$1,237.98 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER ASSY, FRAME
47100-40F20-FP2
|
$796.00 | ||
|
Unavailable |
|||
|
#1
COVER ASSY, FRAME
47100-40F20-CY9
|
|||
|
Unavailable |
|||
|
#2
TAPE, RH (BLUE)
68135-40F20-1LE
|
$75.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE, RH (YELLOW)
68135-40F20-Y7M
|
$54.71 | ||
|
Unavailable |
|||
|
#2
TAPE, RH (BLUE)
68135-40F20-YC2
|
|||
|
Unavailable |
|||
|
#3
TAPE, LH (BLUE)
68145-40F20-1LE
|
$73.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE, LH (YELLOW)
68145-40F20-Y7M
|
$51.07 | ||
|
Unavailable |
|||
|
#3
TAPE, LH (BLUE)
68145-40F20-YC2
|
|||
|
Unavailable |
|||
|
#4
EMBLEM, "1000"
68131-40F00-FS8
|
$23.91 | ||
|
Unavailable |
|||
|
#5
EMBLEM, "1000"
68131-40F10-HU1
|
$30.72 | ||
|
Unavailable |
|||
|
#5
EMBLEM, "1000"
68131-40F10-HU2
|
|||
|
Unavailable |
|||
|
#6
EMBLEM, "SUZUKI" (WHITE)
68131-39F00-0JW
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM,FRAME CO
68131-39F00-YD8
Superseded by 68131-39F01-YD8
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FRONT
09139-06042
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (6.5X22X2.0)
09160-06047
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
09180-06283
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, FRONT
47161-35F00
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, SIDE
09139-06029
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (6.5X22X2.0)
09160-06047
|
$2.02 | ||
|
Unavailable |
|||
|
#13
SPACER
09180-06283
|
$2.02 | ||
|
Unavailable |
|||
|
#14
CUSHION, SIDE
47161-35F10
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, UPPER
09139-06029
|
$5.73 | ||
|
Unavailable |
|||
|
#16
SPACER
09180-06286
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
09320-10045
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
