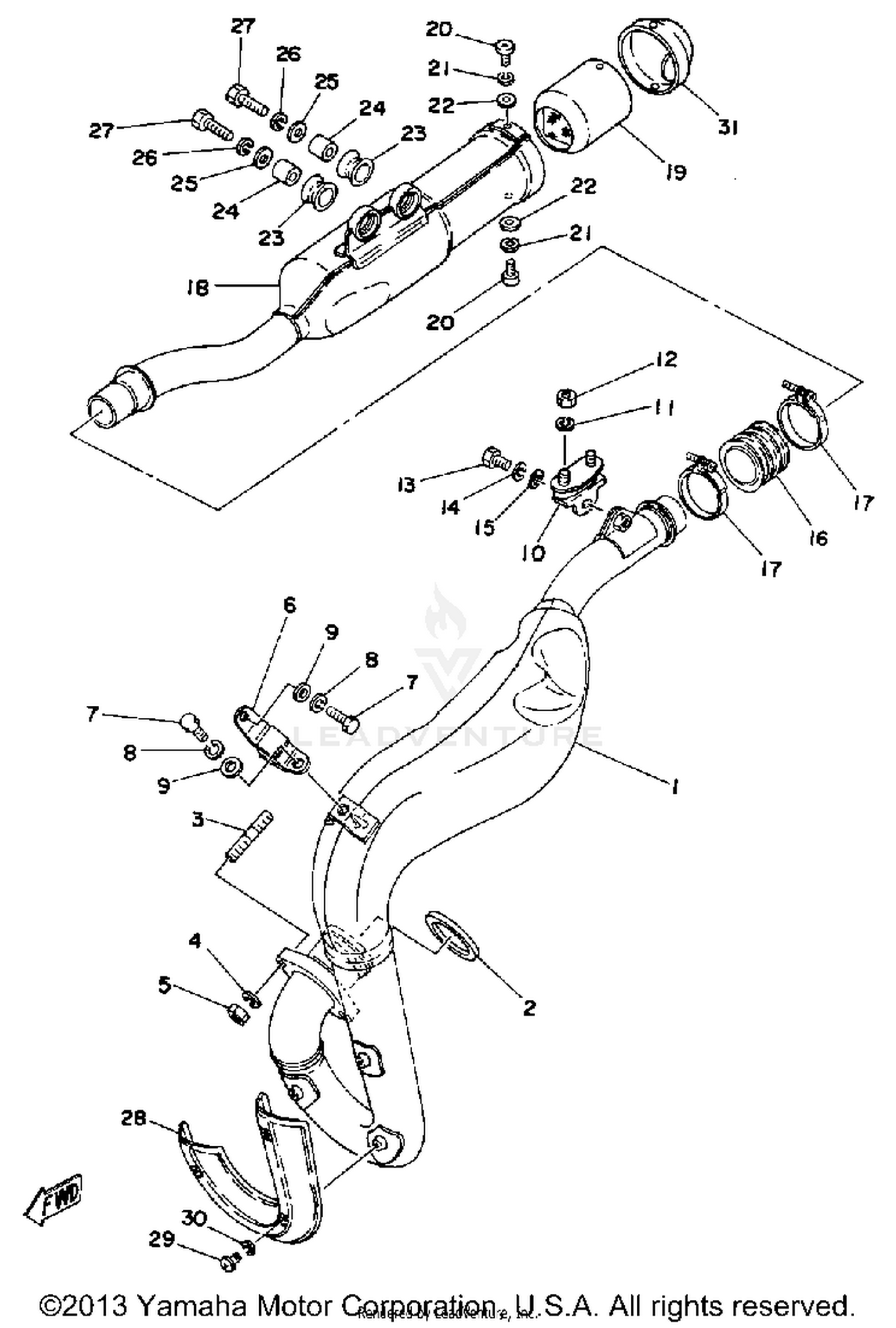

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLYL
3J4-14610-00-00
|
$333.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
214-14613-00-00
Superseded by 214-14613-09-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
90116-08264-00
Superseded by 90116-08408-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, MUFFLER 2
1M1-14772-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, MUFFLER 1
2N6-14771-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, MUFFLER
1M1-14714-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SILENCER, EXHAUST
2N6-14753-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#19
ARRESTER, SPARK
1E6-14786-01-00
|
$47.04 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
PROTECTER, MUFFLER 2
1M1-14728-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#29
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, SILENCER
2N6-14787-00-00
|
$6.86 | ||
|
Unavailable |
|||
