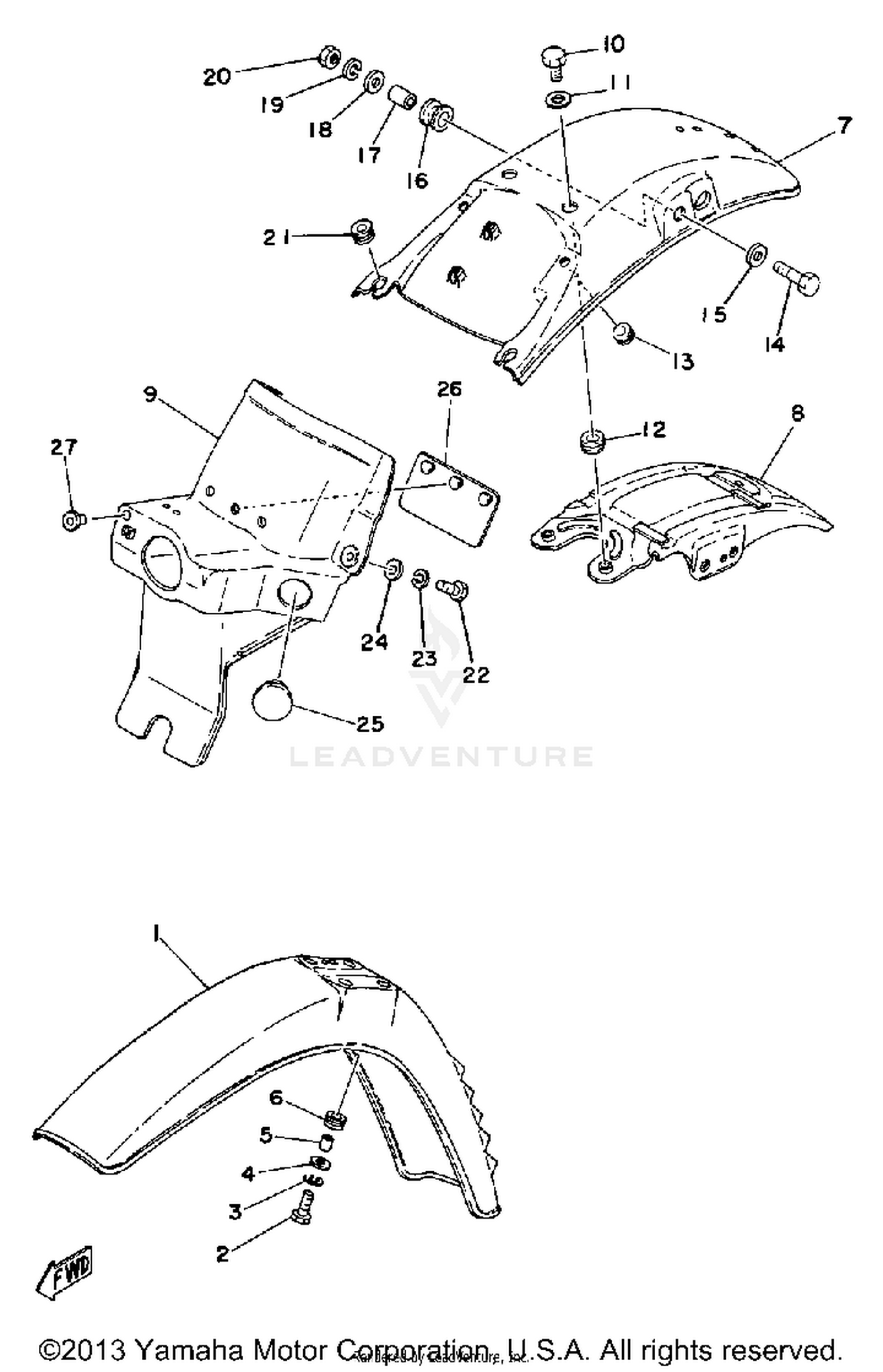

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
2N6-21511-00-26
|
$58.26 | ||
|
Unavailable |
|||
|
#2
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-14198-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
2N6-21611-00-26
|
$27.76 | ||
|
Unavailable |
|||
|
#8
BRACKET, FENDER
1R7-21617-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#9
GUARD, MUD
1M2-21620-02-00
|
$18.66 | ||
|
Unavailable |
|||
|
#10
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-15058-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-10208-00
|
$2.19 | ||
|
Unavailable |
|||
|
#14
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL SHAP
90209-09155-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#24
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#25
GROMMET
90480-01230-00
|
$2.39 | ||
|
Unavailable |
|||
|
#26
FLAP
1M1-21621-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER 1
395-21638-00-00
|
$1.18 | ||
|
Unavailable |
|||
