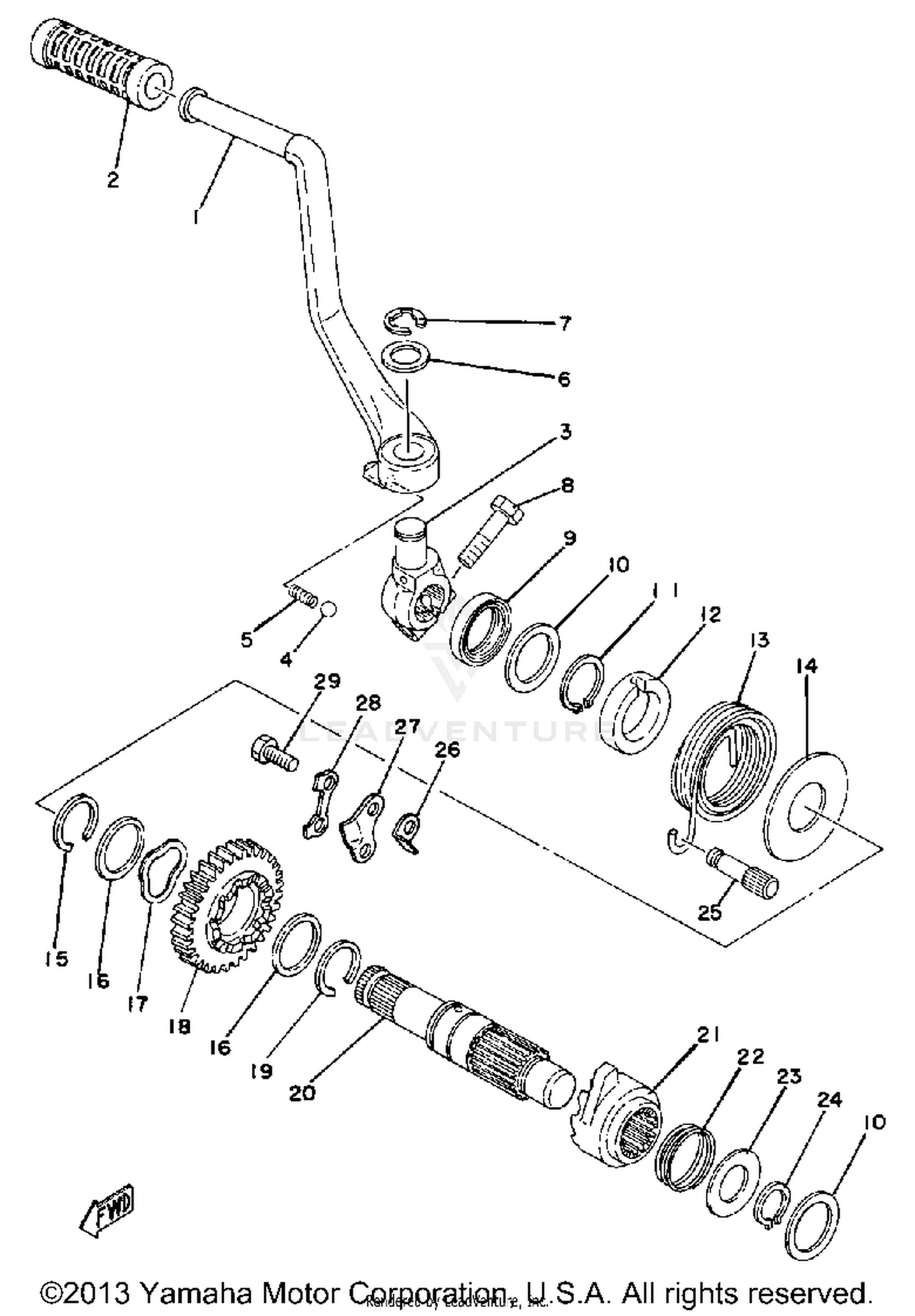

Kick - Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK CRANK ASSEMBLY
1M1-15620-02-00
|
$106.99 | ||
|
Unavailable |
|||
|
#2
COVER, KICK LEVER
156-15618-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, KICK CRANK
583-15621-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL
93507-32031-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-12081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE (1.5T)
90201-15234-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-20309-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93410-25010-00
Superseded by 99009-25400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, SPRING
1M1-15664-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#13
SPRING, TORSION
90508-32317-00
|
$5.63 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-25637-00
|
$1.38 | ||
|
Unavailable |
|||
|
#15
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, WAVE
90206-25059-00
|
$1.98 | ||
|
Unavailable |
|||
|
#18
GEAR, KICK
1W4-15641-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93440-25020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WHEEL, RATCHET
1M1-15671-00-00
|
$11.02 | ||
|
Unavailable |
|||
|
#21
WHEEL, RATCHET
1M1-15671-00-00
|
$11.02 | ||
|
Unavailable |
|||
|
#22
SPRING, COMPRESSION (363-15675-
90501-23143-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, SPRING
363-15676-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
STOPPER
1M1-15668-01-00
|
$2.97 | ||
|
Unavailable |
|||
|
#26
STOPPER
1W4-15668-00-00
|
$1.38 | ||
|
Unavailable |
|||
|
#27
GUIDE, RATCHET WHL
1W4-15674-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#28
WASHER, LOCK
1W4-15686-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#29
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
