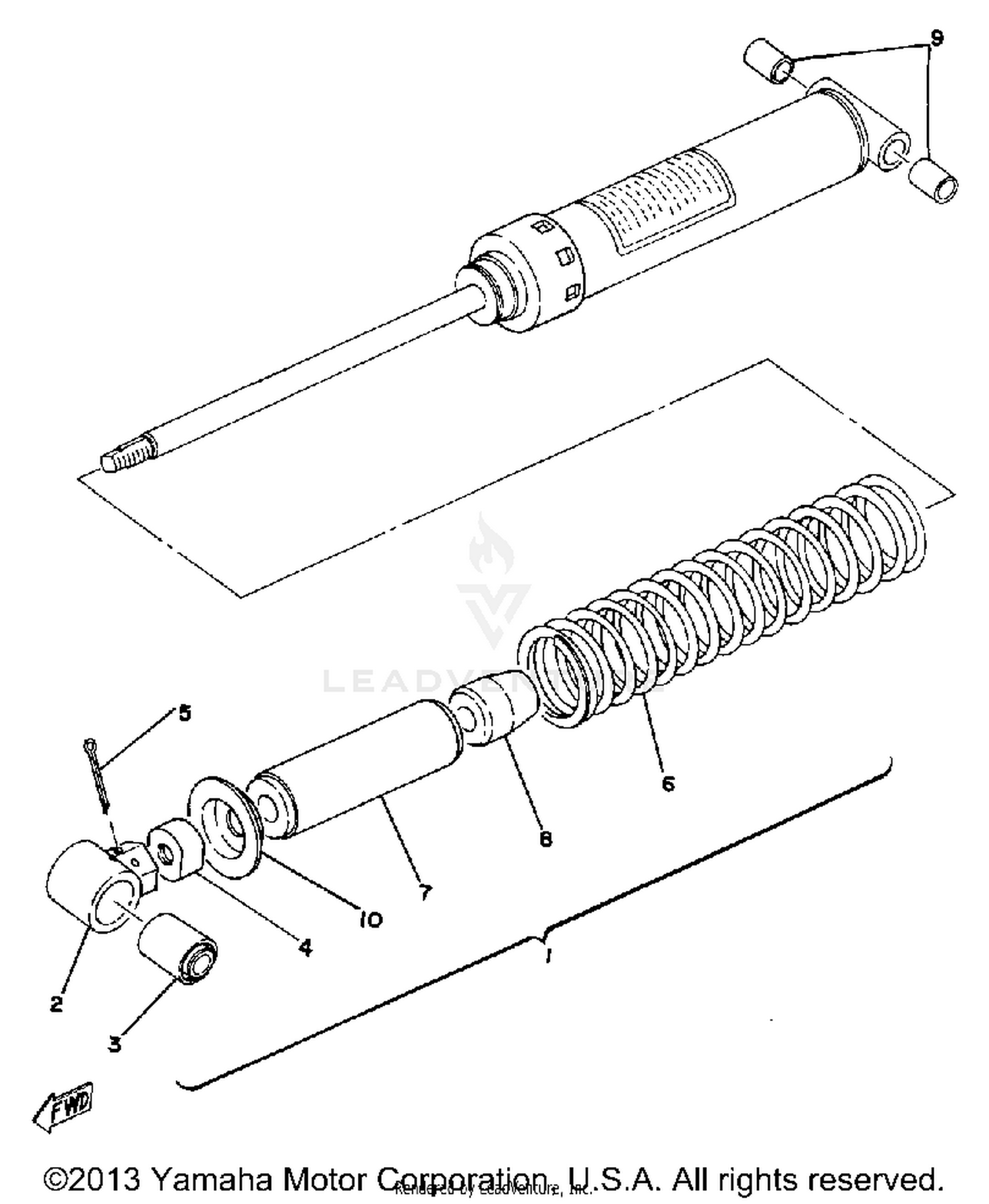

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
2N6-22210-00-00
|
$234.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, UPPER
1M1-22219-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#3
BUSH, REAR SHOCK ABSORBER
1M1-22216-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING UPPER
2N4-22213-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#5
PIN, COTTER
91401-30040-00
Superseded by 91490-30045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-90536-00
|
$28.30 | ||
|
Unavailable |
|||
|
#7
SLEEVE, ROD
2N4-22496-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#8
BUMP, STOP
2A6-22493-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#9
BUSH, SOLID
90380-12051-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SPRING 1
2N4-22214-00-00
|
$1.98 | ||
|
Unavailable |
|||
